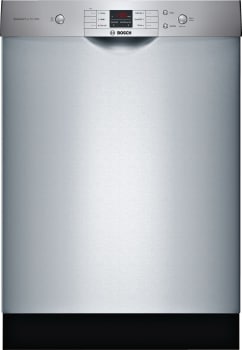

BOSCH 100 Series Built In Dishwasher - SHEM3AY55N
Model: SHEM3AY55N- Description
- Features
- Specifications
-
Bosch dishwashers incorporate 18 unique sound-reducing technologies, to make Bosch the quietest dishwasher brand. 24/7 Overflow Protection System® helps prevent water leaks.
-
Design
Stainless Steel TallTub w/ *PP
Silver Colored Fascia in Stainless Steel
Performance
6 Wash Cycles and 2 Options
Sanitize Option eliminates bacteria and enhances drying results
Variable Spray Pressure
Efficiency
269 kWh/yr - Energy Star®
Exceeds ENERGY STAR Requirements for Water by 69%
EcoSense™ Reduces Energy Usage by up to 20%
Convenience
Bosch Exclusive 24/7 Overflow Leak Protection
Electronic delay timer: 1-24 hours Delay Start Timer
SpeedCycle
Capacity
14 Place Setting Capacity
300 Series Racks
Manual Height Adjustment for Upper Rack
Long Silverware Basket
-
General
Width of the product (mm)- 598
Height of the product (mm)- 860
Installation Type- Built-under
Number of place settings- 14
List of programmes- 1 Hour, Auto, Delicate/Economy Wash, Power Scrub Plus, Regular, Rinse & Hold
Cycle Options- Sanitation
Display
Silence level (dBA)- 50
3rd Rack- None
Interior light
Removable top
Power cord length (cm)- 170
Power cord length (in)- 67"
Construction type
Color / Material housing- Lacquered
Color / Control Panel- White
Construction type- Built-in
Panel ready- Not possible
Drying system- Inherent heat
Height of the product (mm)- 860
Concealed heating element
Installation Type- Built-under
Tub material- Plastic
Water softener
Width of the product (mm)- 598
Size and weight
Overall appliance dimensions (HxWxD) (mm)- 860 x 598 x 573
Overall appliance dimensions (HxWxD) (in)- 33 7/8'' x 23 9/16'' x 22 9/16''
Adjustable plinth- both horizontal and vertical
Net weight (kg)- 31.500
Net weight (lbs)- 69.000
Connectivity
Home Connect
Connectivity type Not applicable
Programmes
Status indicator- sanitized LED US, Time remaining indicator front
List of programmes- 1 Hour, Auto, Delicate/Economy Wash, Power Scrub Plus, Regular, Rinse & Hold
Program 1- Power Scrub Plus
Program 2- Auto
Program 3- Regular
Program 4- Delicate/Economy Wash
Program 6- Rinse & Hold
Programme duration, programme1 (min.)- 110-130
Programme duration, programme2 (min.)- 115-130
Programme duration, programme3 (min.)- 130-135
Programme duration, programme4 (min.)- 80-85
Programme duration, programme5 (min.)- 60
Programme duration, programme6 (min.)- 9
Reference programme Regular US
Number of different wash temperatures- 6
Temperature, programme 1 (°C)- 66-71
Temperature, programme 2 (°C)- 52-55
Temperature, programme 3 (°C)- 50-55
Temperature, programme 4 (°C)- 45-50
Temperature, programme 5 (°C)- 53
Safety
Glass protection
Surge-back protect. installed
Leak protection system Total system
Consumption values
Glass protection
Water consumption, programme 1 (l)- 21.5-27.7
Water consumption, programme 2 (l)- 14.4-24.5
Water consumption, programme 3 (l)- 11.3-21.5
Water consumption, programme 4 (l)- 11.2-16.5
Water consumption, programme 5 (l)- 17
Water consumption, programme 6 (l)- 4.3
Maximum temperature for water intake (°C)- 50
Connection
Watts (W)- 1,440
Power cord length (cm)- 170
Power cord length (in)- 67"
Current (A)- 12
Plug type- Nema5-15P
Consumption values
Glass protection
Water consumption program 1- 5.7-7.3
Water consumption program 2- 3.8-6.5
Water consumption program 3- 3-5.7
Water consumption program 4- 3-4.4
Water consumption program 5- 4.5
Water consumption program 6- 1.1
Total annual water consumption (g)- 688
Maximum temperature for water intake (°C)- 50
