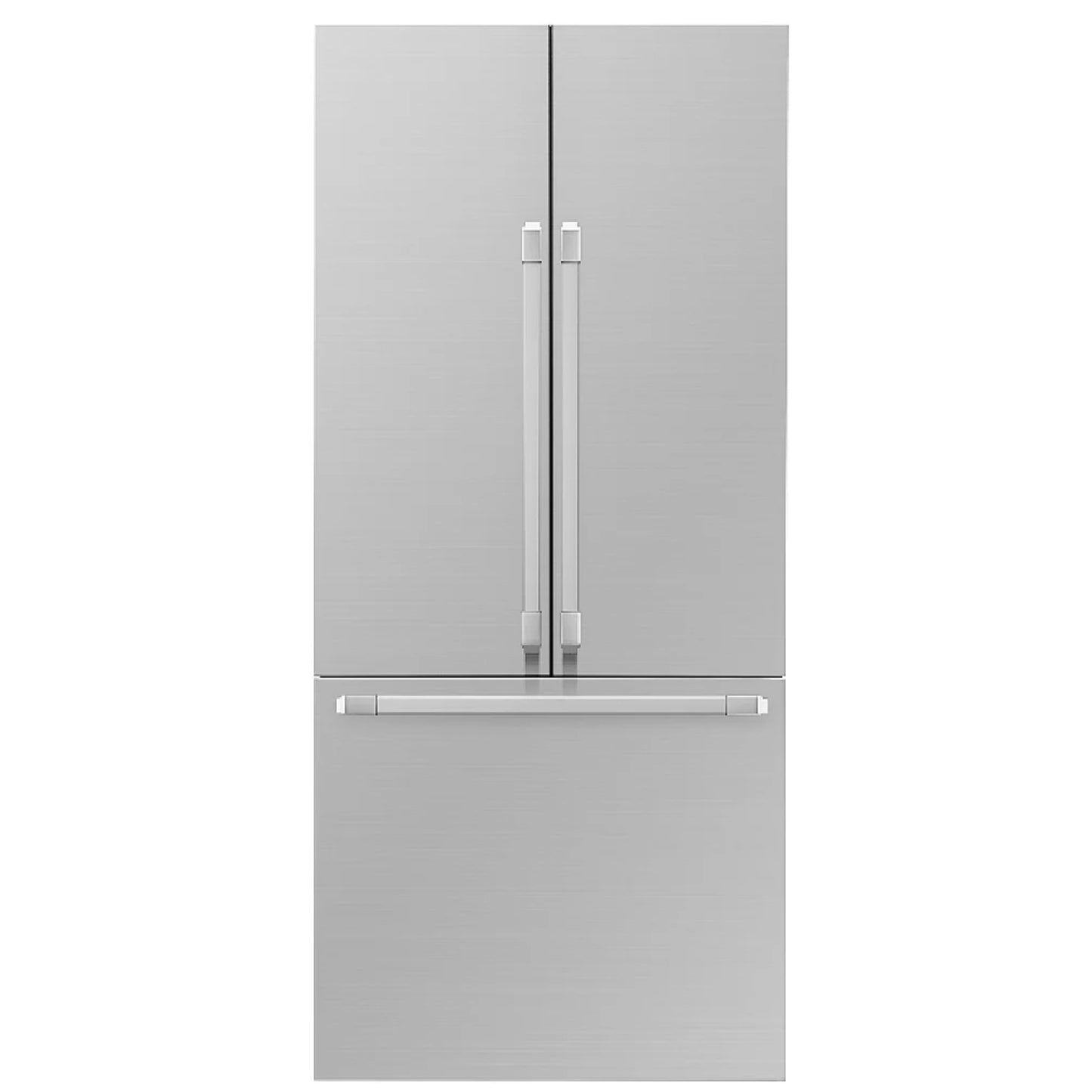

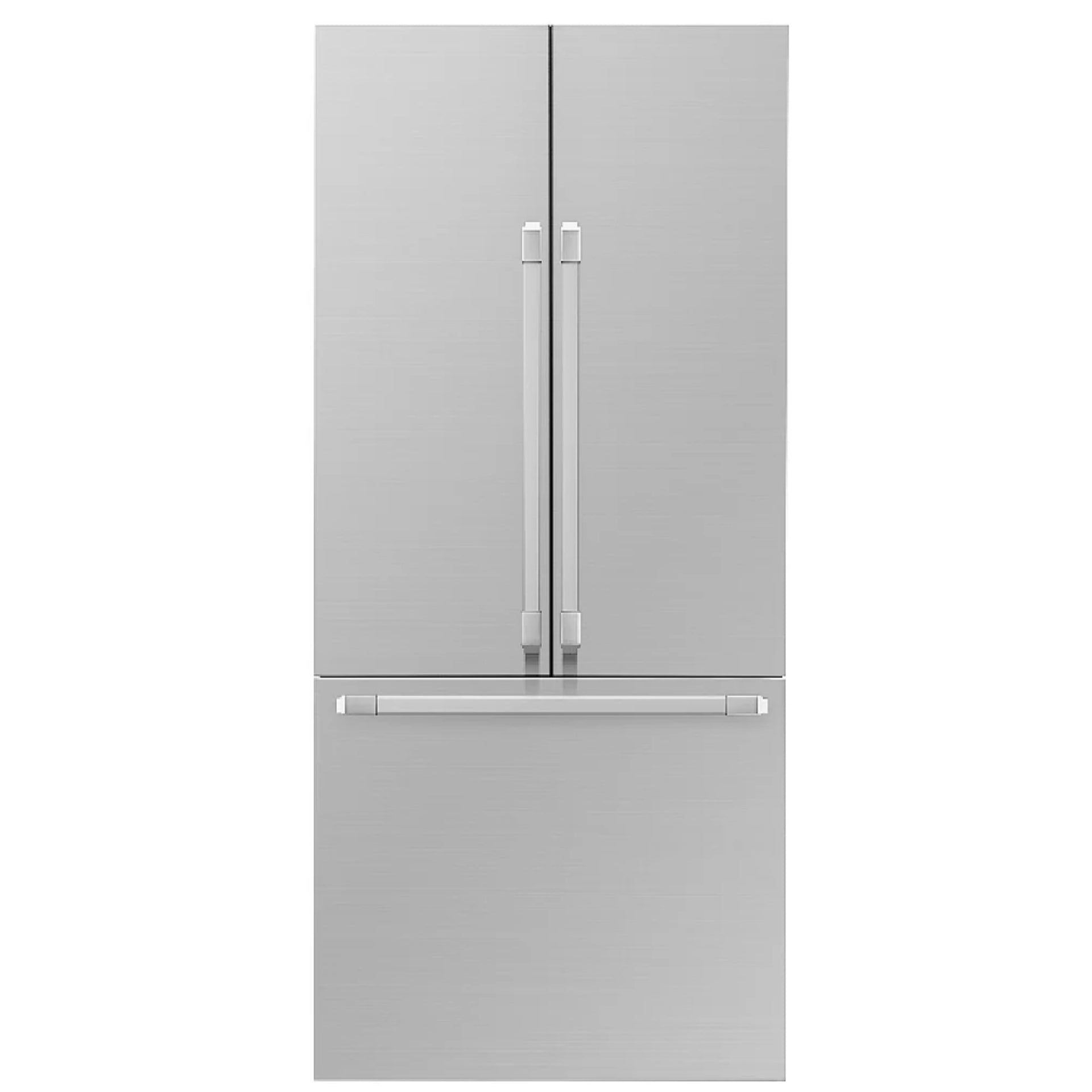

The Dacor DRF367500AP is a premium 36-inch built-in French door refrigerator designed to blend seamlessly with custom kitchen cabinetry. Its panel-ready exterior allows you to match the refrigerator doors with surrounding cabinets for a clean, fully integrated appearance.
Offering 21.3 cu. ft. of total capacity, this refrigerator provides generous storage for fresh and frozen food while maintaining a streamlined counter-depth profile. The luxurious SteelCool™ stainless steel interior, seamless 3D LED lighting and flexible shelving create an elegant and highly functional food-storage environment.
A full-width FreshZone™ drawer offers three selectable temperature settings for storing meat, fish, chilled beverages, cheese and deli items. Dual ice makers produce both standard ice cubes and oversized Cocktail Ice™, while the internal filtered-water dispenser provides convenient access to fresh water without interrupting the exterior design.
Precise Cooling Technology helps maintain consistent temperatures throughout the refrigerator. Built-in Wi-Fi and SmartThings® compatibility allow you to monitor temperatures, check water-filter status, manage ice-making functions and run appliance diagnostics from a compatible mobile device.
Key Features
Panel-Ready Built-In Design
The custom panel-ready exterior allows the refrigerator to coordinate with your kitchen cabinetry for a seamless, high-end built-in appearance. Decorative panels, handles and kick plates may be sold separately.
SteelCool™ Stainless Steel Interior
The refrigerator compartment features a premium stainless steel interior that provides an elegant appearance, enhanced durability and a professional kitchen feel.
Seamless 3D LED Lighting
Integrated LED lighting illuminates the refrigerator from multiple directions, helping you easily see stored ingredients while creating a bright and luxurious interior.

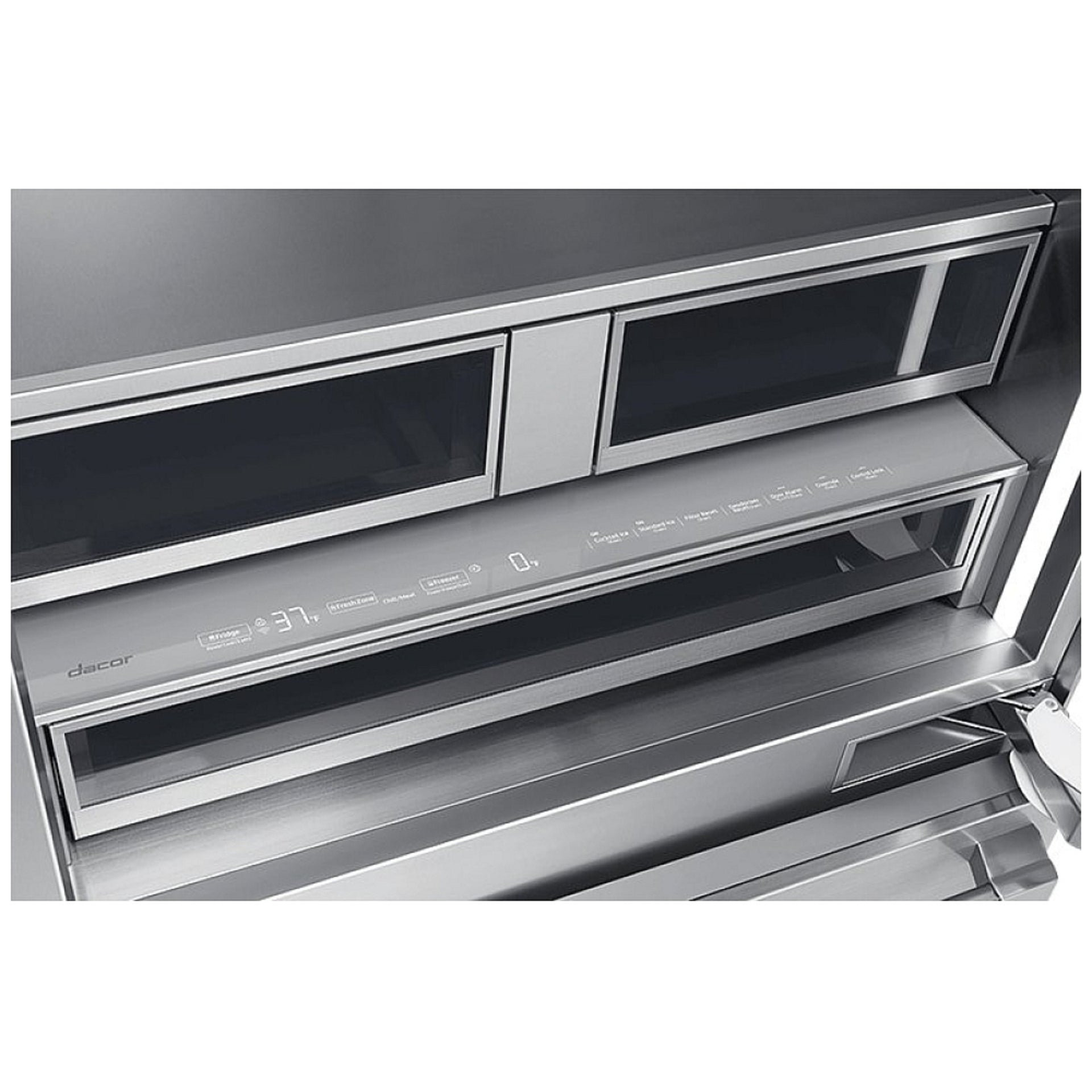

FreshZone™ Full-Width Drawer
The independently controlled FreshZone™ drawer offers three temperature settings for different types of food.
3°C / 37°F for cheese and deli products
1°C / 33°F for chilled beverages
-1°C / 29°F for meat and fish
The controlled environment can also assist with safely defrosting frozen foods.
Dual Ice Makers with Cocktail Ice™
Dual ice makers produce traditional ice cubes and oversized Cocktail Ice™. The larger ice cubes melt more slowly, making them ideal for entertaining, cocktails and premium beverages.

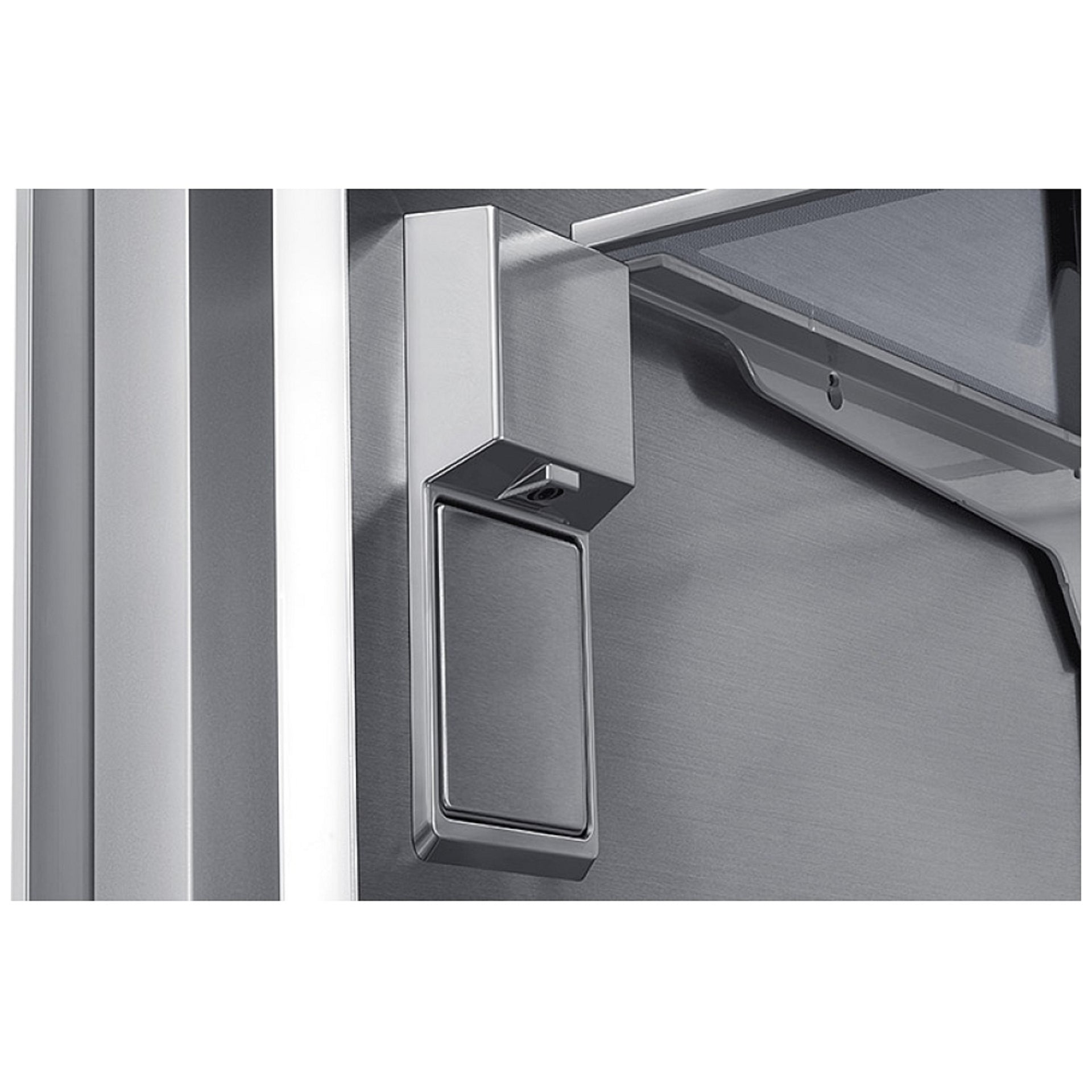

Internal Filtered-Water Dispenser
The internal water dispenser provides fresh, filtered water while preserving the clean and uninterrupted appearance of the exterior cabinetry panels.
Precise Cooling Technology
Advanced cooling technology helps maintain consistent compartment temperatures with minimal fluctuation, supporting better food preservation and freshness.
Power Cool and Power Freeze
Power Cool and Power Freeze quickly lower refrigerator or freezer temperatures after groceries are loaded or when additional cooling is required.
SmartThings® Connectivity
Built-in Wi-Fi allows you to connect the refrigerator to the SmartThings app. You can remotely monitor temperatures, manage ice-making functions, check water-filter status and access appliance diagnostics.
Hidden Touch Control Panel
The discreet touch-control panel appears when activated, providing convenient access to refrigerator settings while maintaining a clean interior design.

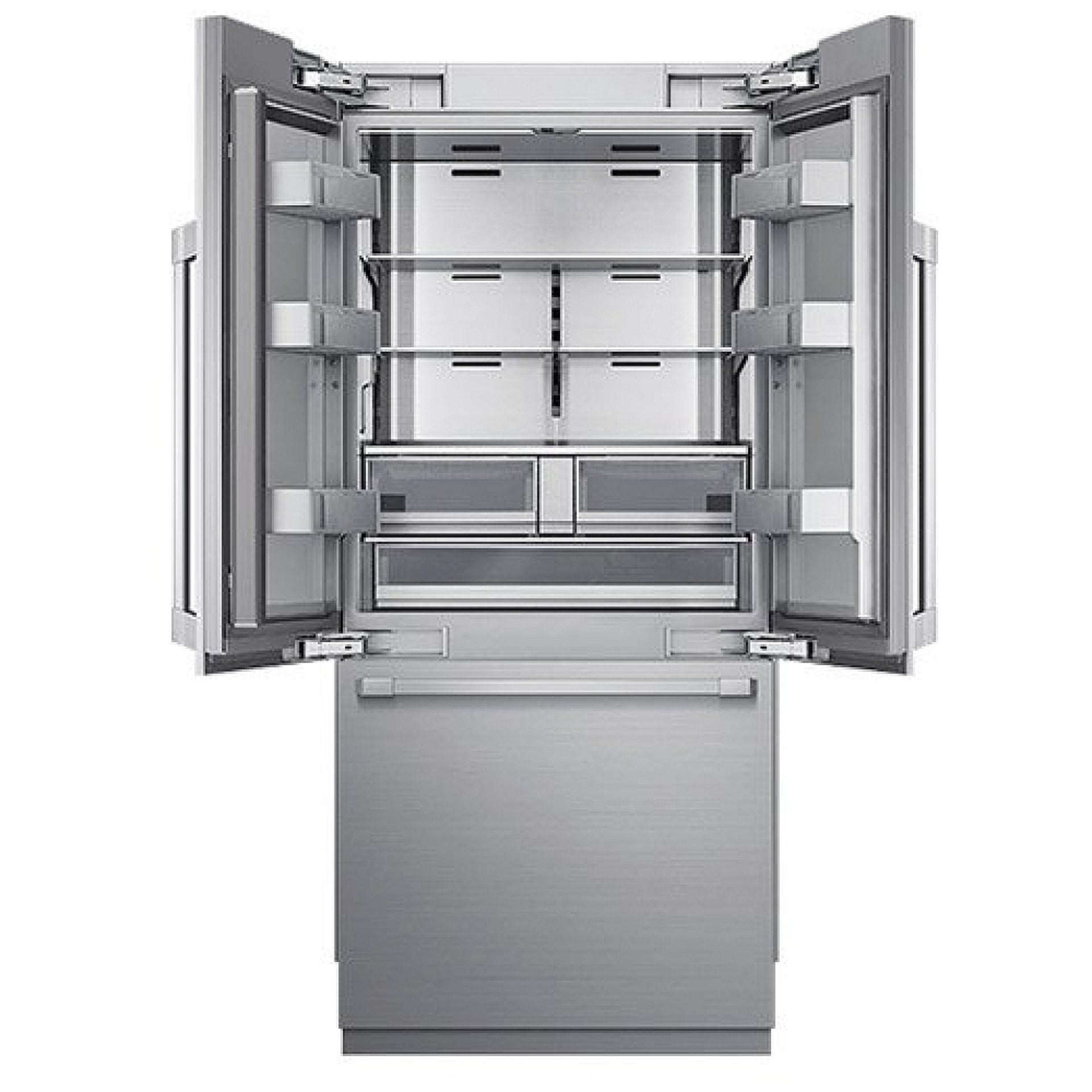

Flexible Interior Storage
Adjustable tempered-glass shelves, spacious door bins, humidity-controlled drawers and full-extension storage areas make it easy to organize groceries, beverages and large containers.
ENERGY STAR® Certified
The refrigerator is ENERGY STAR certified for energy-efficient performance without compromising premium cooling capabilities.
Specifications
Brand: Dacor
Model: DRF367500AP / DRF367500AP/DA
Product Type: Built-in French door refrigerator
Installation Type: Built-in and counter-depth
Exterior Finish: Custom panel ready
Door Configuration: Three-door French door with bottom freezer
Total Capacity: 21.3 cu. ft.
Refrigerator Capacity: 14.5 cu. ft.
Freezer Capacity: 6.8 cu. ft.
Overall Width: 35 3/4 inches
Overall Height: 83 3/8 inches
Overall Depth: Approximately 23 13/16 inches
Interior Material: SteelCool™ stainless steel
Interior Lighting: Seamless 3D LED lighting
Water Dispenser: Internal filtered-water dispenser
Ice Maker: Dual ice makers
Ice Types: Standard ice cubes and Cocktail Ice™
FreshZone™ Drawer: Full-width drawer with three temperature settings
Humidity-Controlled Drawers: Two
Door Bins: Six
Shelf Material: Tempered glass with metal trim
Full-Extension Drawers: Yes
Wi-Fi Connectivity: Yes
Smart Platform: SmartThings®
Hidden Touch Controls: Yes
Power Cool: Yes
Power Freeze: Yes
ENERGY STAR Certified: Yes
Annual Energy Consumption: Approximately 629 kWh
Electrical Requirements: 115 volts, 60 Hz, 3 amps
Manufacturer Warranty: Two years parts and labour
Temperature Ranges
Refrigerator Temperature Range: 1°C to 7°C
Power Cool Temperature: 1°C
FreshZone™ Drawer Settings: 3°C, 1°C or -1°C
Freezer Temperature Range: -15°C to -23°C
Power Freeze Temperature: -23°C
Temperature Fluctuation: Approximately ±0.5°C
Important Installation Note
This is a panel-ready refrigerator. Custom decorative panels, handles and kick plates may not be included and should be confirmed before ordering. Always refer to the official Dacor installation guide before manufacturing cabinetry or preparing the installation opening.
