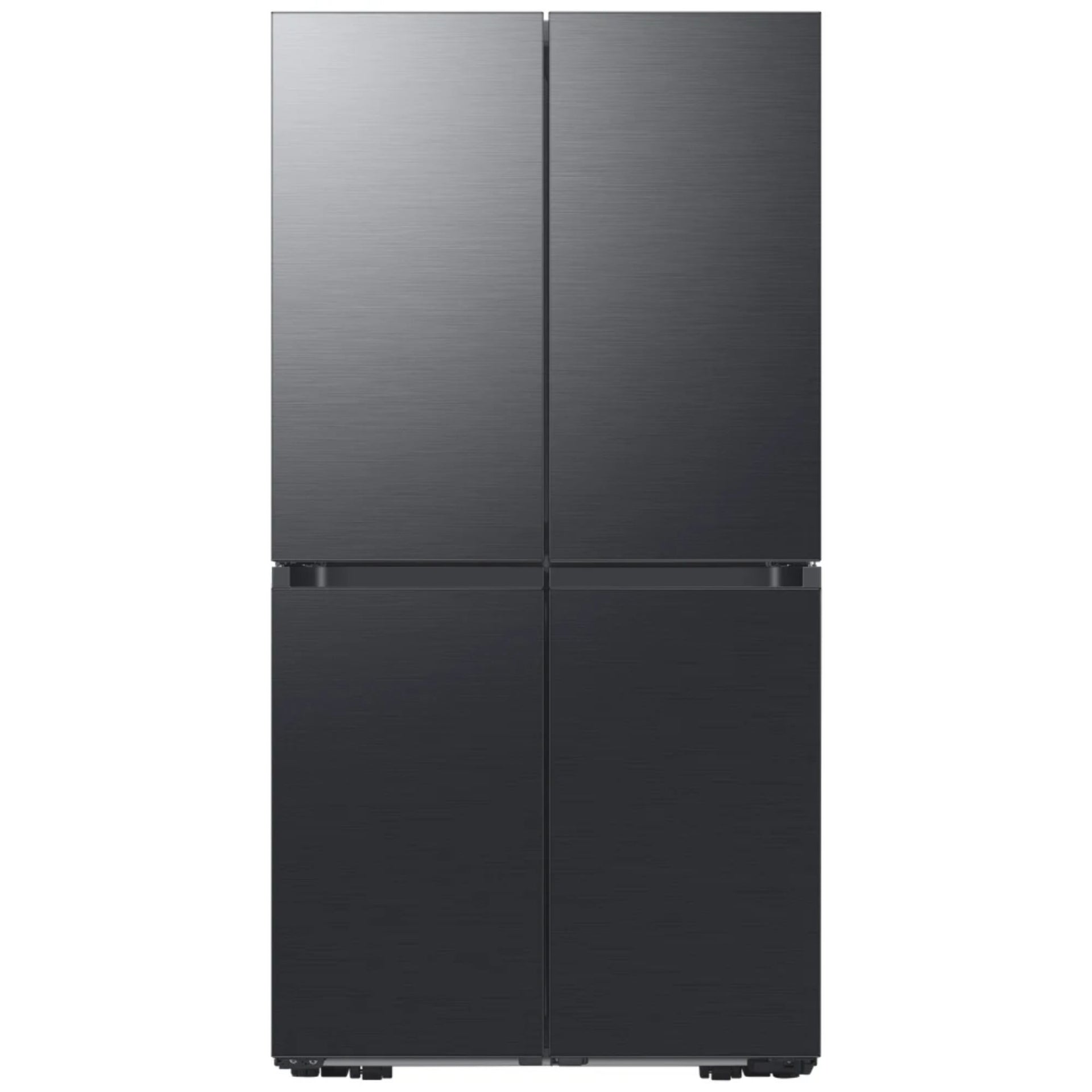

The Dacor DRF36C500MT is a premium 36-inch counter-depth French door refrigerator that combines a sleek black Stainless finish with flexible four-door food storage. Its standard 70-inch height and streamlined counter-depth profile allow it to integrate neatly into modern kitchens, while the spacious 22.8 cu. ft. interior provides dedicated refrigerator and freezer organization.
The Reveal™ Door offers convenient access to the Beverage Center™, which includes an internal filtered-water dispenser and an automatically refilling water pitcher. A Dual Icemaker produces traditional cubed ice and smaller Ice Bites™, while Wi-Fi connectivity and SmartThings® integration allow compatible remote monitoring and control.
Key Features
22.8 cu. ft. total capacity provides generous fresh- and frozen-food storage.
Counter-depth design creates a clean, integrated appearance with surrounding cabinetry.

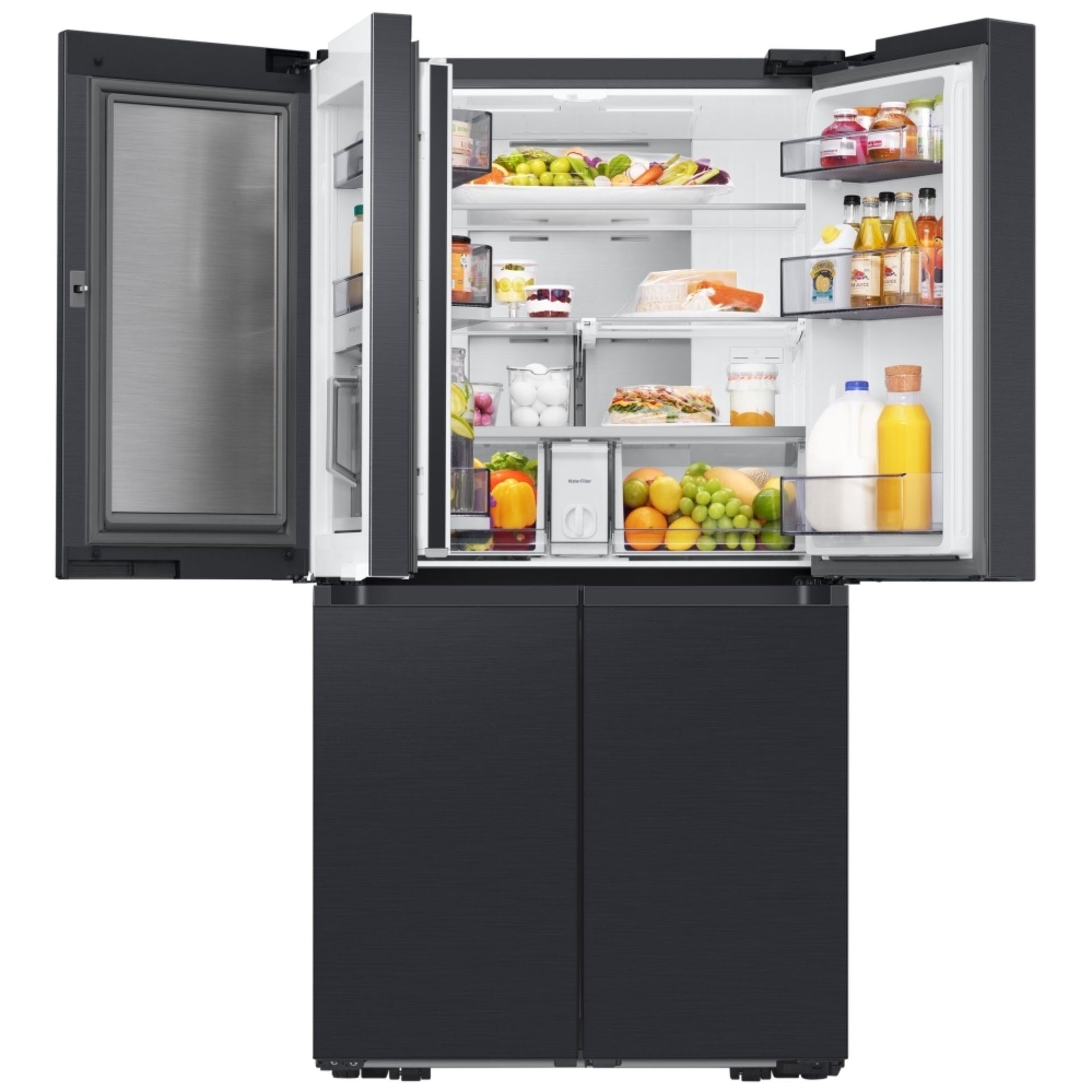

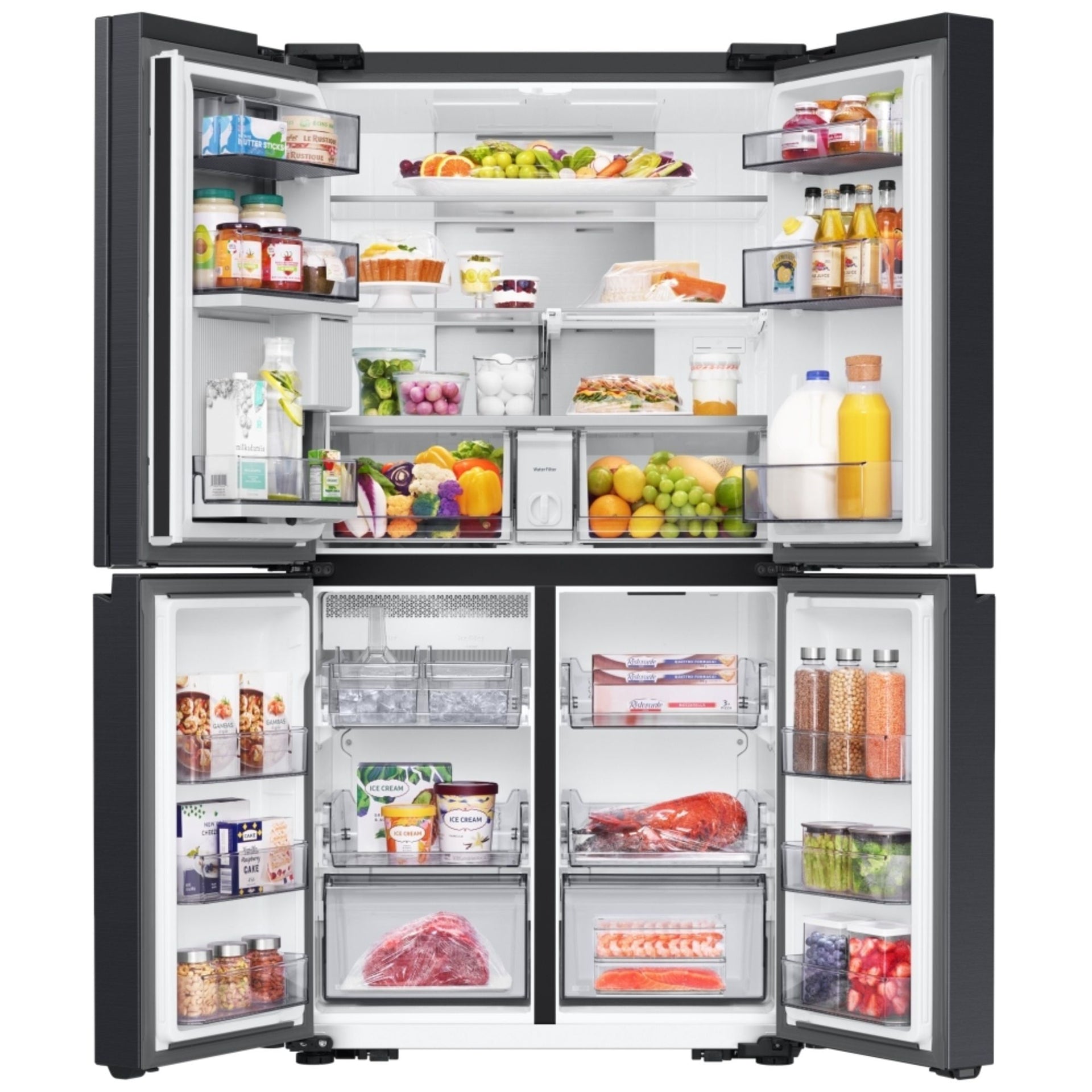

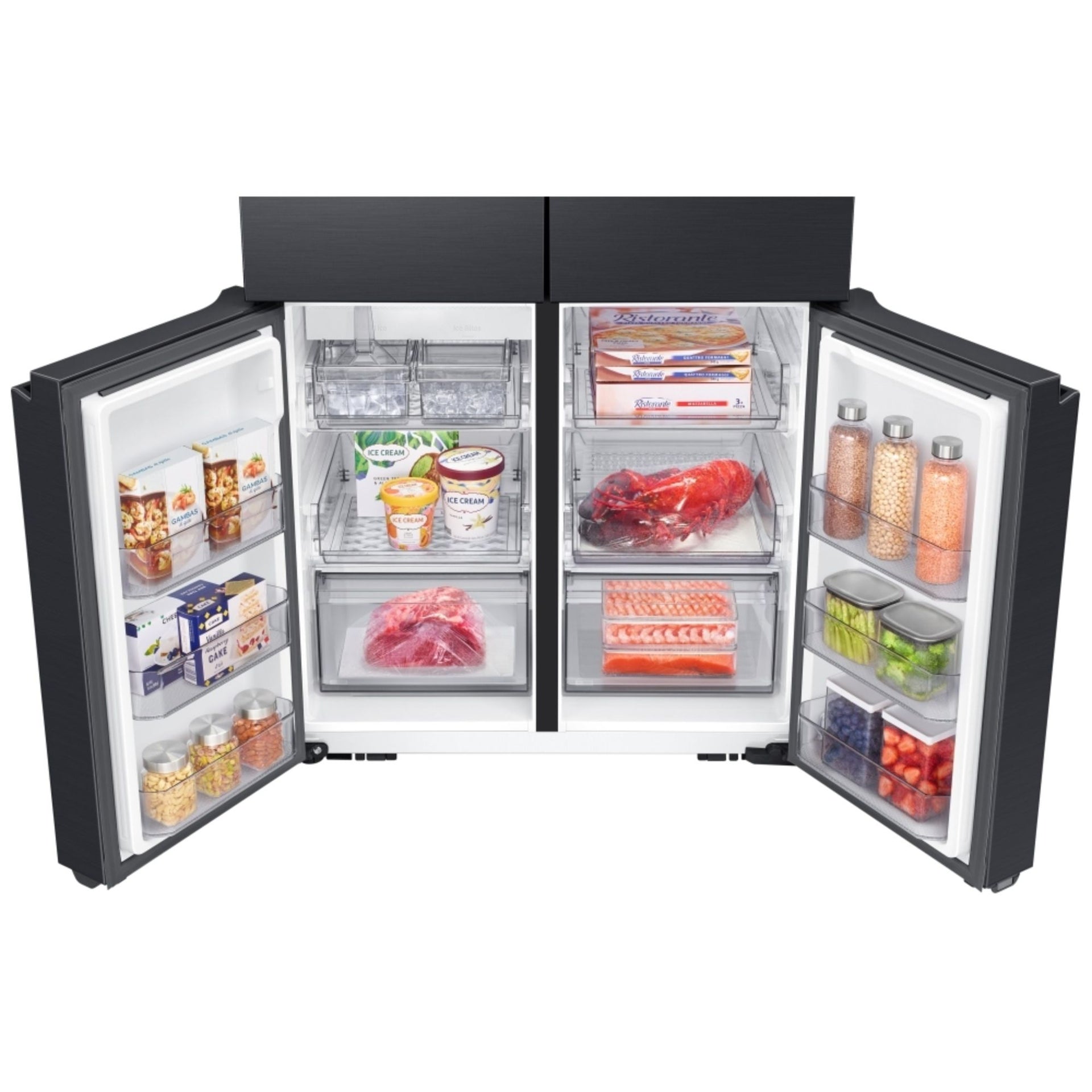

Four-door French door configuration provides flexible access and organized storage.

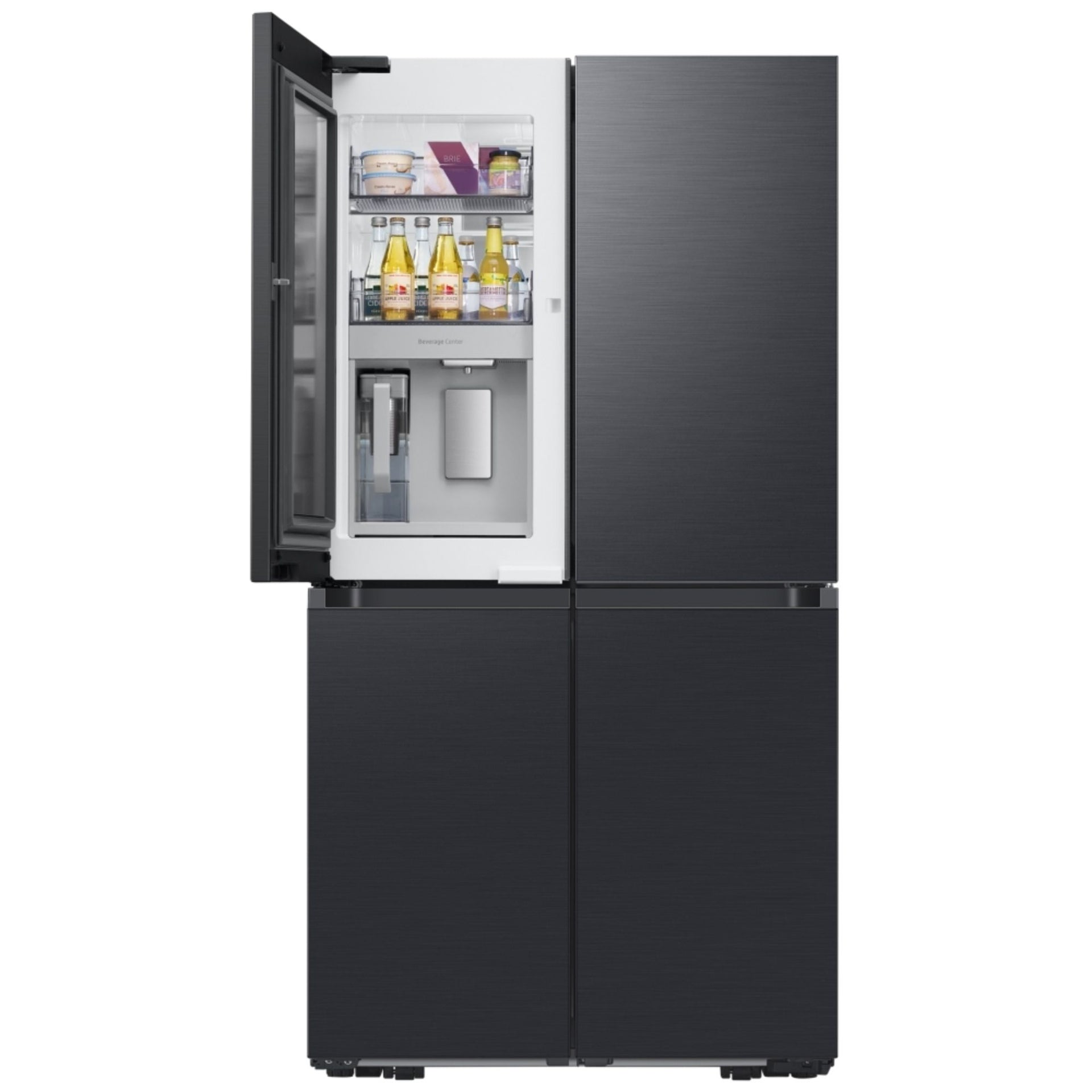

Reveal™ Door allows convenient access to frequently used beverages and the internal Beverage Center™.
Beverage Center™ includes a filtered-water dispenser and an automatically refilling pitcher that can also be used for infused water.

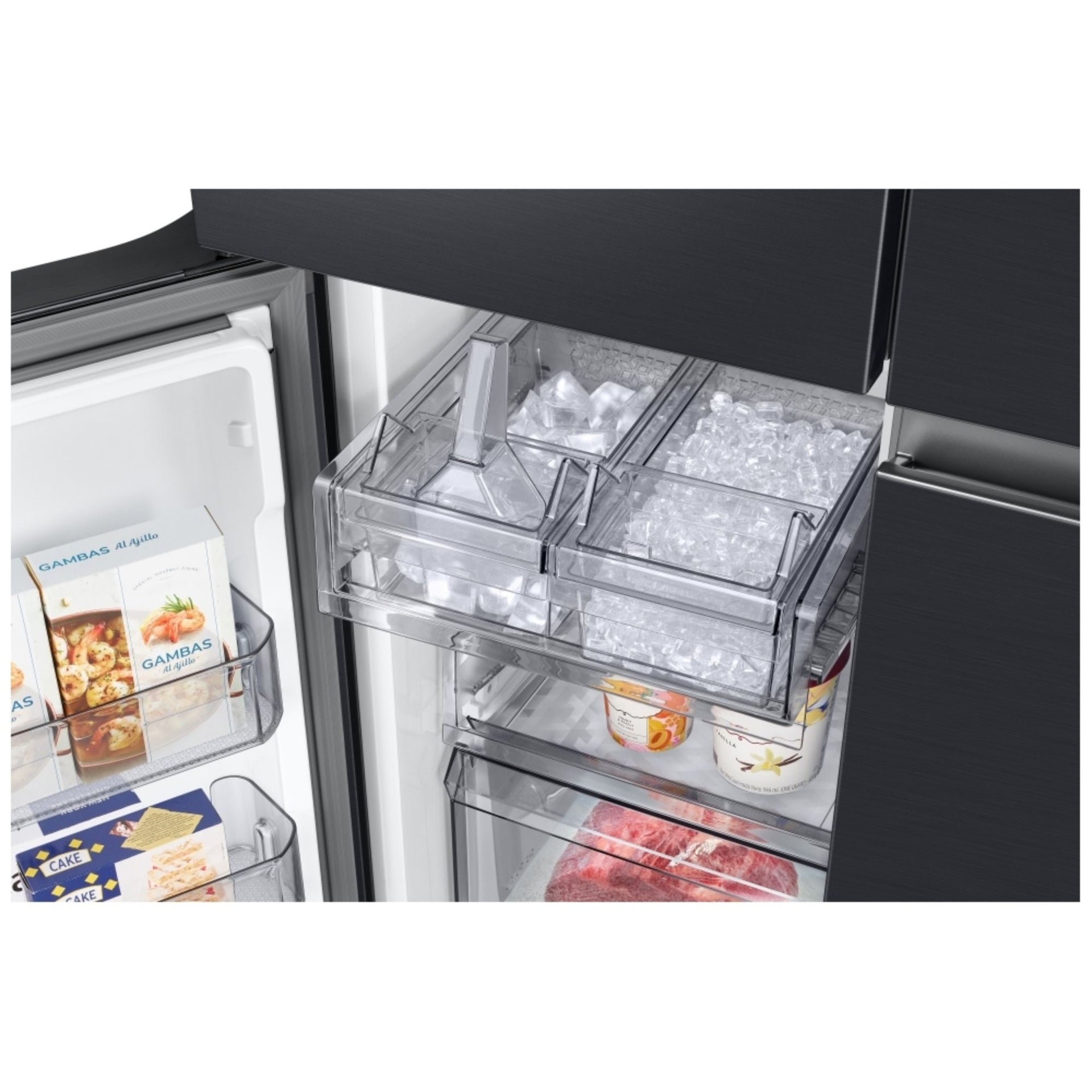

Dual Icemaker produces traditional cubed ice and smaller Ice Bites™.
High ice production: Produces up to 5.7 lb. of ice per day and stores up to 7.7 lb. in the dual ice bins.

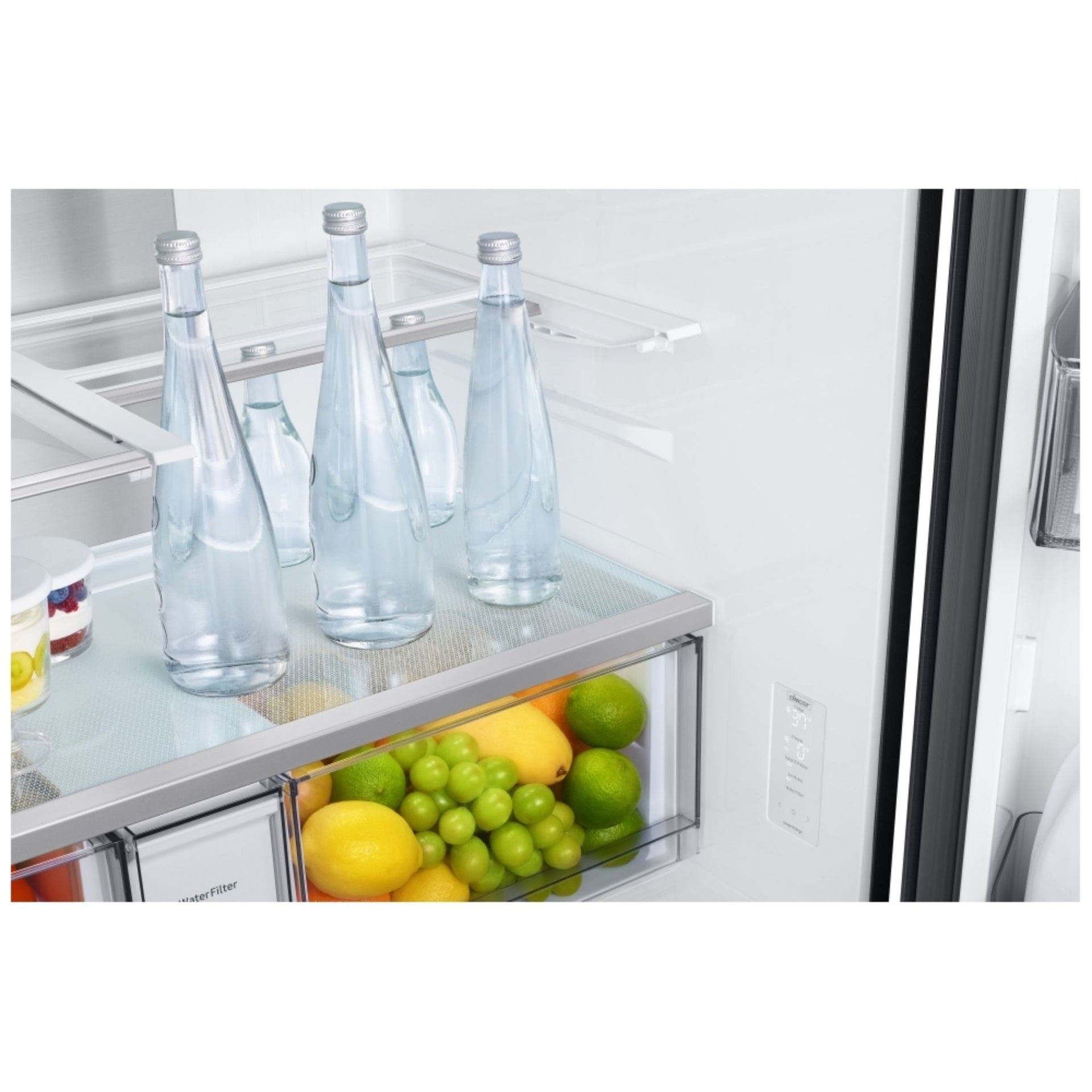

Metal Cooling™ stainless steel interior paneling helps maintain a consistent interior temperature.
Precise Cooling technology uses a digital inverter compressor to help minimize temperature fluctuations.

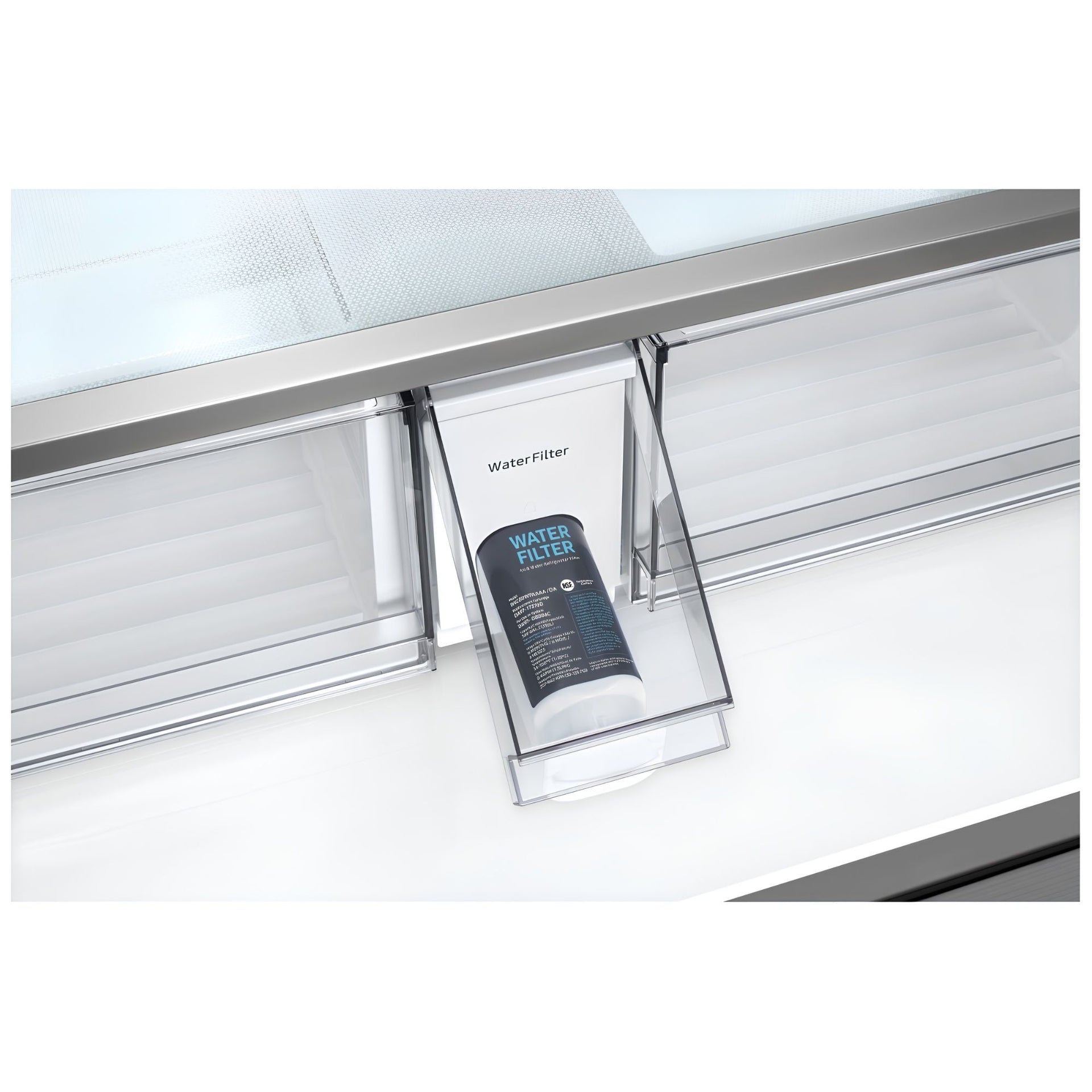

Wi-Fi and SmartThings® connectivity provide remote temperature monitoring, water-filter information, diagnostics and ice-making controls.
Power Cool and Power Freeze quickly lower compartment temperatures when additional cooling is required.
LED interior lighting provides clear visibility throughout the refrigerator.
ENERGY STAR® certified for energy-efficient operation.
Sabbath Mode accommodates specific religious observances.
Specifications
Model: DRF36C500SR/DA
Appliance Type: Counter-depth French door refrigerator
Door Configuration: Four doors
Finish: Silver Stainless
Installation Type: Freestanding, counter-depth
Total Capacity: 22.8 cu. ft.
Refrigerator Capacity: 13.7 cu. ft.
Freezer Capacity: 9.1 cu. ft.
Water Dispenser: Internal, located in the left-door Beverage Center™
Water Pitcher: Internal automatic-refill pitcher
Ice Maker: Dual automatic ice maker
Ice Types: Cubed ice and Ice Bites™
Refrigerator Shelves: 4

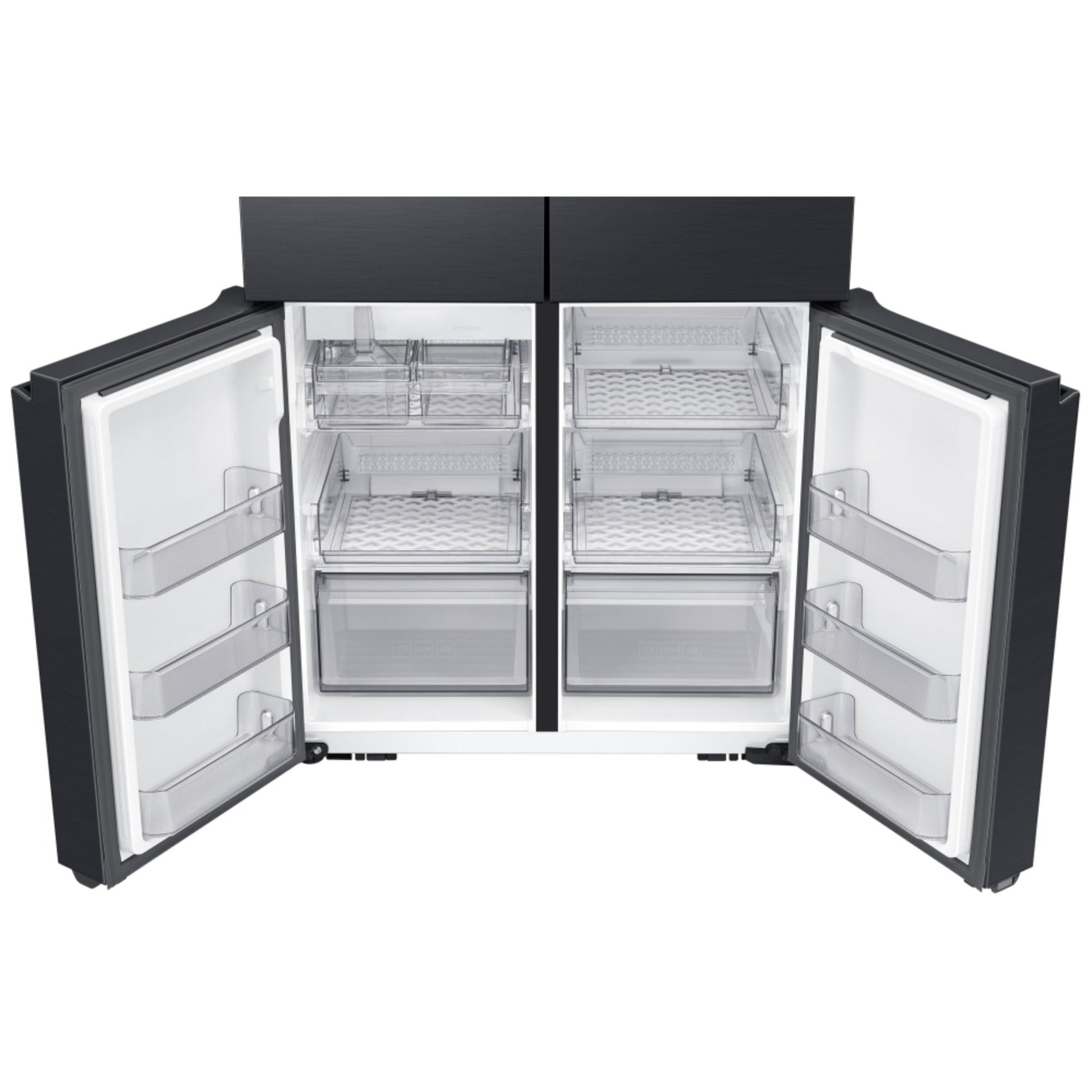

Freezer Shelves: 4
Refrigerator Door Bins: 6
Freezer Door Bins: 6

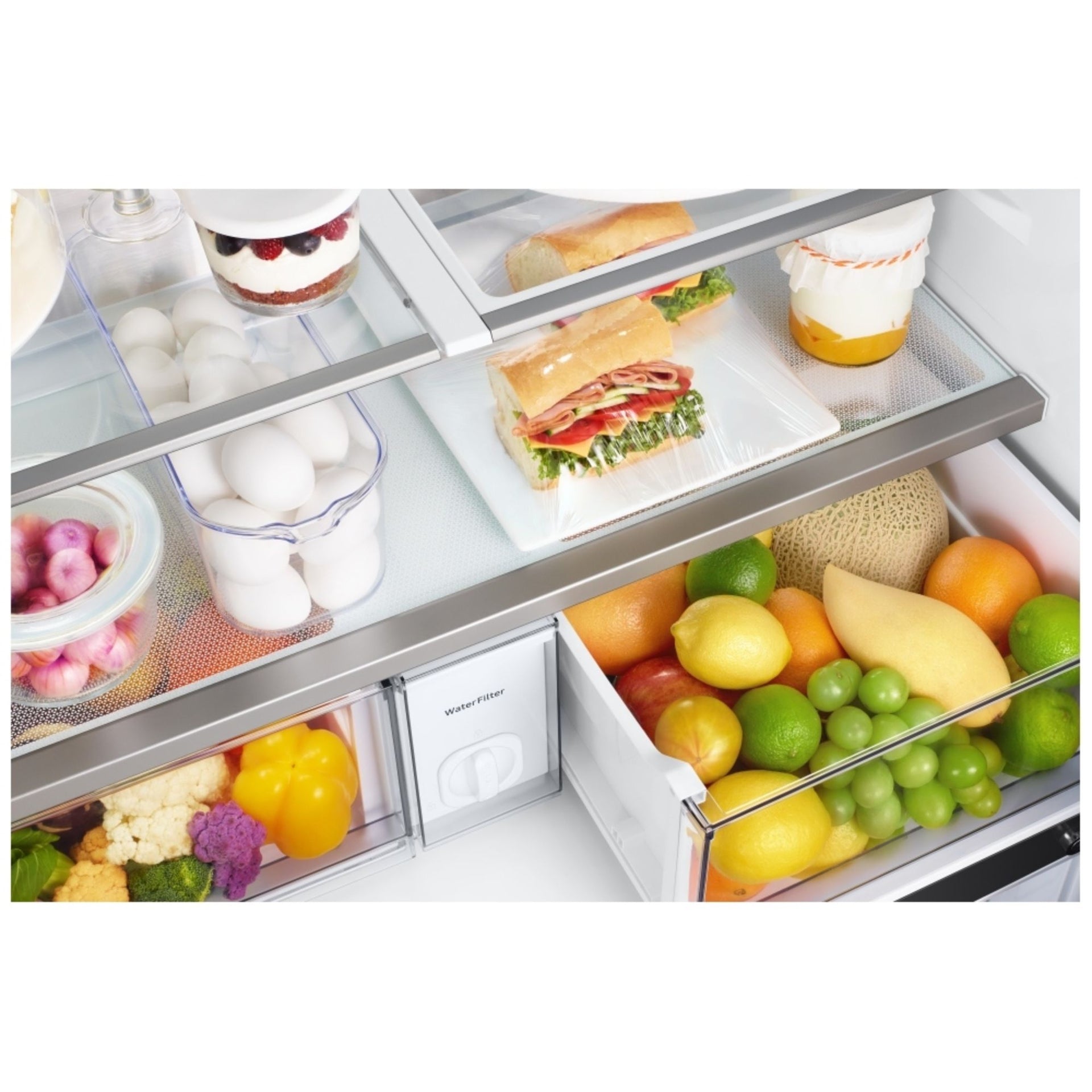

Crisper Drawers: 2
Freezer Drawers: 2
Interior Cooling Panel: Metal Cooling™ stainless steel back wall
Control Type: Digital interior controls
Smart Connectivity: Wi-Fi and SmartThings®
Door Alarm: Yes
LED Lighting: Yes
Sabbath Mode: Yes
Compressor: Digital inverter compressor
Refrigerant: R600a
ENERGY STAR® Certified: Yes
Electrical Requirements: 115–120V, 60Hz, 10A
Standard Warranty: 2 years parts and labour.
Temperature Ranges
Refrigerator: 34°F to 44°F / 1°C to 7°C
Power Cool: 34°F / 1°C
Freezer: −8°F to 5°F / −23°C to −15°C
Power Freeze: −8°F / −23°C.
Dimensions and Weight
Overall Width: 35-7/8"
Overall Height: 70"
Overall Depth: 28-1/2"
Cabinet Height: 68-7/8"
Depth with Doors Open 90 Degrees: 43"
Required Width with Doors Fully Open: Approximately 58"
Net Weight: 295 lb.
Shipping Weight: 315 lb.
Installation clearances, doorway access, electrical requirements and water-line placement should be confirmed using Dacor’s installation guide before delivery.
