Dacor DRR24980RAP 24-Inch Built-In Column Refrigerator – Panel Ready, Right Hinge

Create a sophisticated, fully integrated kitchen with the Dacor DRR24980RAP 24-Inch Built-In Column Refrigerator. Its panel-ready exterior accepts custom cabinetry panels, allowing the refrigerator to blend seamlessly with surrounding kitchen cabinets.

This right-hinged refrigerator column provides 13.7 cu. ft. of dedicated fresh-food storage. A fully wrapped stainless steel interior, expansive 3D LED lighting and premium glass-and-metal storage components create an elegant environment for organizing and displaying food.

PreciseCooling™ technology helps maintain stable temperatures, while the FreshZone™ drawer, humidity-controlled storage, internal filtered-water dispenser and smart remote-view capabilities support convenient everyday food preservation.

Key Features

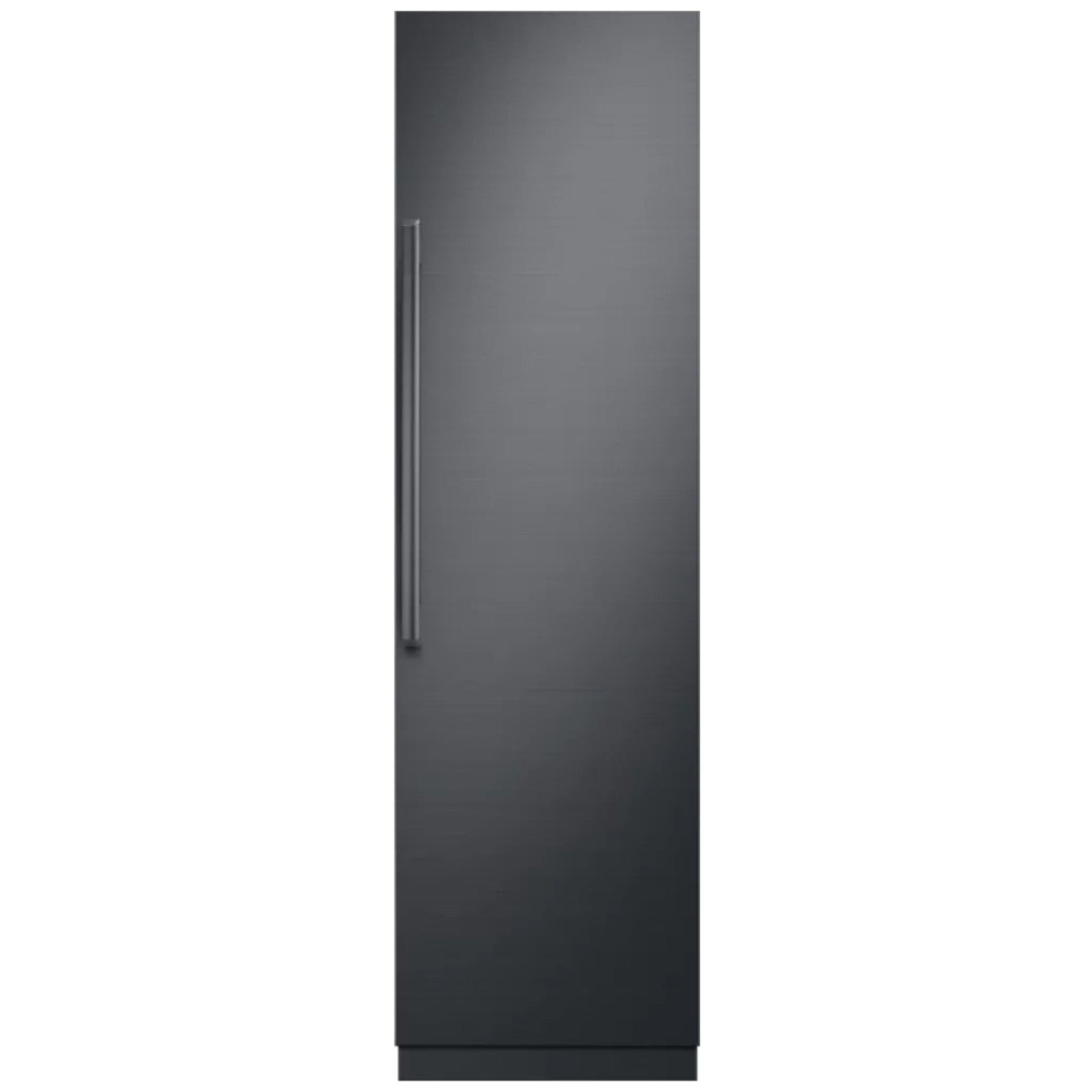

Panel-Ready Built-In Design

Designed to accept a custom cabinetry panel for a seamless, furniture-style kitchen installation.

Right-Hinged Door

The door is hinged on the right and opens from the left, making this configuration ideal for specific kitchen layouts or pairing with a compatible left-hinged refrigerator, freezer or wine column.

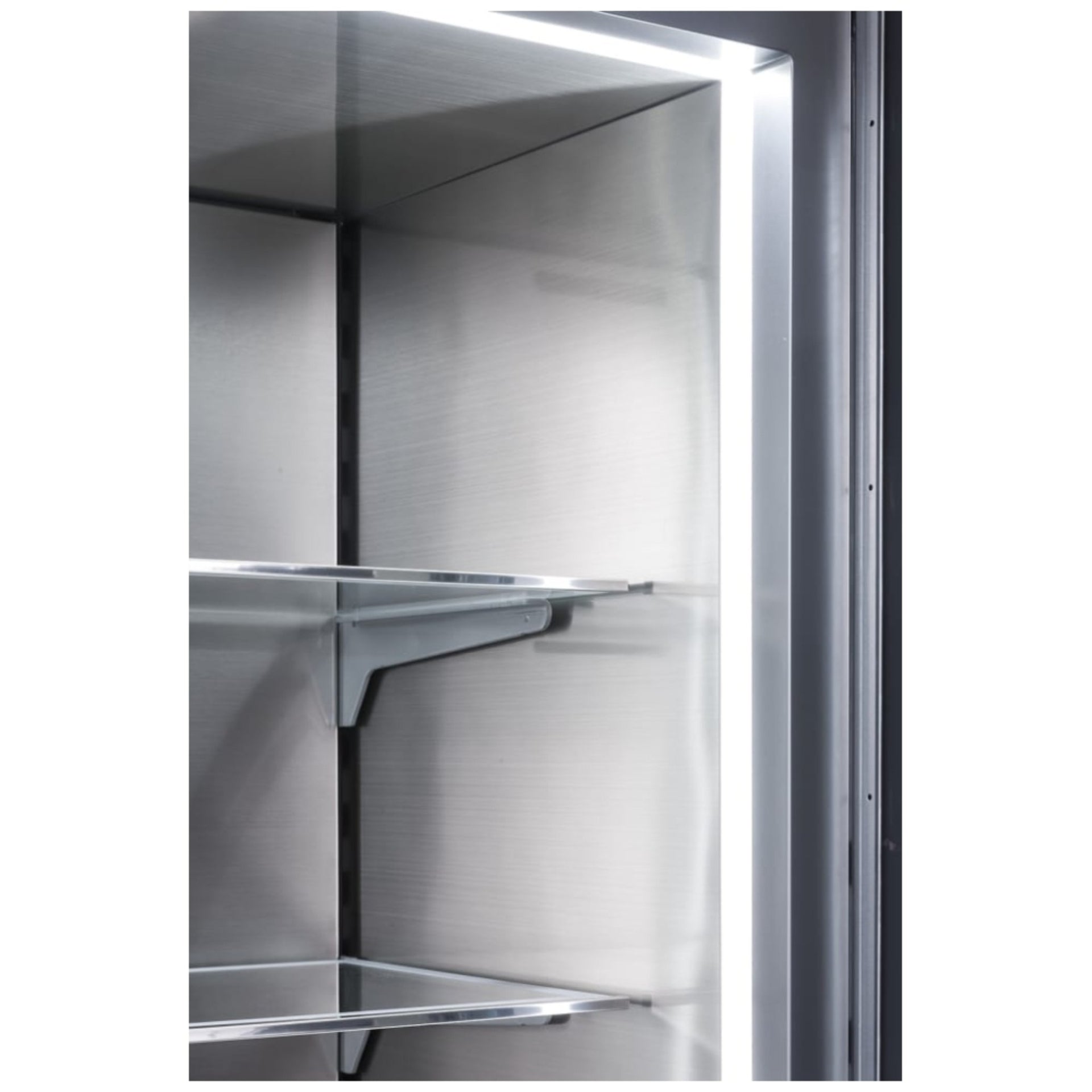

SteelCool™ Interior with 3D Lighting

Integrated LED lighting illuminates the fully wrapped stainless steel interior, making food and beverages easy to see while delivering a premium appearance.

PreciseCooling™ Technology

Digital Inverter Technology helps maintain consistent cooling performance with temperature fluctuations of approximately ±0.5°C.

FreshZone™ Drawer

A dedicated temperature-controlled drawer provides three settings for different types of food and beverages:

• Cheese: 3°C
• Cold drinks: 1°C
• Meat: -1°C

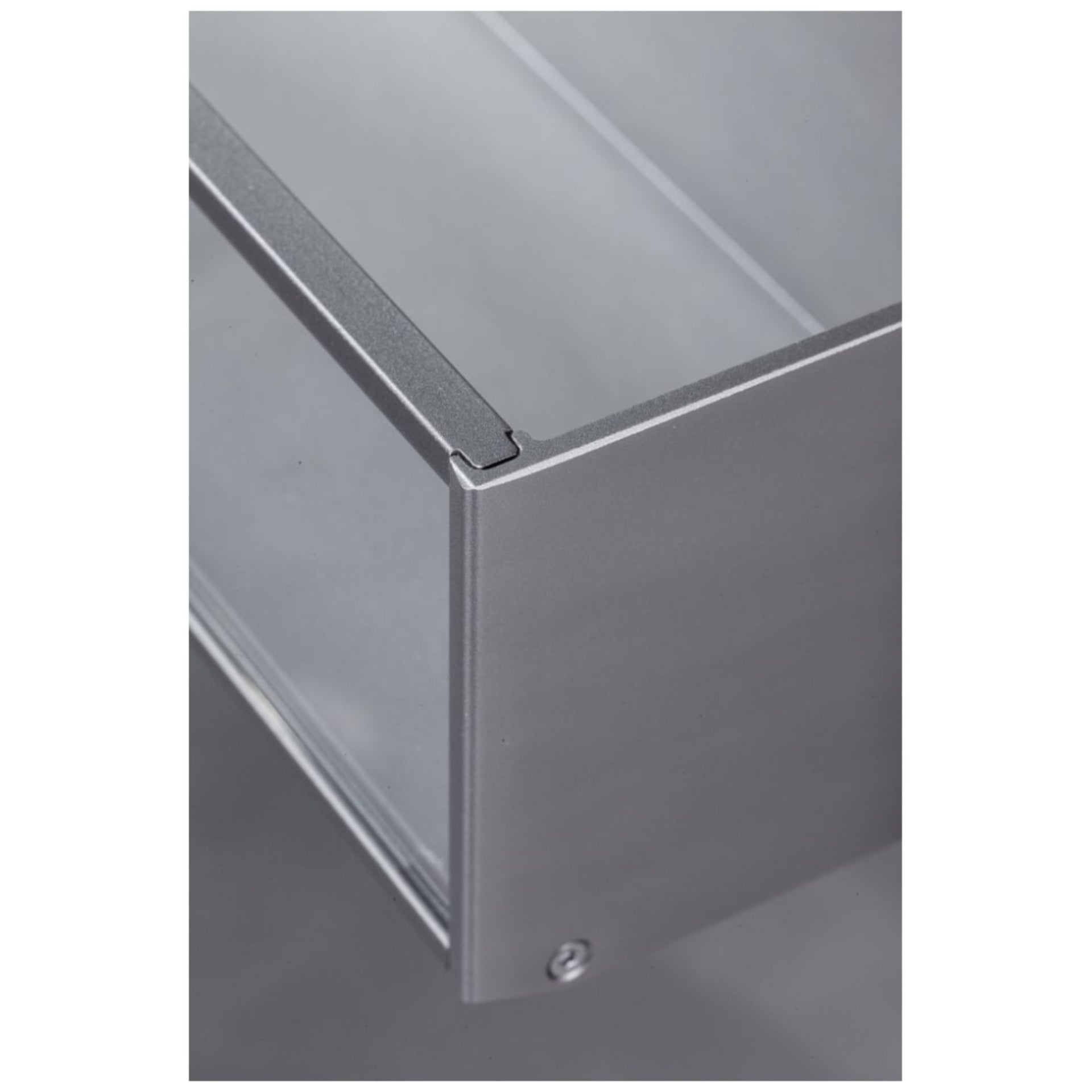

Humidity-Controlled Storage

Two humidity-controlled drawers help create suitable storage environments for fruits, vegetables and other fresh foods.

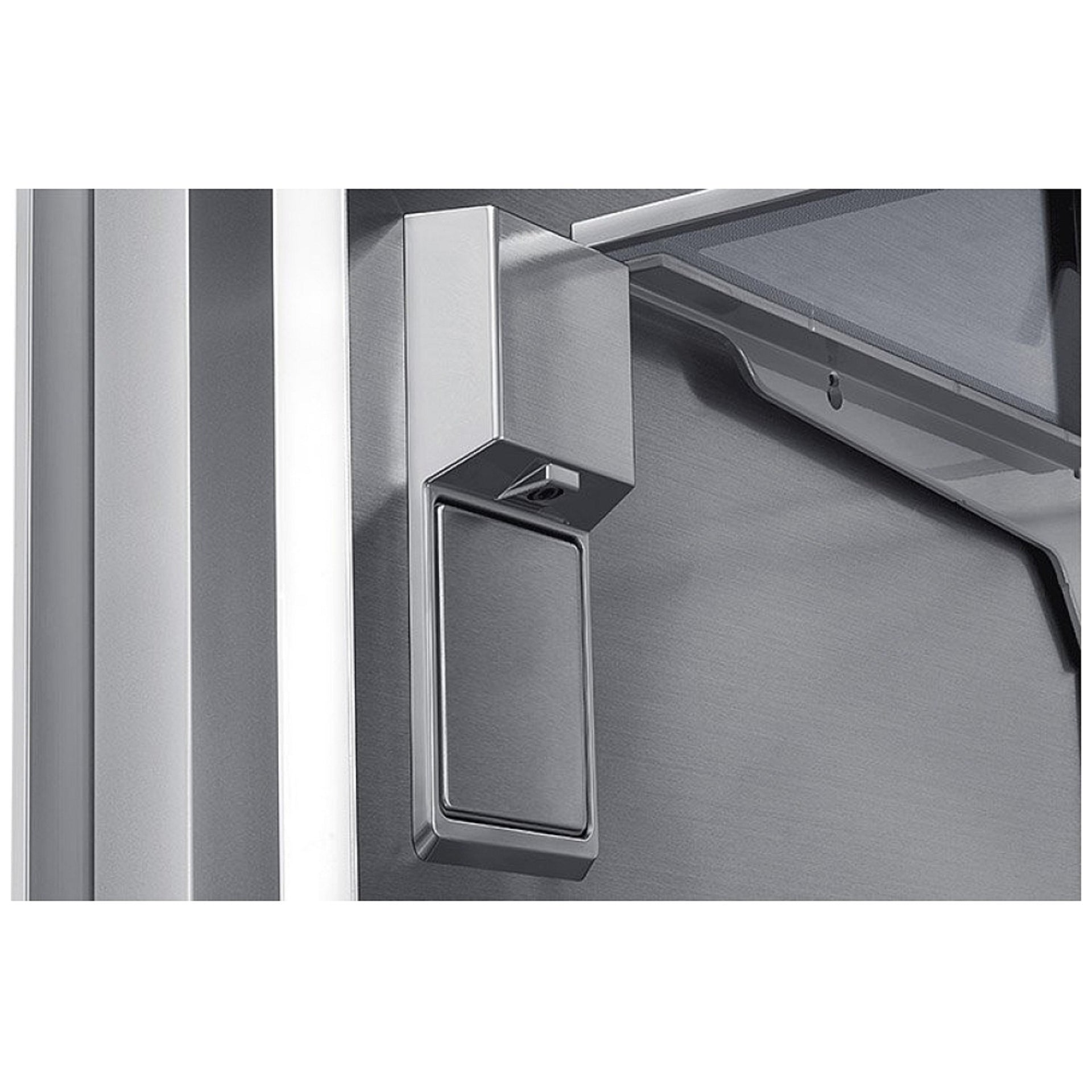

Internal Filtered-Water Dispenser

Enjoy convenient access to fresh, filtered water while maintaining the refrigerator’s clean, uninterrupted exterior.

iQ Remote View™

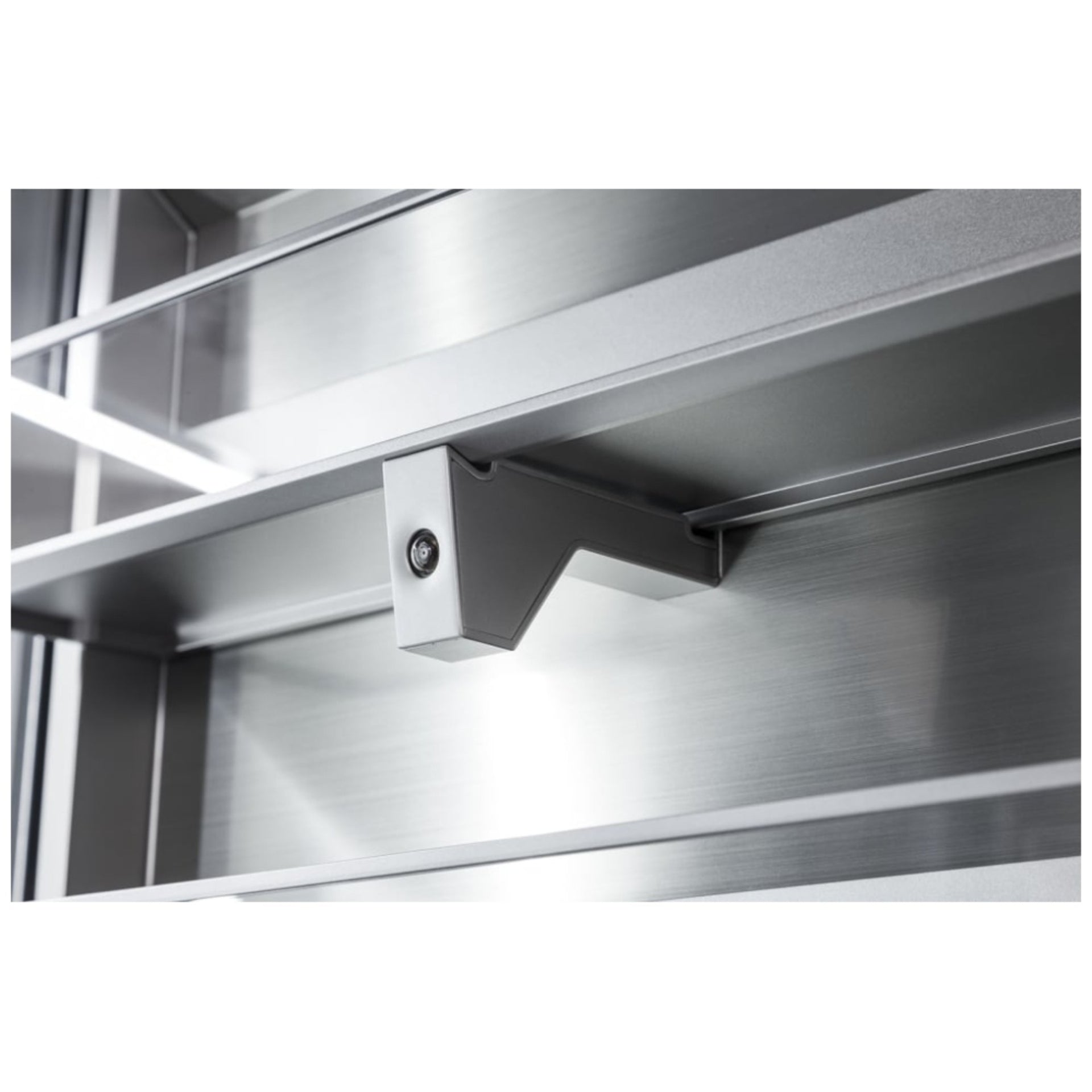

Built-in Wi-Fi and interior cameras allow compatible remote monitoring of refrigerator contents. Users can also remotely manage temperature and interior lighting through Dacor’s connected platform.

Push-to-Open Door Assist

The refrigerator door opens with a gentle push, supporting a streamlined, handle-free appearance when installed with compatible cabinetry.

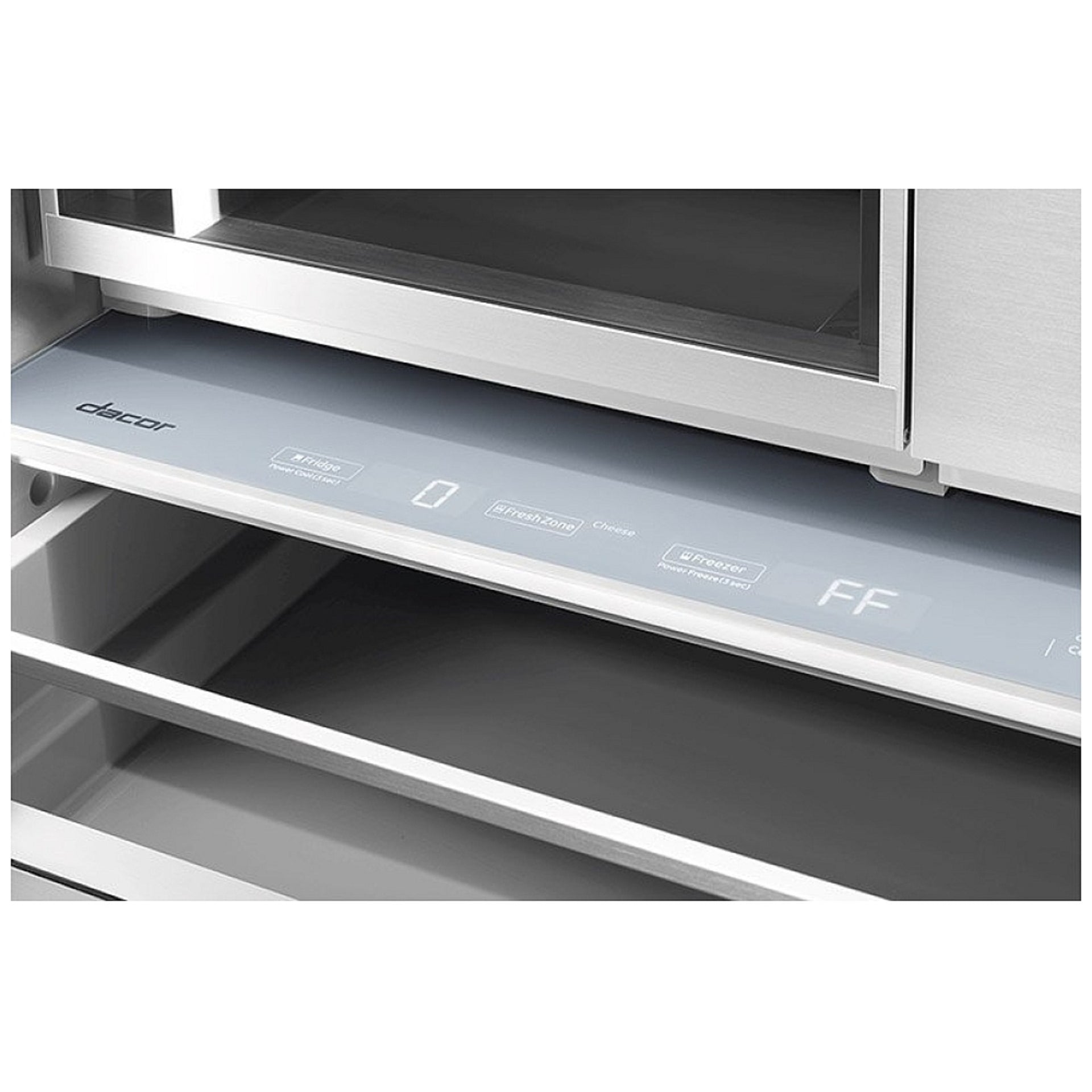

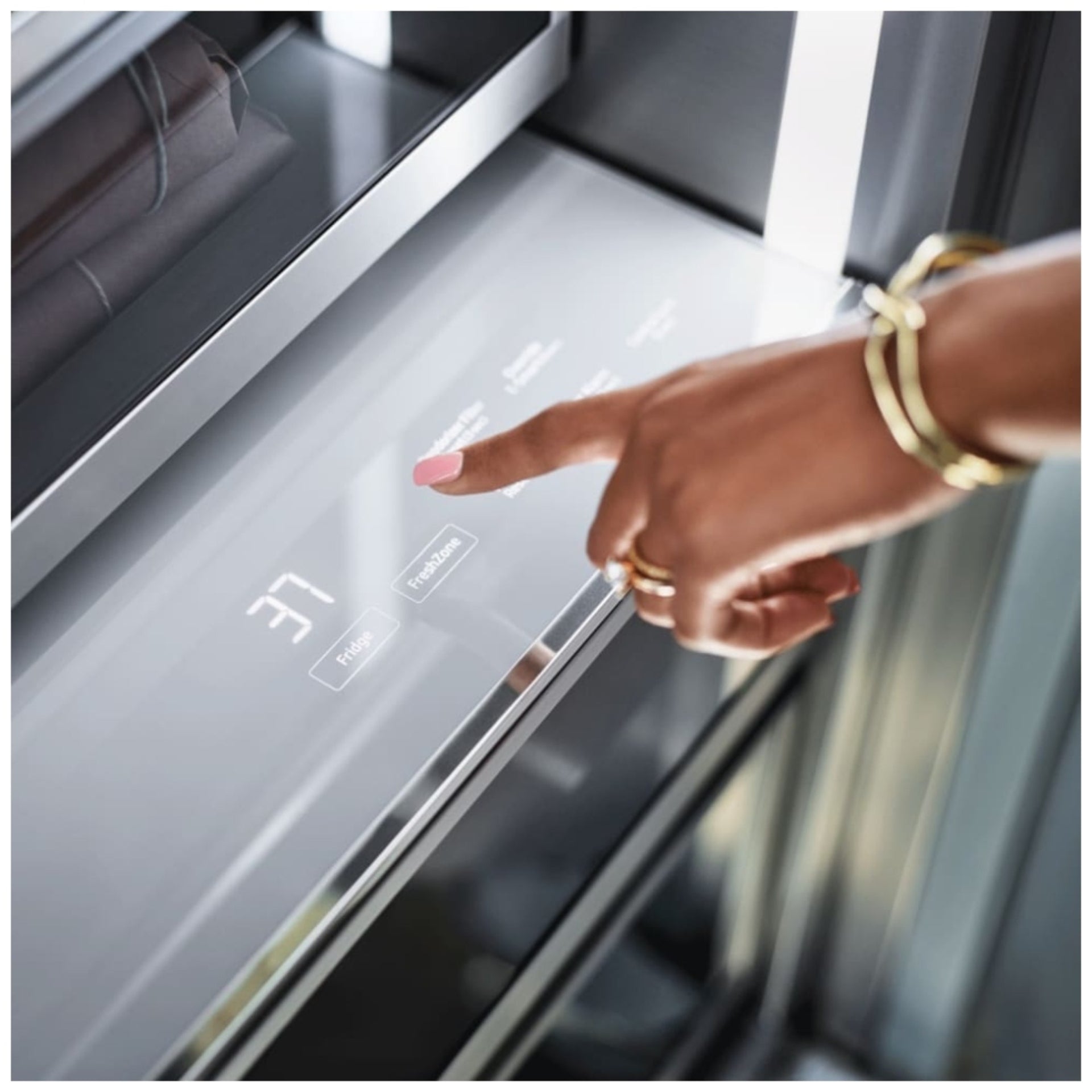

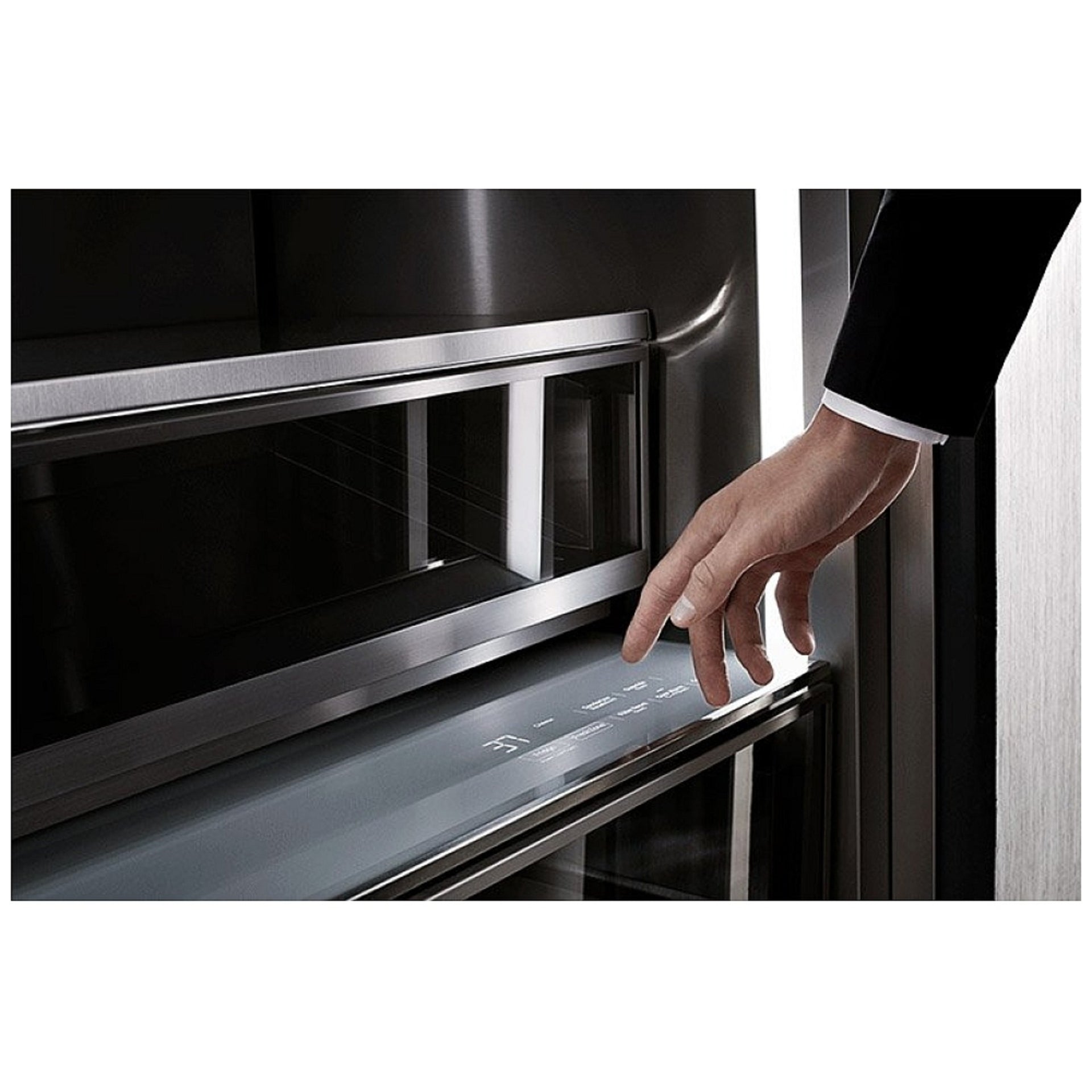

Hidden Touch Control Panel

Touch to reveal the discreet waist-height control display and conveniently manage temperature and refrigerator settings.

True-Flush Installation

The column can be installed flush within approximately 25-inch-deep cabinetry for a fully integrated appearance.

ENERGY STAR® Certified

ENERGY STAR® certification supports efficient operation, with estimated annual energy consumption of 280 kWh for the Canadian model.

Specifications

• Brand: Dacor
• Model: DRR24980RAP
• Appliance Type: Built-In Column Refrigerator
• Installation Type: Built-In
• Depth Type: Counter Depth
• Nominal Width: 24 inches
• Finish: Panel Ready
• Custom Panel Compatible: Yes
• Door Swing: Right hinge
• Total Capacity: 13.7 cu. ft.
• Water Dispenser: Internal and filtered
• Ice Maker: No
• Interior Finish: Fully wrapped stainless steel
• Interior Lighting: Integrated 3D LED lighting
• Cooling System: PreciseCooling™ with Digital Inverter Technology
• Temperature-Controlled Drawer: FreshZone™
• Humidity-Controlled Drawers: Two
• Full-Width Shelves: Four
• Shelf Material: Spill-resistant tempered glass with metal trim
• Door Bins: Four
• Full-Extension Drawers: Accessible with the door opened 90 degrees
• Door Assistance: Push-to-open
• Controls: Hidden touch control panel
• Smart Connectivity: Wi-Fi with iQ Remote View™
• ENERGY STAR® Certified: Yes
• Estimated Annual Energy Consumption: 280 kWh
• Electrical Requirements: 115V, 60Hz, 15A
• Manufacturer’s Warranty: Two years on parts and labour

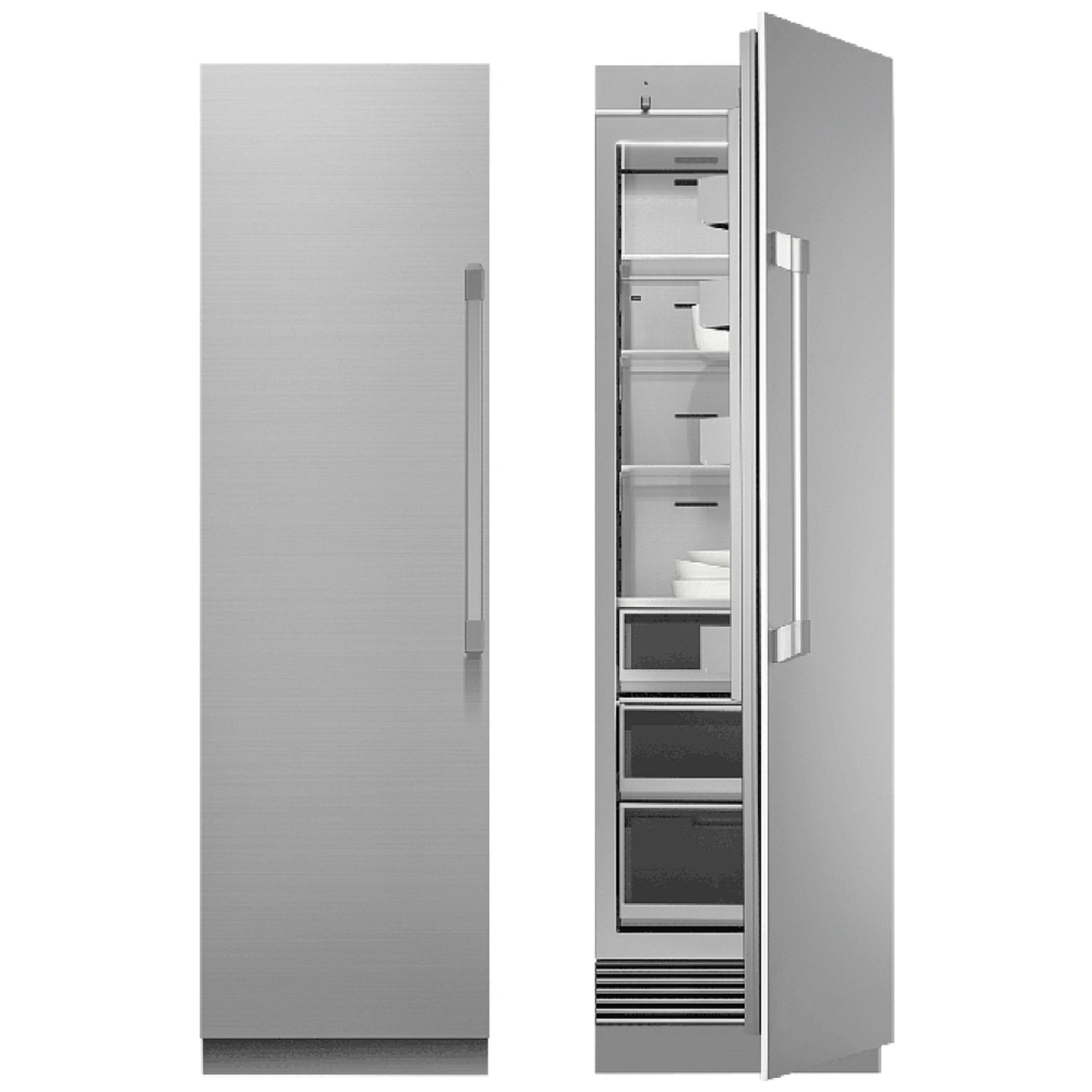

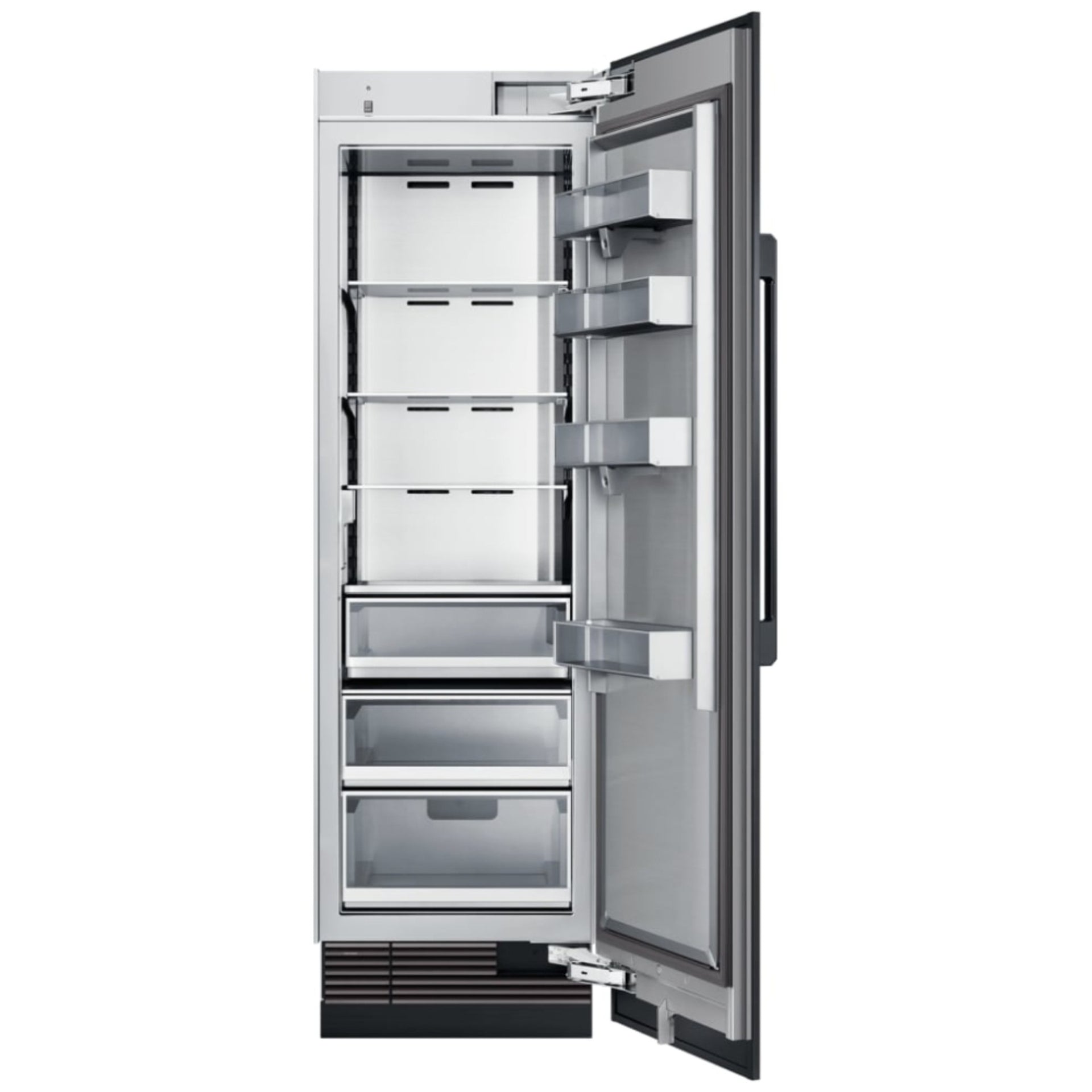

The interior configuration includes four full-width tempered-glass shelves, four door bins, two humidity-controlled drawers and one FreshZone™ temperature-controlled drawer.

Temperature Ranges

• Refrigerator: 1°C to 7°C
• Power Cool: 1°C
• FreshZone™ Cheese Setting: 3°C
• FreshZone™ Cold-Drink Setting: 1°C
• FreshZone™ Meat Setting: -1°C
• Temperature Fluctuation: Approximately ±0.5°C

The Canadian specifications list ENERGY STAR® qualification, annual energy consumption of 280 kWh and a two-year parts-and-labour warranty.

Dimensions

• Nominal Width: 24 inches
• Actual Width: 23-5/8 inches
• Height: 83-3/8 inches
• Depth: 23-13/16 inches
• Capacity: 13.7 cu. ft.

Consult Dacor’s installation instructions for complete cabinet-opening dimensions, custom-panel specifications, ventilation, electrical requirements, water-line placement and door clearances.

Available Accessories

• Contemporary graphite right-hinge column panel kit
• Contemporary silver right-hinge column panel kit

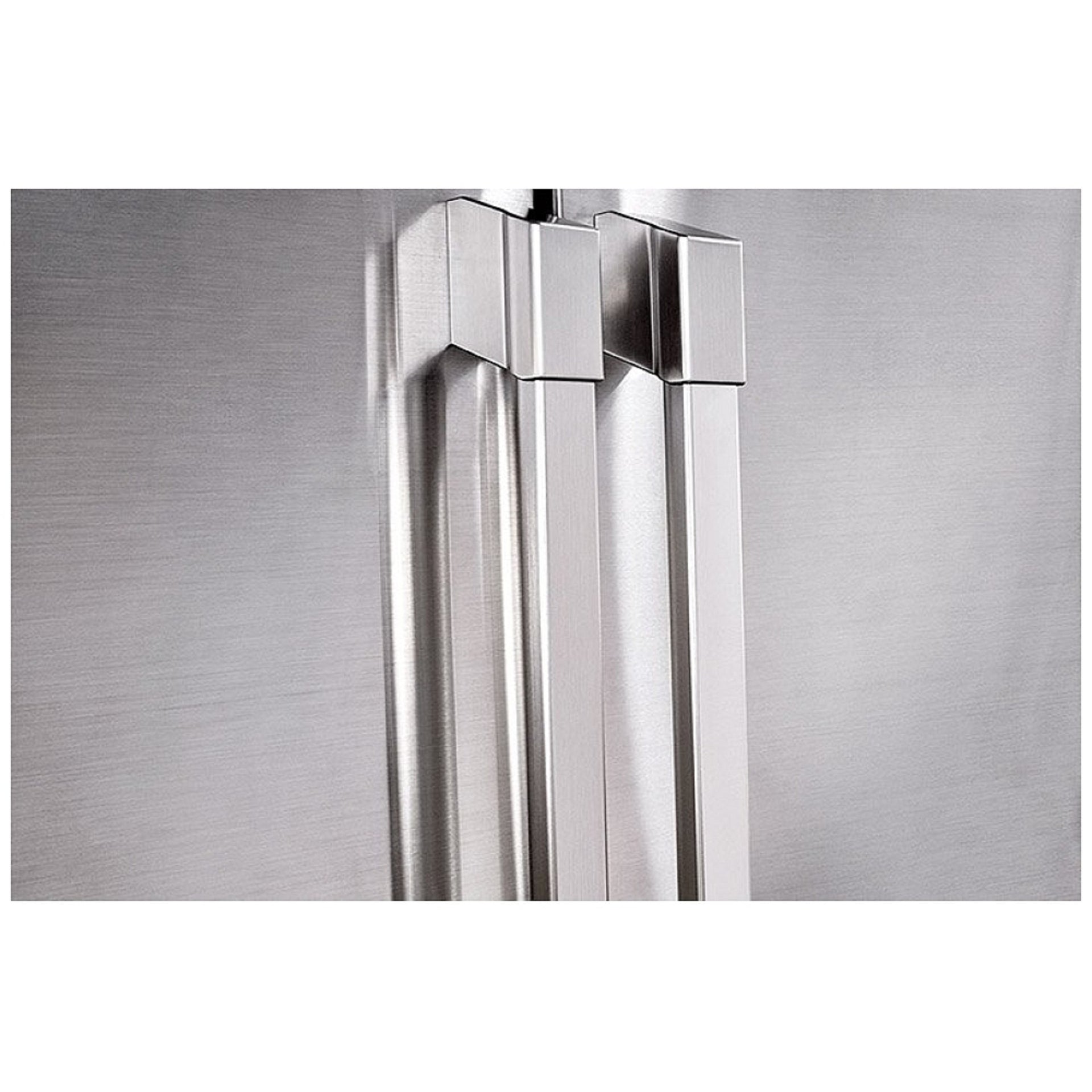

• Contemporary graphite handle kit
• Contemporary silver handle kit
• Column pairing kit
• Triple-column pairing kit
• Replacement water filter
• Deodorizing air-filter set

Important Panel Information

This refrigerator is supplied in a panel-ready configuration. A custom cabinetry panel and handle, or an optional Dacor panel-and-handle kit, may be required to complete the installation. Confirm all panel dimensions, weight limits and installation requirements before ordering or fabricating the custom panel.
