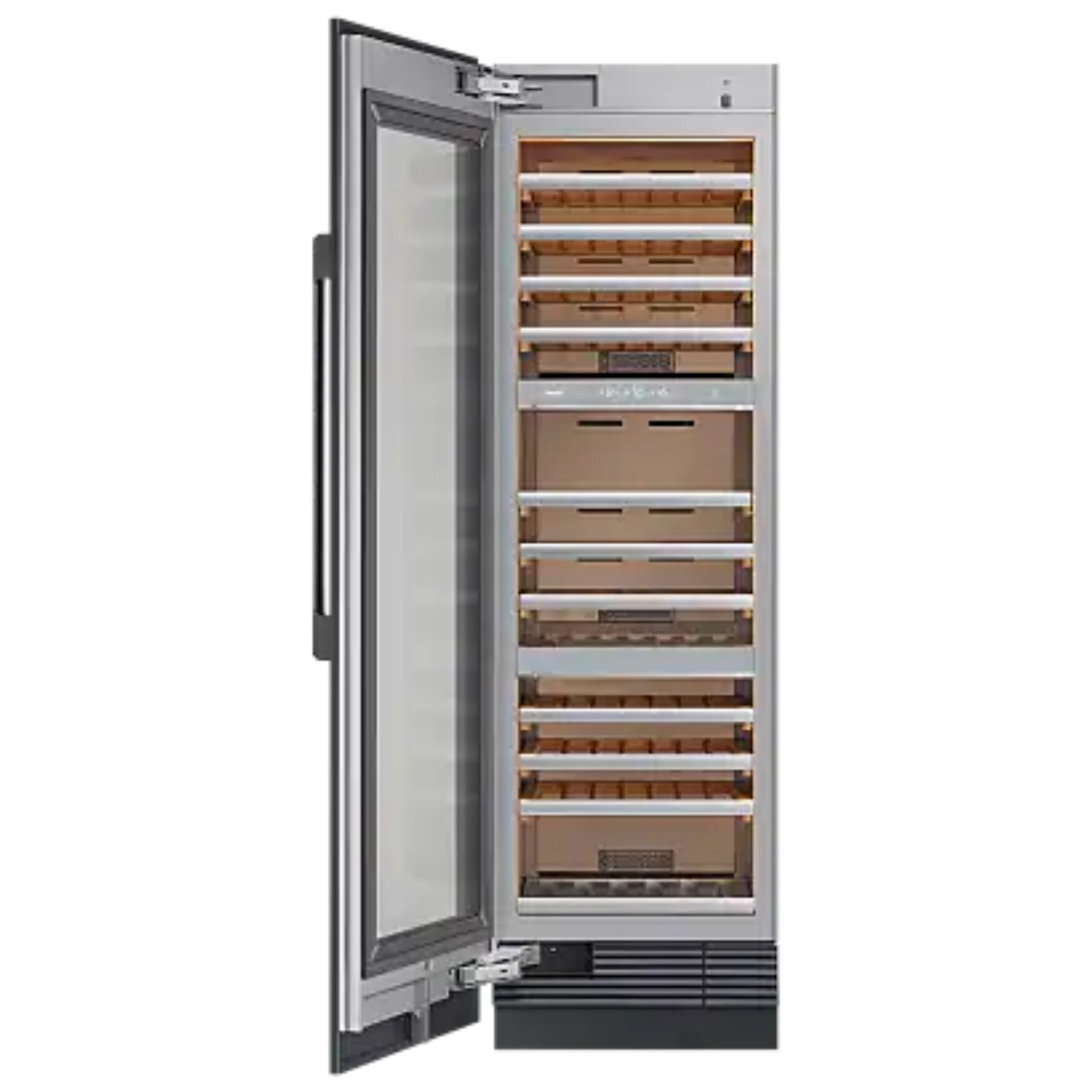

Dacor DRW24980LAP 24-Inch Built-In Wine Column – Panel Ready, Left Hinge

Preserve and display your wine collection in sophisticated style with the Dacor DRW24980LAP 24-Inch Built-In Wine Column. Designed for seamless integration, its panel-ready exterior accommodates custom cabinetry panels or optional Dacor stainless steel panel kits.

With storage for up to 100 standard wine bottles, this full-height wine column features three independently controlled temperature zones. Each zone has a dedicated evaporator, allowing red, white, sparkling and dessert wines to be stored at their preferred serving or preservation temperatures.

A triple-pane, argon-filled glass door helps protect wine from damaging ultraviolet and infrared light. Four humidity sensors monitor conditions inside and outside the cabinet, helping maintain a humidity level between approximately 50% and 80%. Precise Cooling Technology limits temperature fluctuation to approximately ±0.18°C for reliable long-term wine storage.

Key Features

Triple Temperature Zones

Three independently controlled compartments let you store different varieties of wine at suitable temperatures. A dedicated evaporator for each zone helps prevent temperature transfer between compartments.

100-Bottle Capacity

The full-height interior accommodates up to 100 standard wine bottles, making it suitable for established collections and frequent entertaining.

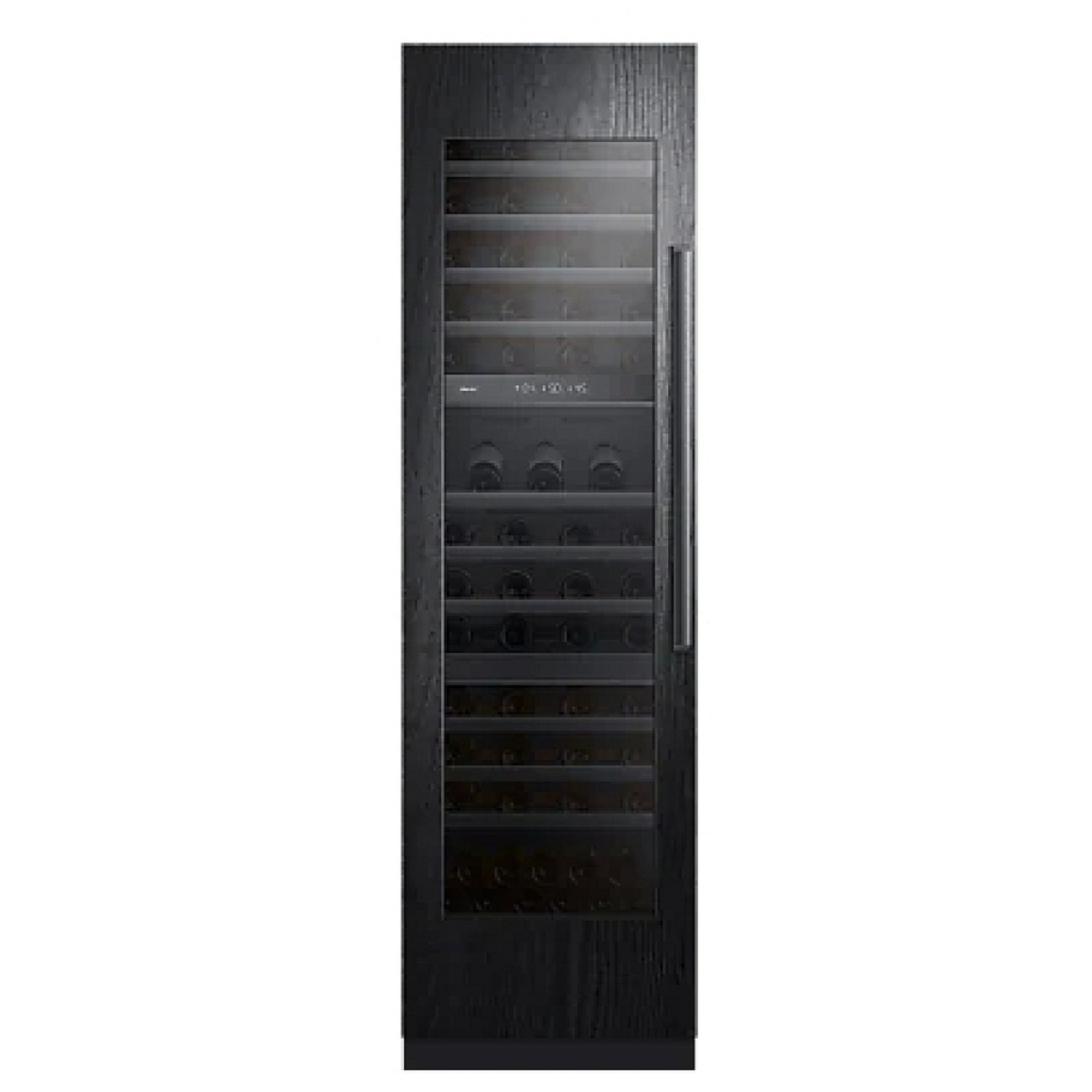

Panel-Ready Built-In Design

The unfinished exterior accepts a custom cabinetry panel for a seamless, furniture-style installation. Optional Dacor graphite and silver stainless steel panel kits are also available.

Left-Hinged Door

The door is hinged on the left and opens from the right, accommodating specific kitchen layouts and multi-column installations.

Triple-Pane Argon-Filled Glass

The insulated glass door is constructed with three layers of glass and filled with argon gas to help protect the wine collection from ultraviolet and infrared exposure.

Precise Cooling Technology

Digital Inverter Technology provides consistent cooling with temperature fluctuations of approximately ±0.18°C. A six-speed digital compressor also helps minimise vibration that could disturb stored wine.

Controlled Humidity

Three interior humidity sensors—one for each temperature zone—and one exterior sensor help maintain appropriate storage conditions. The system is designed to regulate humidity between approximately 50% and 80%.

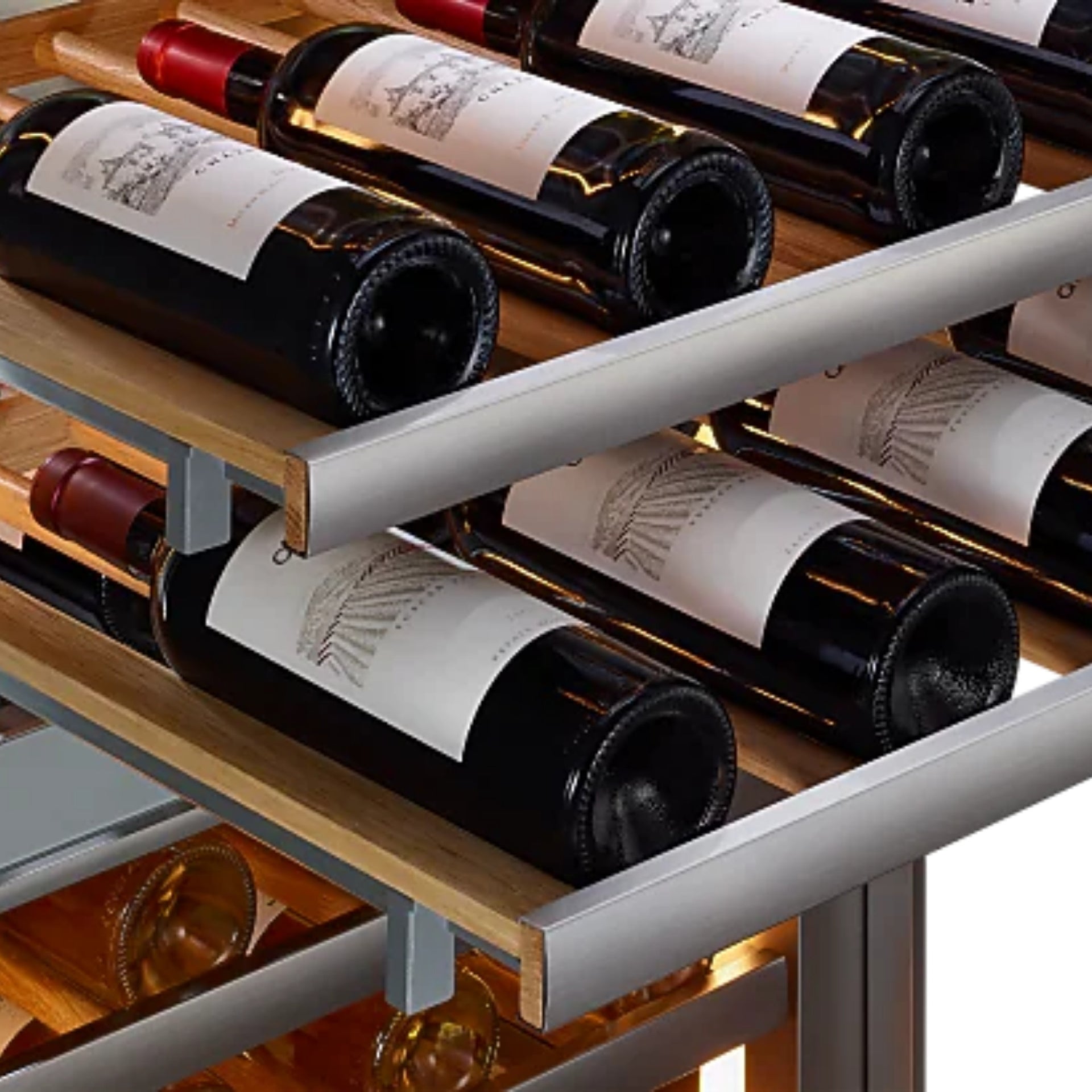

Oak-Wood Glideracks

Eleven full-extension oak racks glide smoothly on ball-bearing rails. Wooden dowels help reduce label damage while the rack construction helps minimise vibration.

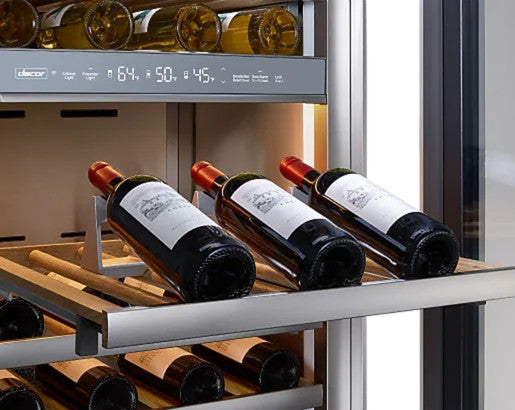

Presentation Shelf

A dedicated presentation shelf lets selected bottles rest at an attractive display angle while remaining properly stored.

Magnum-Bottle Storage

The flexible interior configuration accommodates select larger-format and magnum bottles.

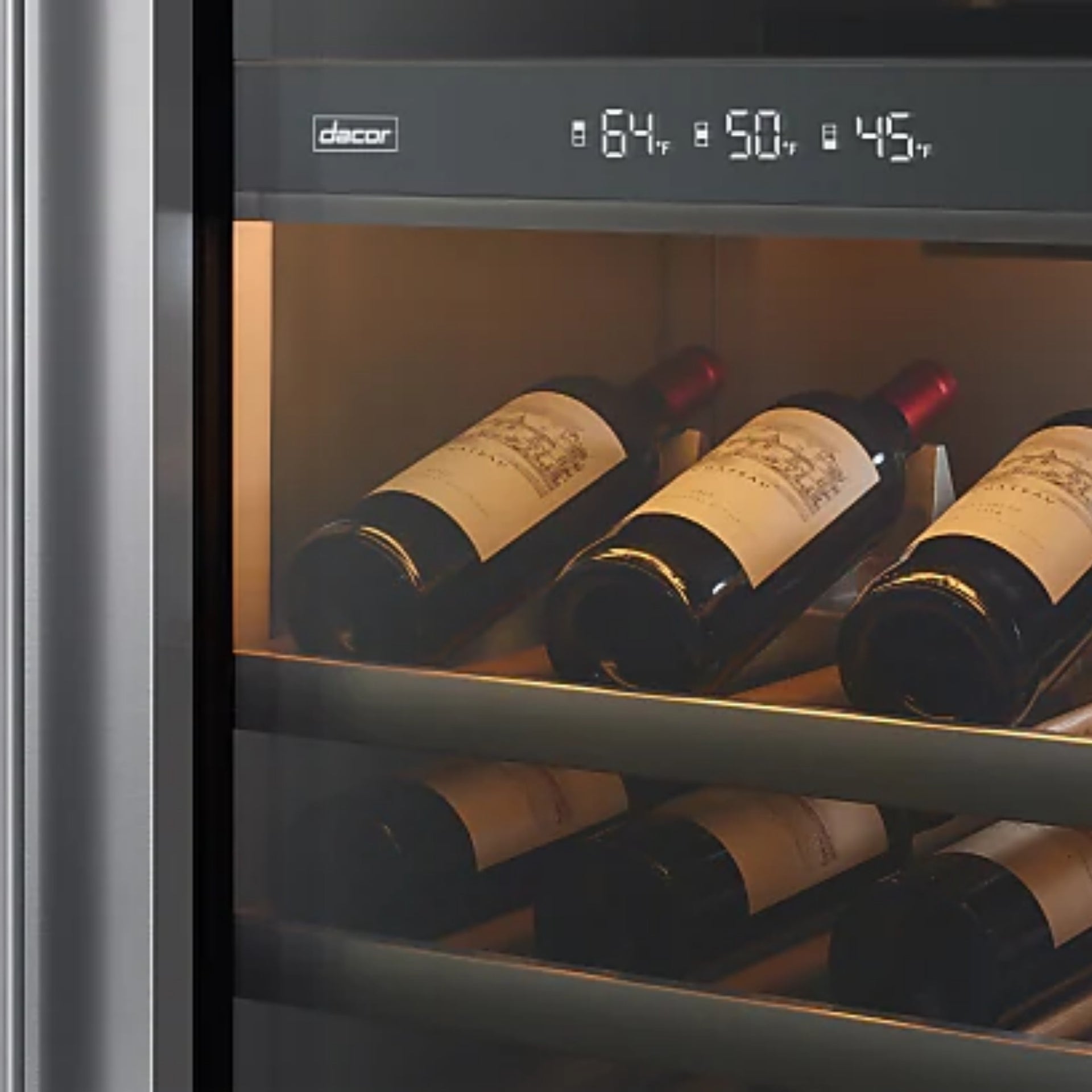

SteelCool™ Interior with 3D Lighting

A fully wrapped stainless steel interior is illuminated by integrated, wine-optimised LED lighting designed to avoid exposing the collection to ultraviolet radiation.

Push-to-Open Door

The door opens with a gentle push, supporting a streamlined, handle-free appearance when used with compatible custom panels.

SmartThings® Connectivity

Built-in Wi-Fi connects the wine column with the SmartThings® platform, allowing compatible remote temperature control, monitoring and status notifications.

Fully Integrated Flush Installation

The wine column is designed for installation flush within approximately 25-inch-deep cabinetry, creating a clean and fully integrated appearance.

Specifications

• Brand: Dacor
• Model: DRW24980LAP
• Appliance Type: Built-In Wine Cooler Column
• Installation Type: Built-In
• Depth Type: Counter Depth
• Nominal Width: 24 inches
• Finish: Panel Ready
• Custom Panel Compatible: Yes
• Door Swing: Left hinge
• Retailer-Listed Volume: 13.7 cu. ft.
• Manufacturer-Stated Capacity: Up to 100 bottles
• Temperature Zones: Three independently controlled zones
• Cooling System: Triple Cooling with three dedicated evaporators
• Temperature Control: Precise Cooling with Digital Inverter Technology
• Temperature Fluctuation: Approximately ±0.18°C
• Humidity Sensors: Four—three interior and one exterior
• Humidity Range: Approximately 50% to 80%
• Wine Racks: 11 full-extension Glideracks
• Rack Material: Oak wood with metal trim
• Presentation Shelf: Yes
• Magnum-Bottle Storage: Yes
• Interior Material: SteelCool™ stainless steel
• Interior Lighting: Wine-optimised 3D LED lighting
• Glass Door: Triple-pane, argon-filled and UV/IR resistant
• Push-to-Open Door: Yes
• Door Alarm: Yes
• Deodorising Filter: Yes
• Sabbath Mode: Yes
• Smart Connectivity: Wi-Fi and SmartThings®
• Annual Energy Consumption: Approximately 285 kWh
• Electrical Requirements: 115V, 60Hz, 15A
• Manufacturer’s Warranty: Two years on parts and labour

Temperature Range

• Minimum Operating Temperature: 4°C
• Maximum Operating Temperature: 18°C
• Temperature Fluctuation: Approximately ±0.18°C

Each of the three compartments can be managed independently, allowing different wine varieties to be stored within the appliance’s overall operating range.

Dimensions

• Nominal Width: 24 inches
• Actual Width: 23-5/8 inches
• Height: 83-3/8 inches
• Depth: 23-7/8 inches
• Bottle Capacity: Up to 100 bottles

Please consult Dacor’s installation instructions for exact cabinet-opening dimensions, door clearances, ventilation, anti-tip requirements and custom-panel specifications.

Available Accessories

• Contemporary graphite left-hinge column panel kit
• Contemporary silver left-hinge column panel kit
• Contemporary graphite handle kit
• Contemporary silver handle kit
• Column pairing installation kit
• Triple-column installation kit
• Replacement deodorising air-filter set

Important Panel Information

This appliance is supplied in a panel-ready configuration. A custom cabinetry panel and handle, or an optional Dacor panel-and-handle kit, may be required to complete the installation. Confirm the permitted panel dimensions, thickness and weight before ordering or fabricating the panel.

Bottle capacity may vary depending on bottle shape, size, orientation and the use of the presentation shelf or magnum-bottle storage area.
