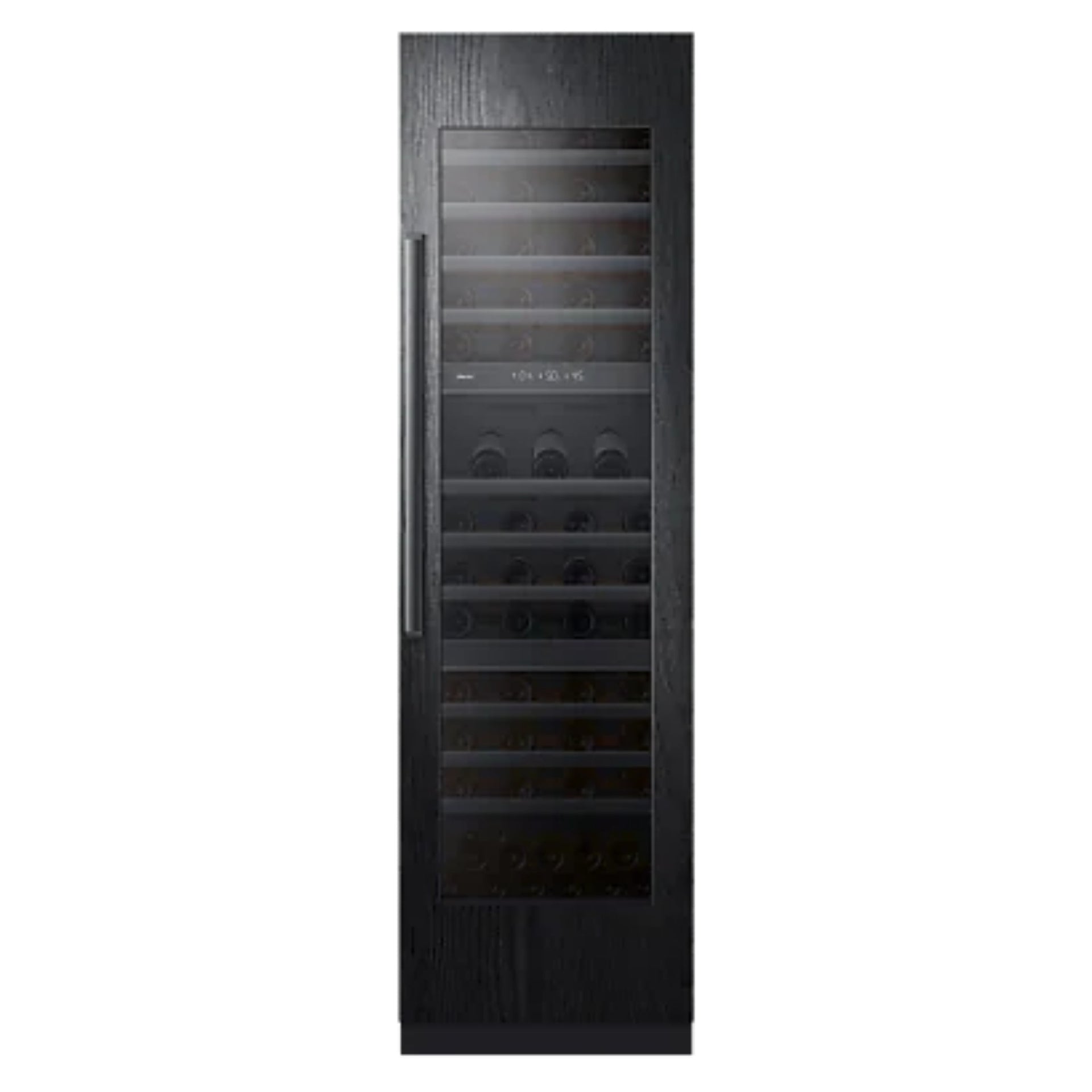

Dacor DRW24980RAP 24-Inch Built-In Wine Column – Panel Ready, Right Hinge

Preserve and showcase your wine collection with the Dacor DRW24980RAP 24-Inch Built-In Wine Column. Its panel-ready exterior accommodates custom cabinetry panels, allowing the appliance to blend seamlessly with surrounding kitchen cabinets.

This full-height wine column holds up to 100 standard wine bottles and features three independently controlled temperature zones. Each zone uses a dedicated evaporator, allowing red, white, sparkling and dessert wines to be stored at suitable temperatures within the same appliance.

A triple-pane, argon-filled glass door helps protect wine from ultraviolet and infrared exposure. Four humidity sensors monitor conditions inside and outside the cabinet, while Precise Cooling Technology limits temperature fluctuations to approximately ±0.18°C.

Key Features

Triple Temperature Zones

Three independently controlled compartments provide flexible storage for different wine varieties. Each zone has a dedicated evaporator to help maintain its selected temperature.

100-Bottle Capacity

The full-height interior accommodates up to 100 standard wine bottles, making it suitable for established collections and frequent entertaining.

Panel-Ready Built-In Design

Designed to accept a custom cabinetry panel for a seamless, furniture-style installation. Optional Dacor silver and graphite stainless steel panel kits are also available.

Right-Hinged Door

The door is hinged on the right and opens from the left, making this configuration suitable for specific kitchen layouts and multi-column installations.

Triple-Pane Argon-Filled Glass

Three layers of insulated glass with argon gas help protect the wine collection from ultraviolet and infrared exposure.

Precise Cooling Technology

Digital Inverter Technology helps maintain stable temperatures with fluctuations of approximately ±0.18°C. A six-speed digital compressor helps minimize vibration that could disturb stored wine.

Humidity Management

Four humidity sensors—one in each temperature zone and one outside the cabinet—help maintain interior humidity between approximately 50% and 80%.

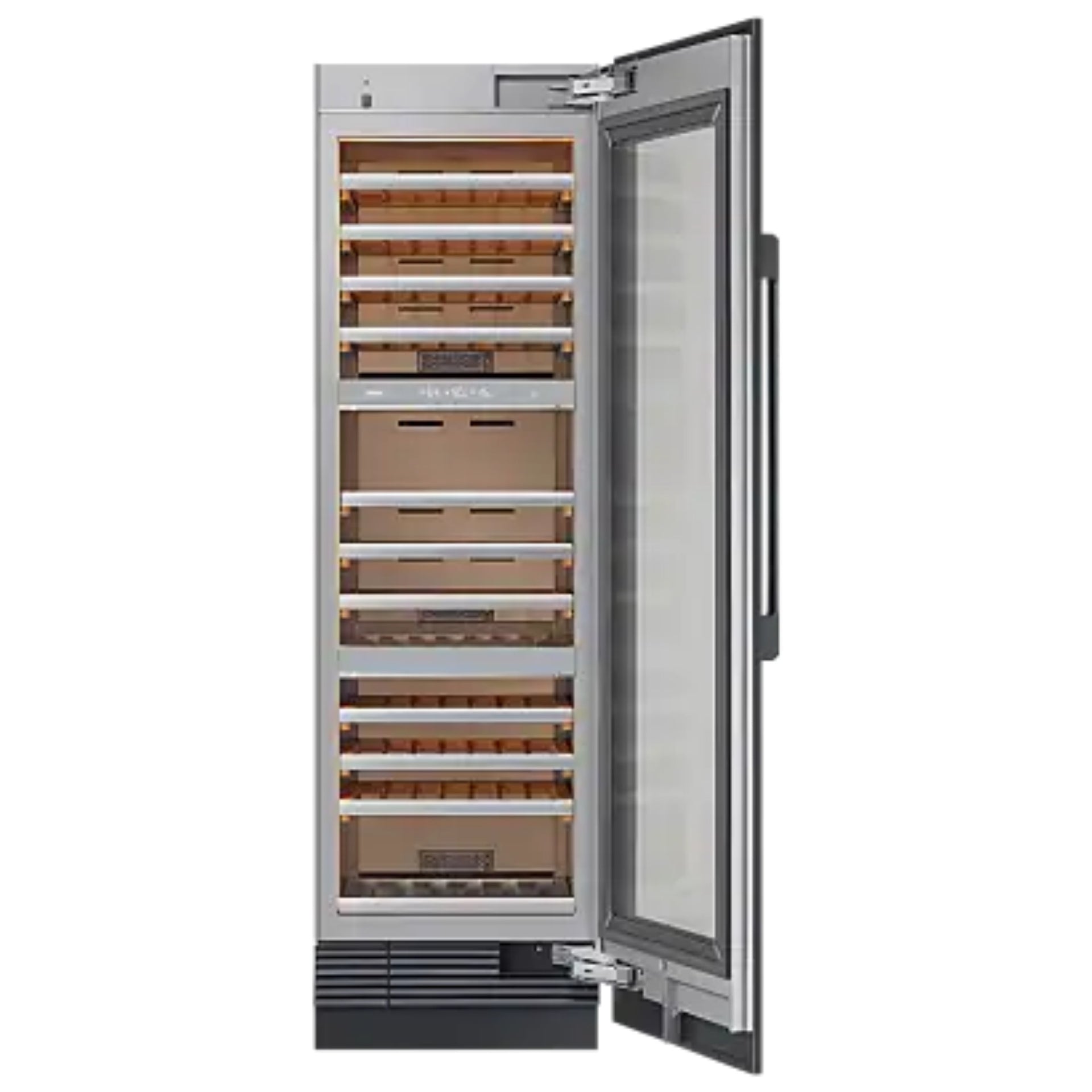

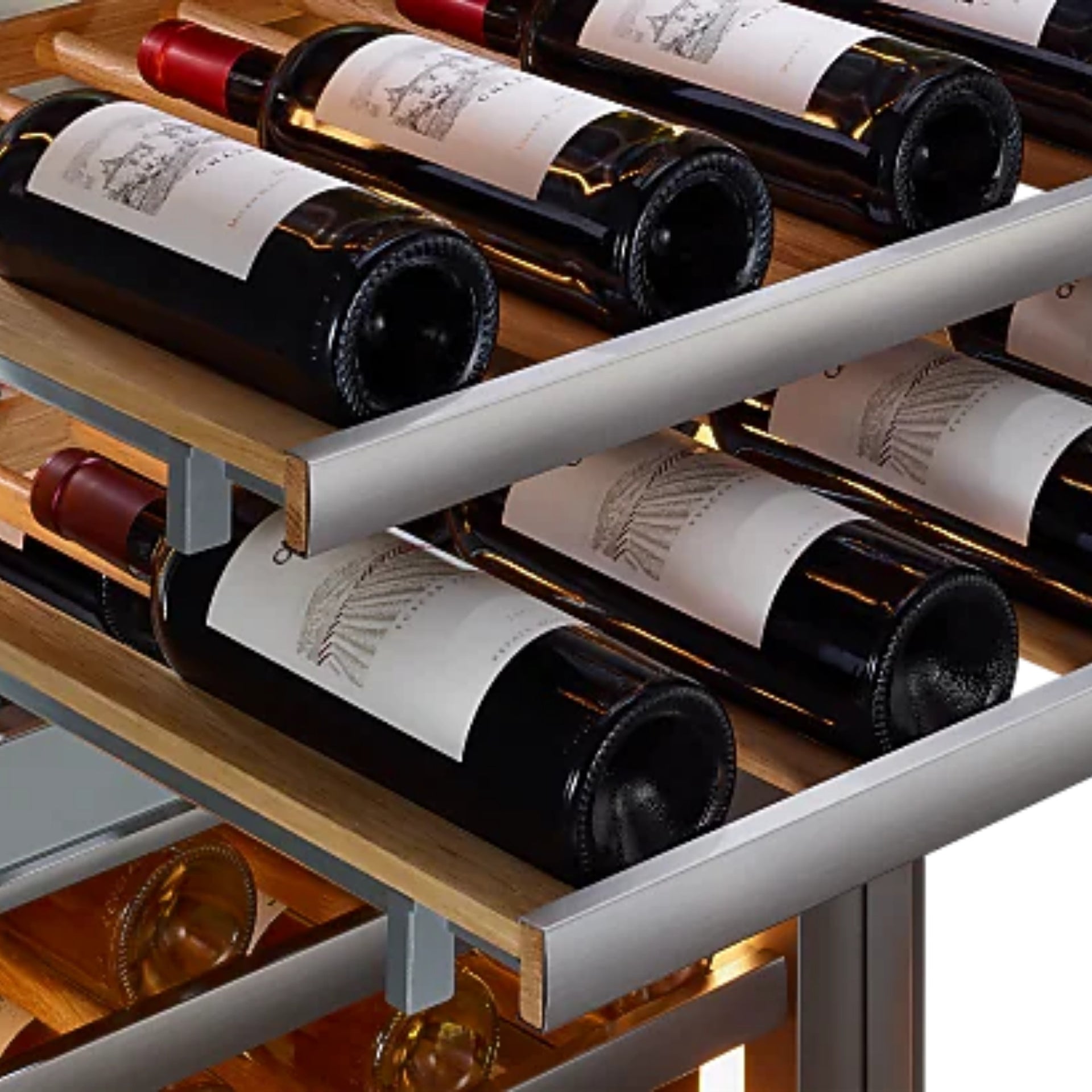

Oak-Wood Glideracks

Full-extension oak Glideracks slide smoothly on ball-bearing rails. The wooden construction helps reduce vibration and protects bottle labels from moisture-related damage.

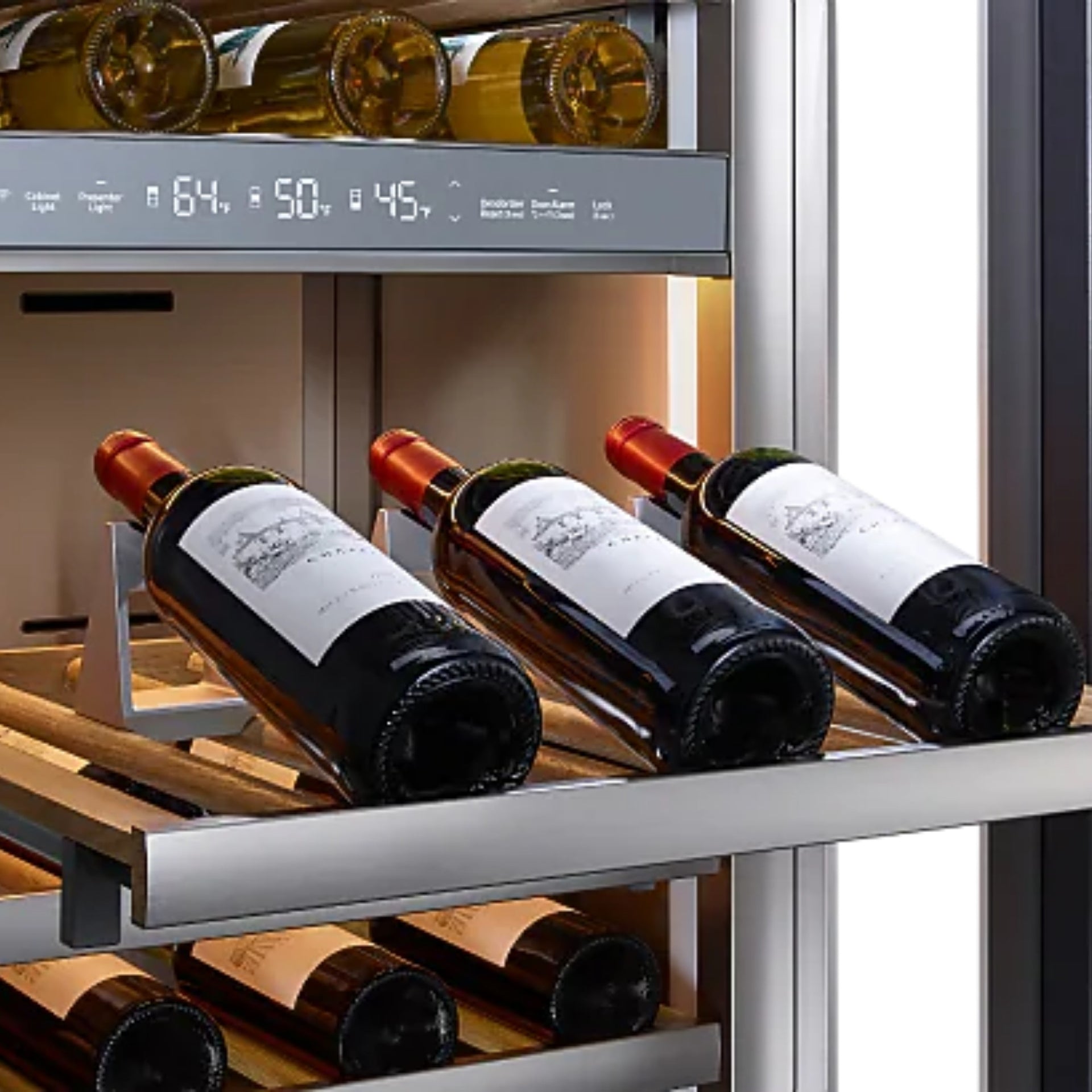

Presentation Shelf

A dedicated presentation shelf allows selected bottles to be displayed at an attractive angle while remaining properly stored.

Magnum-Bottle Storage

The flexible interior configuration accommodates select larger-format and magnum wine bottles.

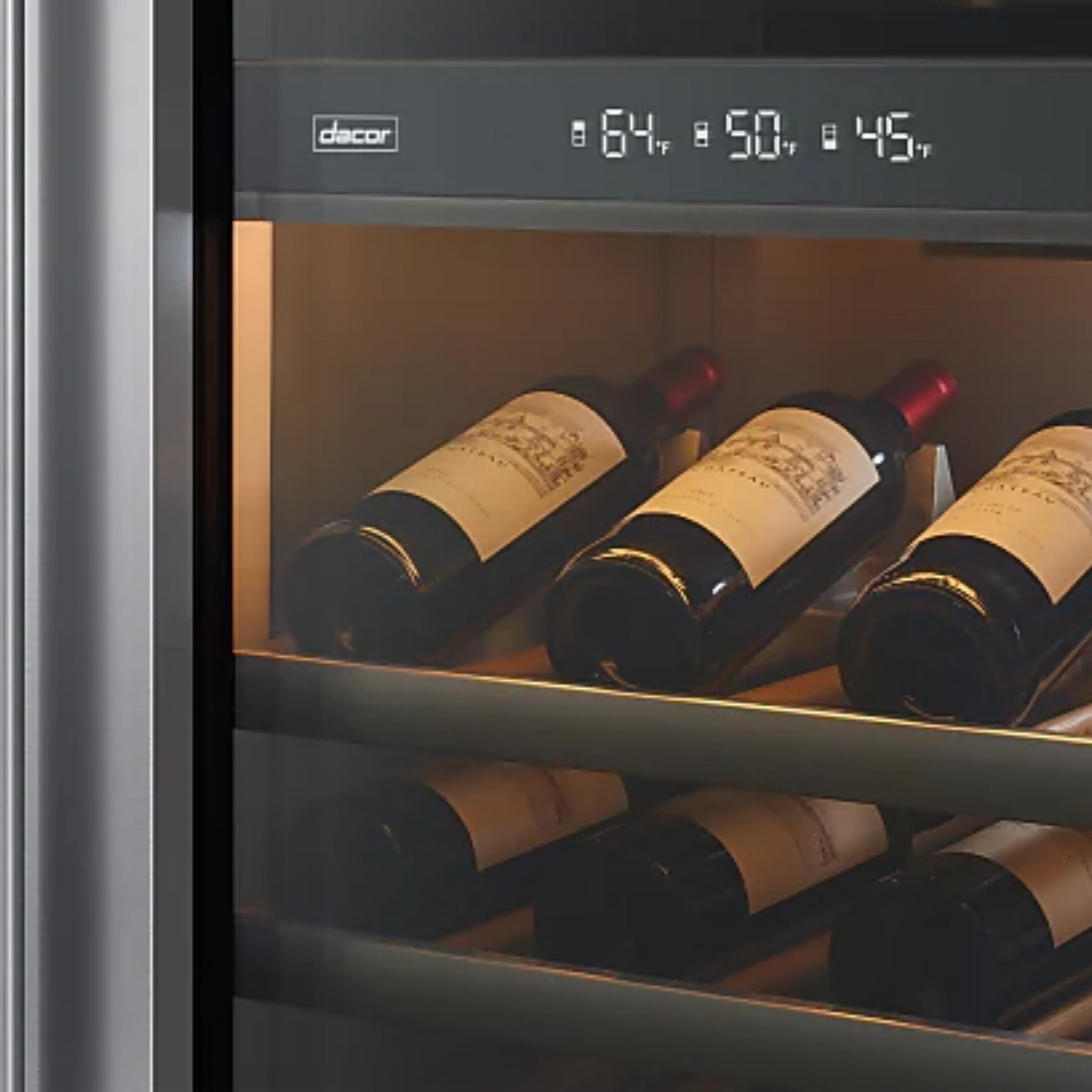

SteelCool™ Interior with 3D Lighting

A fully wrapped stainless steel interior is illuminated by integrated, wine-optimized LED lighting designed to avoid ultraviolet exposure.

Push-to-Open Door

The door opens with a gentle push, supporting a clean, handle-free appearance when installed with compatible cabinetry.

SmartThings® Connectivity

Built-in Wi-Fi integration allows compatible remote temperature control, monitoring and appliance-status notifications through the SmartThings® platform.

Fully Integrated Flush Installation

Designed for flush installation within approximately 25-inch-deep cabinetry for a clean, fully integrated appearance.

Specifications

• Brand: Dacor
• Model: DRW24980RAP
• Appliance Type: Built-In Wine Cooler Column
• Installation Type: Built-In
• Depth Type: Counter Depth
• Nominal Width: 24 inches
• Finish: Panel Ready
• Custom Panel Compatible: Yes
• Door Swing: Right hinge
• Bottle Capacity: Up to 100 standard bottles
• Temperature Zones: Three independently controlled zones
• Cooling System: Triple Cooling with a dedicated evaporator for each zone
• Temperature Control: Precise Cooling with Digital Inverter Technology
• Temperature Fluctuation: Approximately ±0.18°C
• Humidity Sensors: Four
• Humidity Range: Approximately 50% to 80%
• Wine Racks: Full-extension oak Glideracks
• Presentation Shelf: Yes
• Magnum-Bottle Storage: Yes
• Interior Material: SteelCool™ stainless steel
• Interior Lighting: Wine-optimized 3D LED lighting
• Glass Door: Triple-pane and argon-filled
• Push-to-Open Door: Yes
• Smart Connectivity: Wi-Fi and SmartThings®
• Electrical Requirements: 115V, 60Hz, 15A
• Manufacturer’s Warranty: Two years on parts and labour

Temperature Range

• Minimum Operating Temperature: 4°C
• Maximum Operating Temperature: 18°C
• Temperature Fluctuation: Approximately ±0.18°C

Each of the three compartments can be controlled independently within the appliance’s overall operating range.

Dimensions

• Nominal Width: 24 inches
• Actual Width: 23-5/8 inches
• Height: 83-3/8 inches
• Depth: 23-7/8 inches
• Bottle Capacity: Up to 100 bottles

Consult Dacor’s installation instructions for exact cabinet-opening dimensions, ventilation, anti-tip requirements, door clearances and custom-panel specifications.

Available Accessories

• Contemporary graphite right-hinge column panel kit
• Contemporary silver right-hinge column panel kit
• Contemporary graphite handle kit
• Contemporary silver handle kit
• Replacement deodorizing air-filter set

Important Panel Information

This appliance is supplied in a panel-ready configuration. A custom cabinetry panel and handle, or an optional Dacor panel-and-handle kit, may be required to complete the installation. Confirm permitted panel dimensions, thickness and weight before ordering or fabricating the panel.

Bottle capacity may vary depending on bottle dimensions, orientation and use of the presentation shelf or larger-bottle storage area.
