Dacor DRZ24980LAP 24-Inch Built-In Freezer Column – Panel Ready, Left Hinge

Elevate your kitchen with the Dacor DRZ24980LAP 24-Inch Built-In Freezer Column. Designed for true-flush installation, its panel-ready exterior accepts a custom cabinetry panel for a clean, fully integrated appearance.

The spacious 13.6 cu. ft. interior features SteelCool™ stainless steel walls, elegant glass-and-metal storage components and expansive 3D LED lighting. PreciseCooling™ technology helps maintain stable freezer temperatures, while the dual ice maker produces both standard ice cubes and slow-melting Cocktail Ice™ for everyday refreshments and entertaining.

A left-hinged door, Push-to-Open Door Assist and a concealed touch control panel complete the freezer’s streamlined design.

Key Features

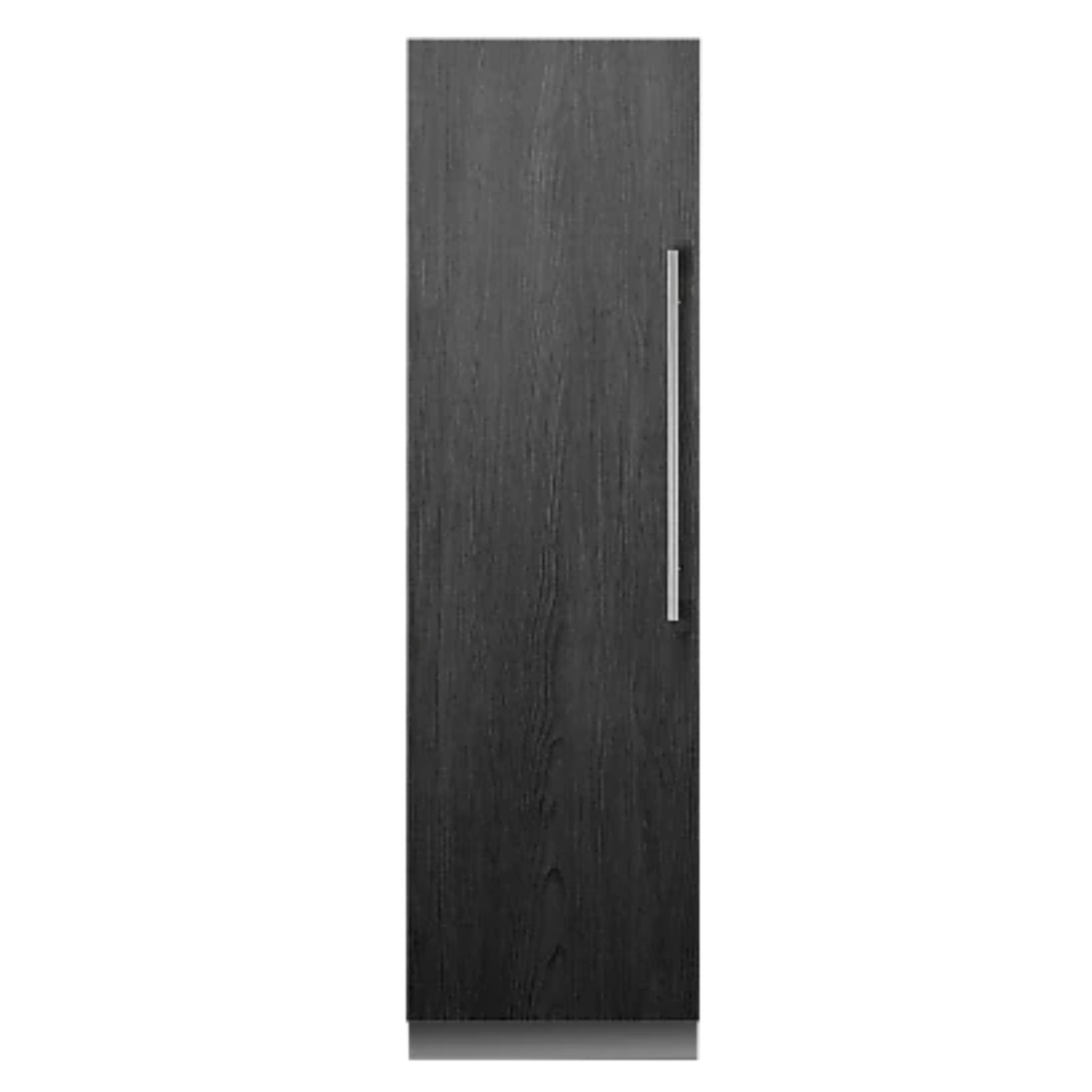

Panel-Ready Built-In Design

Designed to accept a custom cabinetry panel, allowing the freezer to blend seamlessly with surrounding kitchen cabinets.

Left-Hinged Door

The door is hinged on the left and opens from the right, making this configuration suitable for specific kitchen layouts or pairing with a compatible right-hinged refrigerator column.

13.6 Cu. Ft. Capacity

The full-height interior provides generous dedicated storage for frozen groceries, prepared meals and entertaining essentials.

Dual Ice Maker with Cocktail Ice™

Two ice makers produce traditional ice cubes and larger, longer-lasting Cocktail Ice™ for drinks and entertaining.

SteelCool™ Stainless Steel Interior

A fully wrapped stainless steel interior provides a durable, premium environment for organising and displaying frozen foods.

Expansive 3D LED Lighting

Integrated LED lighting brightly illuminates the stainless steel interior, shelves and drawers.

PreciseCooling™ Technology

Digital Inverter Technology helps maintain consistent freezer performance with temperature fluctuations of approximately ±0.5°C.

Frost-Free Operation

The automatic frost-free defrost system helps prevent ice buildup and eliminates the need for routine manual defrosting.

Power Freeze

Power Freeze rapidly lowers the freezer temperature to -23°C, helping newly added groceries freeze more quickly.

Push-to-Open Door Assist

A gentle push activates the door-opening mechanism, supporting a clean and streamlined exterior.

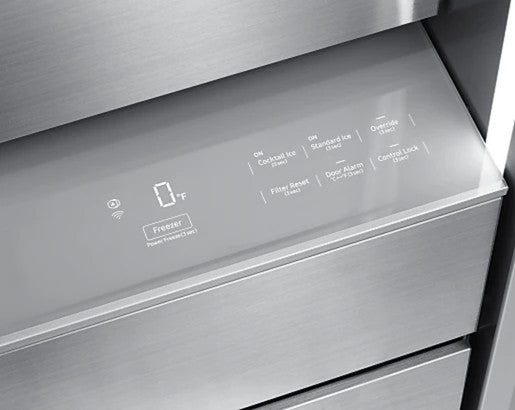

Hidden Touch Control Panel

The discreet waist-height control panel appears when touched, providing convenient access to temperature and operating settings.

True-Flush Installation

The freezer column can be installed flush within approximately 25-inch-deep cabinetry for a fully integrated appearance.

ENERGY STAR® Certified

ENERGY STAR® certification supports efficient operation, with estimated annual energy consumption of 500 kWh.

Specifications

• Brand: Dacor
• Model: DRZ24980LAP
• Alternate Model Reference: DRZ24980LAP/DA
• Appliance Type: Built-In Freezer Column
• Installation Type: Built-In
• Depth Type: Counter Depth
• Nominal Width: 24 inches
• Finish: Panel Ready
• Custom Panel Compatible: Yes
• Door Swing: Left hinge
• Freezer Capacity: 13.6 cu. ft.
• Defrost System: Automatic frost-free
• Ice Maker: Dual ice maker
• Ice Types: Standard cubes and Cocktail Ice™
• Interior Finish: SteelCool™ stainless steel
• Interior Lighting: Integrated 3D LED lighting
• Cooling System: PreciseCooling™ with Digital Inverter Technology
• Temperature Fluctuation: Approximately ±0.5°C
• Power Freeze: Yes
• Controls: Hidden touch control panel
• Door Assistance: Push-to-Open
• Door-Open Alarm: Yes
• Sabbath Mode: Yes
• ENERGY STAR® Certified: Yes
• Estimated Annual Energy Consumption: 500 kWh
• Electrical Requirements: 115V, 60Hz, 15A
• Manufacturer’s Warranty: Two years on parts and labour

Dacor confirms the 13.6 cu. ft. capacity, 115V electrical requirement, ENERGY STAR® qualification and two-year parts-and-labour warranty.

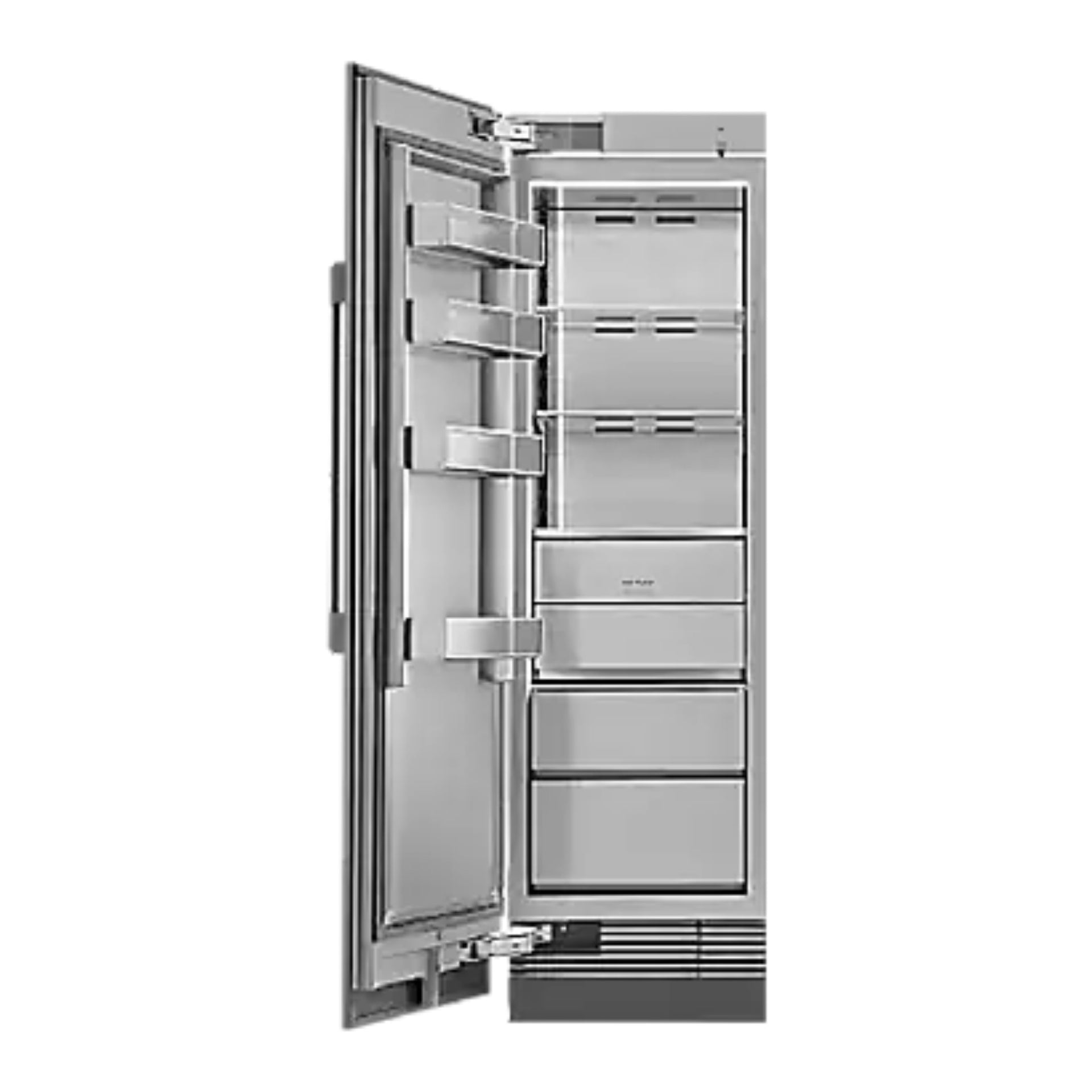

Interior Configuration

• Three full-width shelves
• Spill-resistant tempered-glass shelves with metal trim

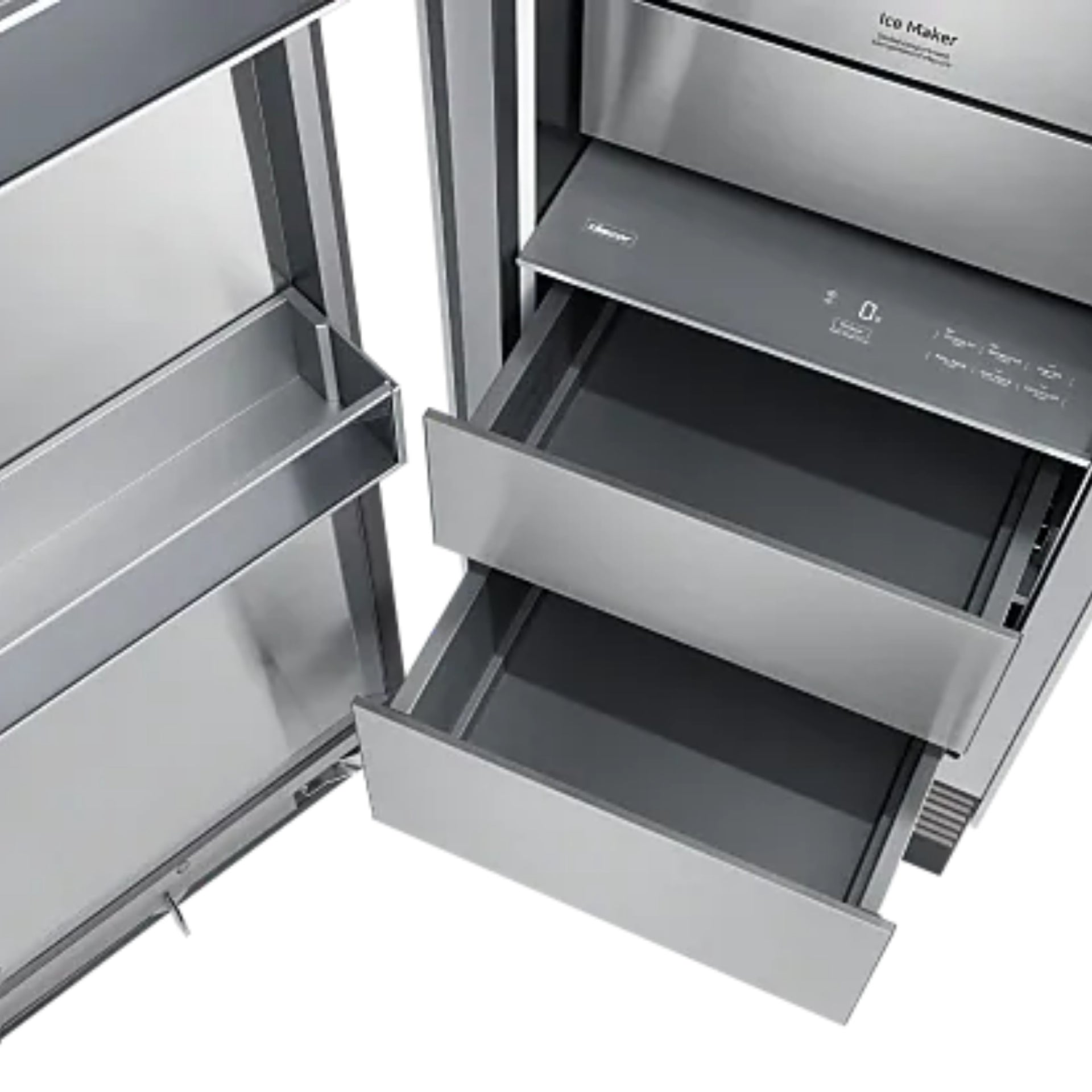

• Two full-extension freezer drawers
• Four door bins
• One hidden compartment with a flip-up cover
• Full-extension drawer access at a 90-degree door opening

The combination of shelving, door storage, concealed storage and freezer drawers helps keep frozen foods visible and organised.

Temperature Range

• Freezer Temperature: -15°C to -23°C
• Power Freeze Setting: -23°C
• Temperature Fluctuation: Approximately ±0.5°C

Dimensions

• Nominal Width: 24 inches
• Actual Width: 23-5/8 inches
• Height: 83-3/8 inches
• Depth: 23-13/16 inches
• Capacity: 13.6 cu. ft.

These are the Canadian product dimensions. Consult Dacor’s installation instructions for exact cabinet-opening dimensions, anti-tip requirements, water-line placement, electrical connections, ventilation and door clearances.

Available Accessories

• Contemporary graphite left-hinge panel kit
• Contemporary silver left-hinge panel kit
• Contemporary graphite handle kit
• Contemporary silver handle kit
• Column pairing kit
• Triple-column pairing kit
• Replacement water filter

Important Panel and Installation Information

This freezer is supplied in a panel-ready configuration. A custom cabinetry panel and handle, or an optional Dacor panel-and-handle kit, may be required to complete the installation.

Confirm all panel dimensions, thickness and weight requirements before fabricating or ordering the custom panel. A dedicated water connection is required to operate the dual ice maker.
