Dacor DRZ24980RAP 24-Inch Built-In Freezer Column – Panel Ready, Right Hinge

Elevate your kitchen with the Dacor DRZ24980RAP/DA 24-Inch Built-In Freezer Column. Designed for seamless integration, its panel-ready exterior accepts a custom cabinetry panel so the appliance can blend beautifully with surrounding cabinets.

The spacious 13.6 cu. ft. interior features fully wrapped SteelCool™ stainless steel walls, glass-and-metal storage components and expansive 3D LED lighting. PreciseCooling™ technology helps maintain stable temperatures, while the dual ice maker produces both standard ice cubes and slow-melting Cocktail Ice™ for everyday refreshments and entertaining.

A right-hinged door, Push-to-Open Door Assist, hidden touch controls and true-flush installation complete the freezer’s clean, contemporary design.

Key Features

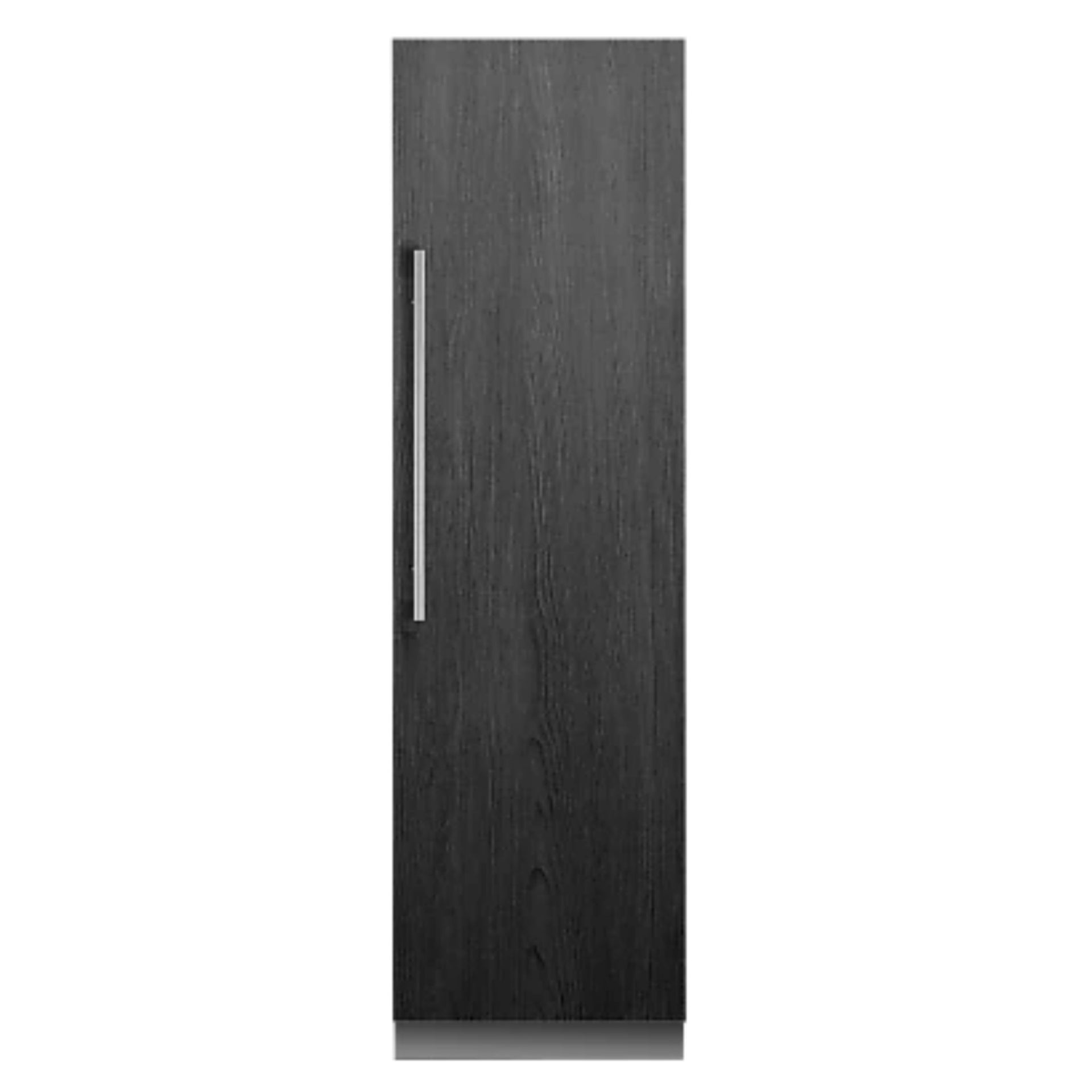

Panel-Ready Built-In Design

Designed to accept a custom cabinetry panel for a seamless, furniture-style kitchen installation.

Right-Hinged Door

The door is hinged on the right and opens from the left, making this configuration suitable for specific kitchen layouts or pairing with a compatible left-hinged refrigerator, freezer or wine column.

13.6 Cu. Ft. Capacity

The full-height interior provides generous dedicated storage for frozen groceries, prepared meals and entertaining essentials.

Dual Ice Maker with Cocktail Ice™

The dual ice-making system produces traditional ice cubes and larger, longer-lasting Cocktail Ice™ for drinks and entertaining.

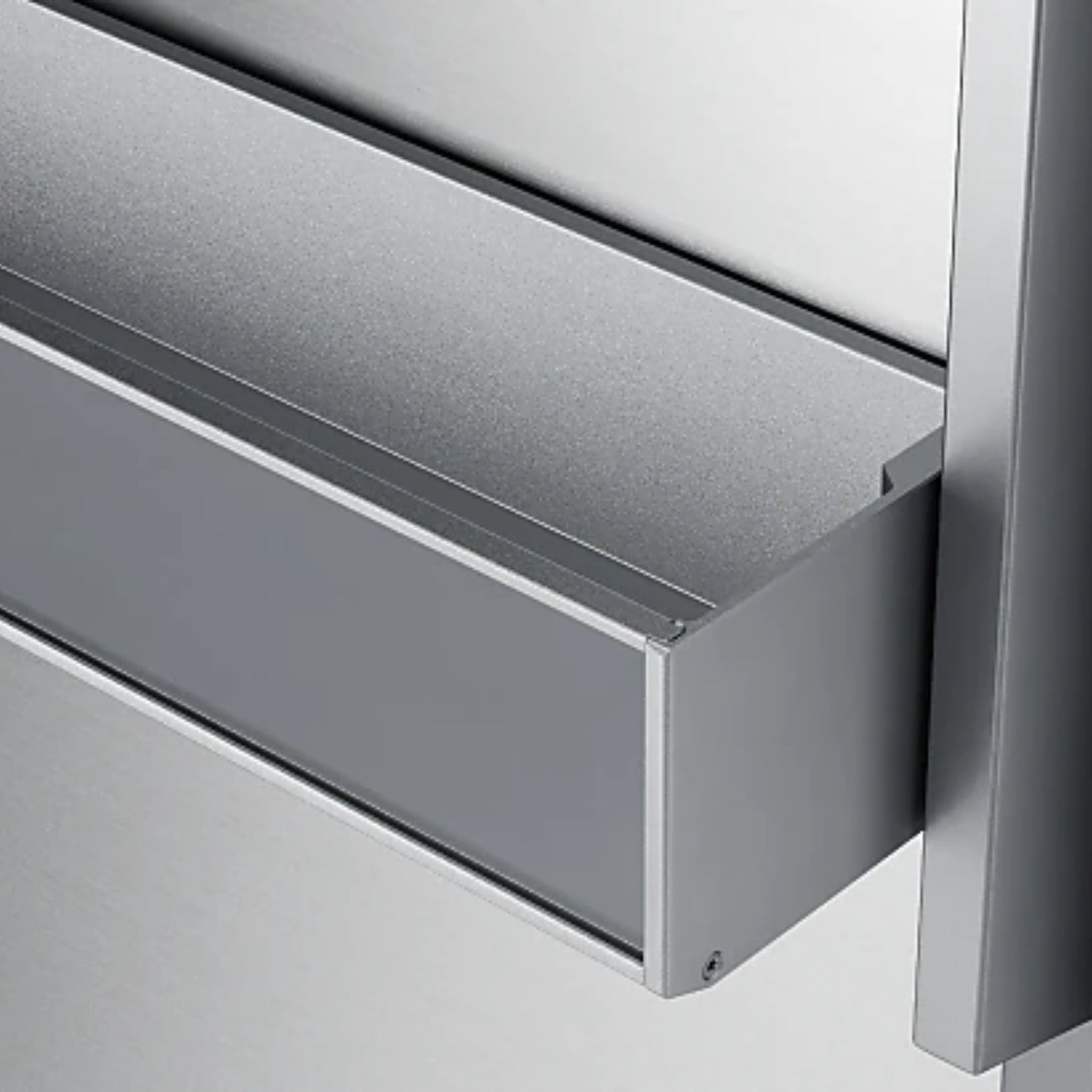

SteelCool™ Stainless Steel Interior

A fully wrapped stainless steel interior creates a durable and premium environment for organizing and displaying frozen foods.

Expansive 3D LED Lighting

Seamlessly integrated LED lighting brightly illuminates the shelves, door bins and freezer drawers.

PreciseCooling™ Technology

Digital Inverter Technology helps maintain consistent freezer performance with temperature fluctuations of approximately ±0.5°C.

Frost-Free Operation

The automatic frost-free system helps prevent frost buildup and reduces the need for routine manual defrosting.

Power Freeze

Power Freeze rapidly lowers the freezer temperature to -23°C, helping newly added groceries freeze more quickly.

Push-to-Open Door Assist

The freezer door opens with a gentle push, supporting a streamlined exterior with minimal visible hardware.

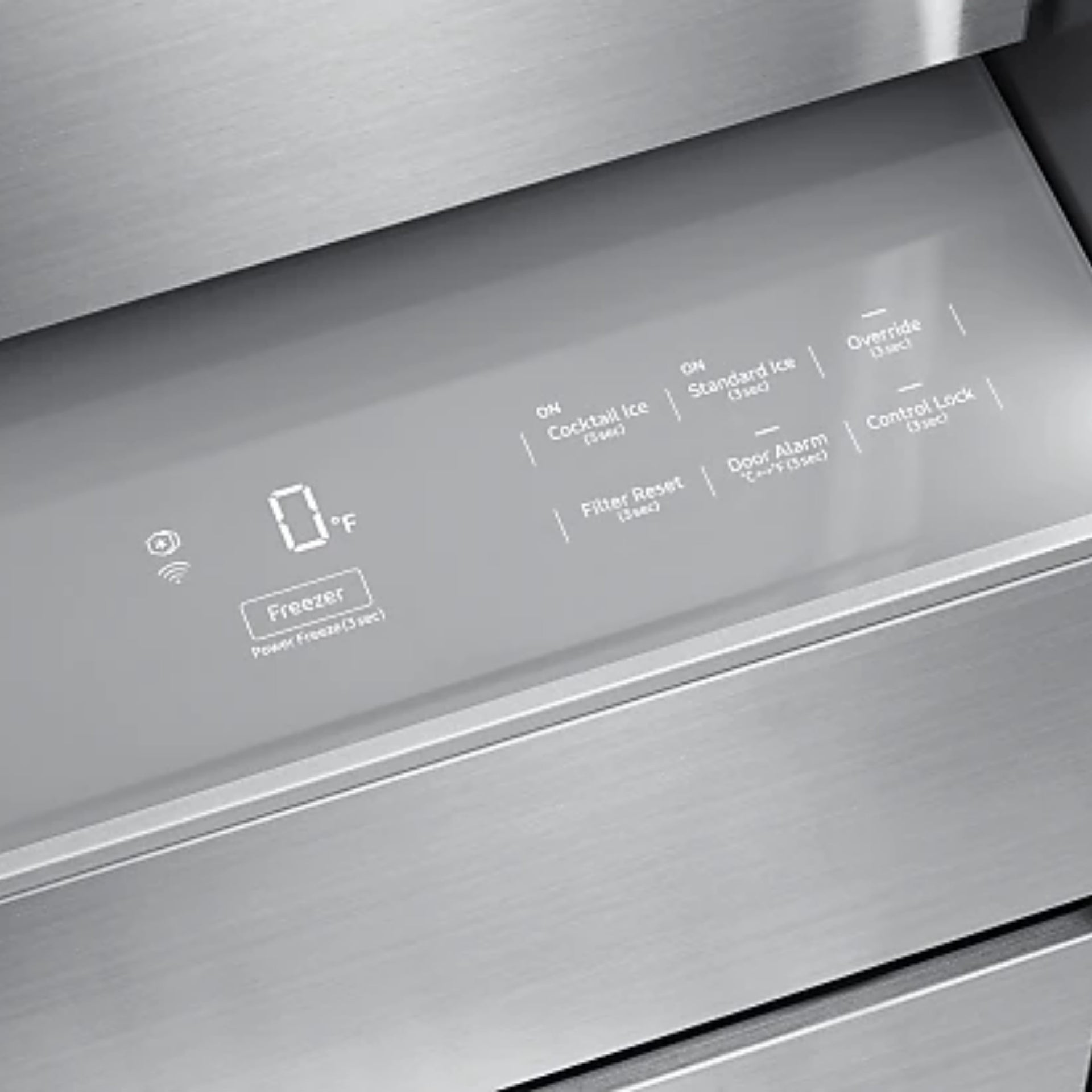

Hidden Touch Control Panel

Touch to reveal the discreet control display and conveniently manage freezer temperatures and operating functions.

True-Flush Installation

The freezer column can be installed flush within approximately 25-inch-deep cabinetry for a clean, fully integrated appearance.

ENERGY STAR® Certified

ENERGY STAR® certification supports efficient operation, with estimated annual energy consumption of 500 kWh.

Specifications

• Brand: Dacor
• Model: DRZ24980RAP/DA
• Base Model: DRZ24980RAP
• Appliance Type: Built-In Freezer Column
• Installation Type: Built-In
• Depth Type: Counter Depth
• Nominal Width: 24 inches
• Finish: Panel Ready
• Custom Panel Compatible: Yes
• Door Swing: Right hinge
• Freezer Capacity: 13.6 cu. ft.
• Defrost System: Automatic frost-free
• Ice Maker: Dual ice maker
• Ice Types: Standard cubes and Cocktail Ice™
• Interior Finish: Fully wrapped SteelCool™ stainless steel
• Interior Lighting: Integrated 3D LED lighting
• Cooling System: PreciseCooling™ with Digital Inverter Technology
• Temperature Fluctuation: Approximately ±0.5°C
• Power Freeze: Yes
• Controls: Hidden touch control panel
• Door Assistance: Push-to-Open
• ENERGY STAR® Certified: Yes
• Estimated Annual Energy Consumption: 500 kWh
• Electrical Requirements: 115V, 60Hz, 15A
• Manufacturer’s Warranty: Two-year full coverage

Dacor’s official specifications confirm the model reference, capacity, electrical requirements, ENERGY STAR® qualification and two-year full warranty.

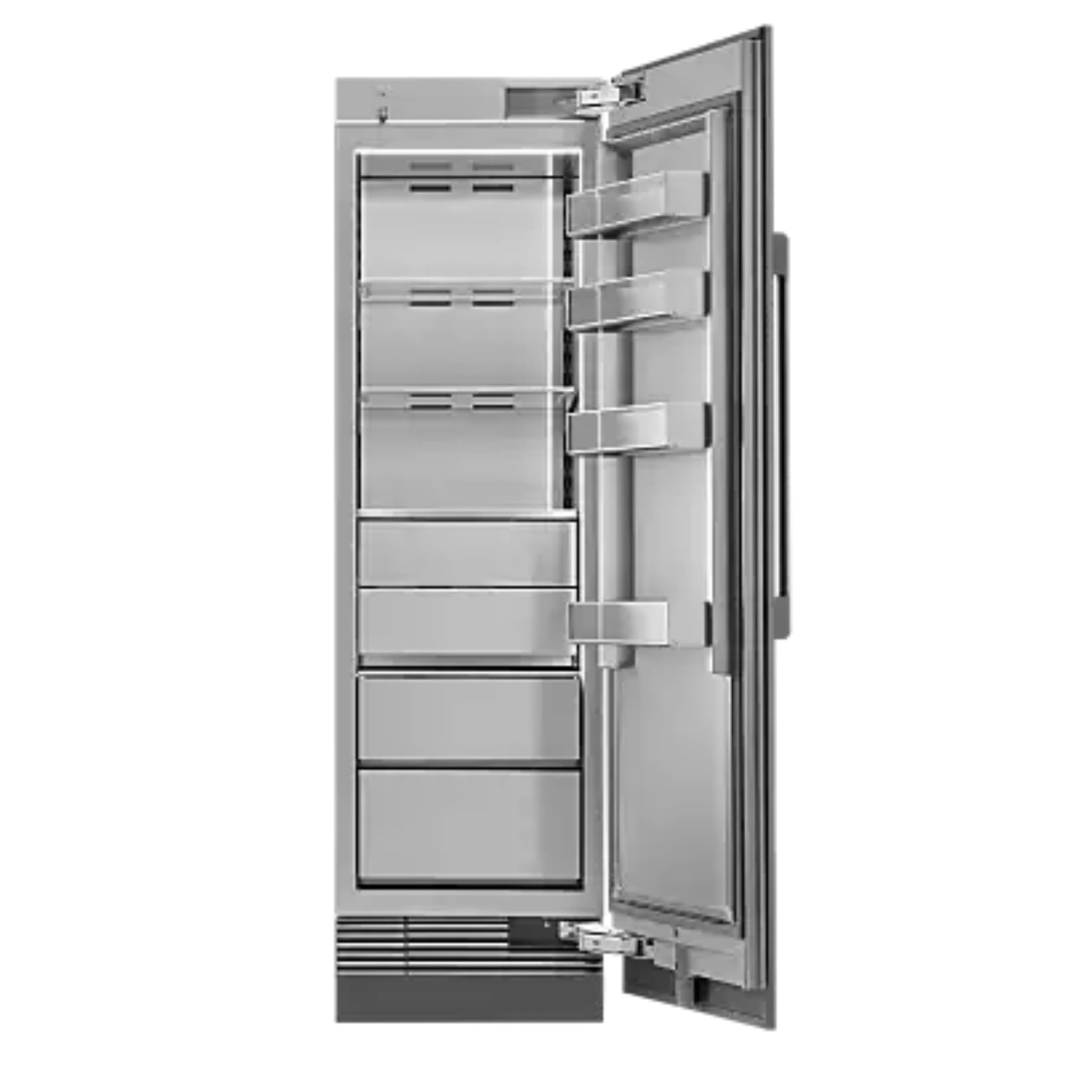

Interior Configuration

• Three full-width shelves
• Spill-resistant tempered-glass shelves with metal trim

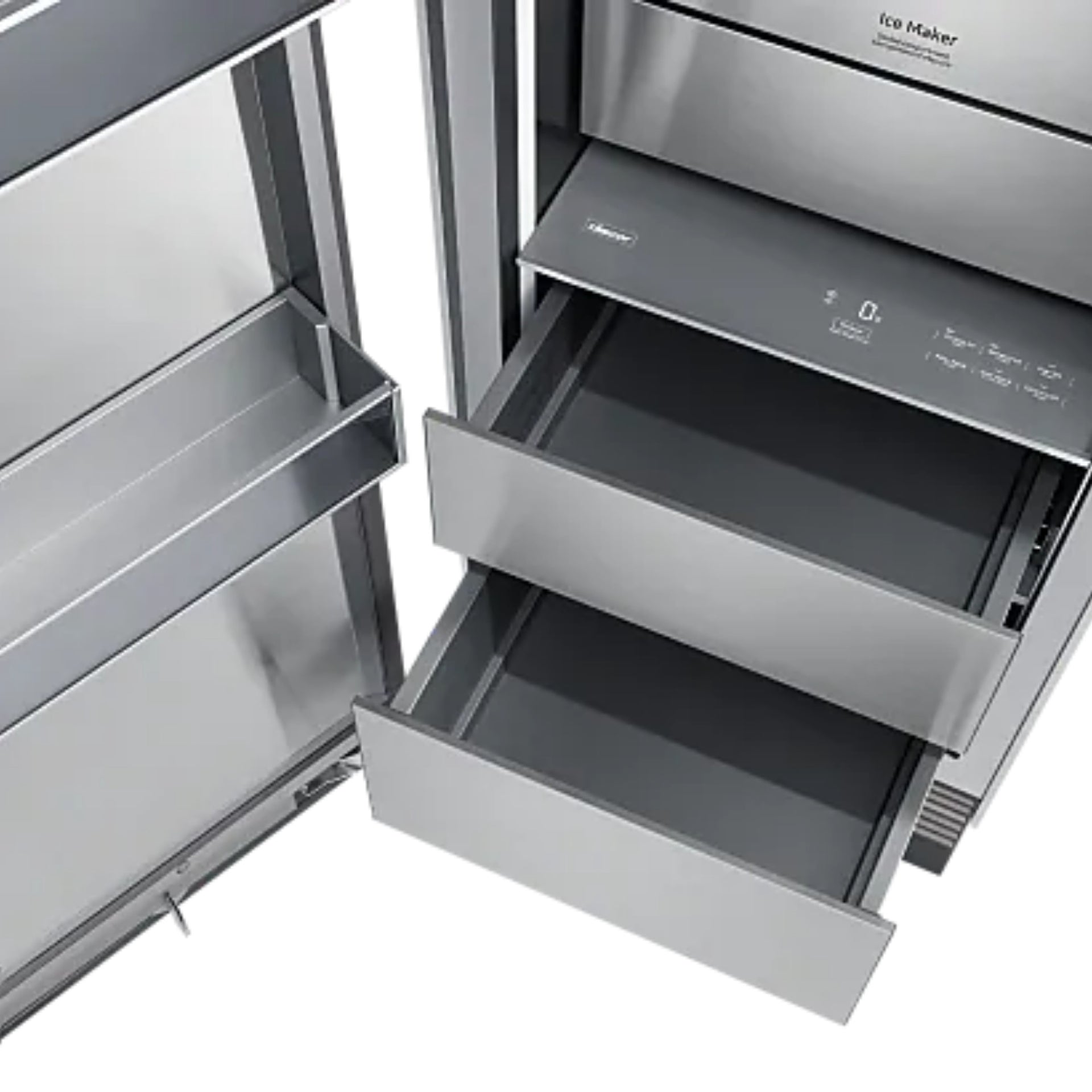

• Two full-extension freezer drawers
• Four door bins
• Hidden storage box with a flip-up cover
• Full-extension drawer access with the door opened 90 degrees

The combination of shelving, door storage, concealed storage and freezer drawers helps keep frozen items visible and organized.

Temperature Range

• Freezer Temperature: -15°C to -23°C
• Power Freeze Setting: -23°C
• Temperature Fluctuation: Approximately ±0.5°C

Dimensions

• Nominal Width: 24 inches
• Actual Width: 23-5/8 inches
• Height: 83-3/8 inches
• Depth: 23-13/16 inches
• Capacity: 13.6 cu. ft.

These are the dimensions published for the Canadian configuration. Specifications for other markets may show slightly different overall width and depth measurements.

Please consult Dacor’s installation instructions for exact cabinet-opening dimensions, ventilation, anti-tip installation, water-line placement, electrical connections, door clearance and custom-panel requirements.

Available Accessories

• Contemporary graphite right-hinge panel kit
• Contemporary silver right-hinge panel kit
• Contemporary graphite handle kit
• Contemporary silver handle kit
• Column pairing kit
• Triple-column pairing kit
• Replacement water filter

Important Panel and Installation Information

This freezer is supplied in a panel-ready configuration. A custom cabinetry panel and handle, or an optional Dacor panel-and-handle kit, may be required to complete the installation.

Confirm all permitted panel dimensions, thicknesses and weight limits before ordering or fabricating the custom panel. A dedicated water connection is required to operate both ice makers.
