Frigidaire FDSR4501AP 24'' Panel Ready Built-In Dishwasher
Model: FDSR4501AP- Description
- Features
- Specifications
-
The Frigidaire 24" Stainless Steel Tub Built-In Panel Panel-ready dishwasher effortlessly blends into your kitchen by letting you attach a separately sold custom panel that matches your cabinets. Plus, it offers better water coverage from BladeSpray Arm, so you get clean dishes, pans, and utensils corner to corner. A level rack dishwasher makes loading and unloading easier. And you can expect your dishes to be dry the first time with EvenDry™ System.
-
14 Place Settings
- Cleans 14 place settings in one cycle.
49 dBA Quiet Operation- So quiet your dishwasher won't disturb you, even if you run it while you're in the room--runs at 49 dBA.
5 Wash Cycles- Features easy-to-use cleaning cycle options for your different cleaning needs including Energy Saver, Heavy Wash, Normal, China Crystal, and Rinse Only.

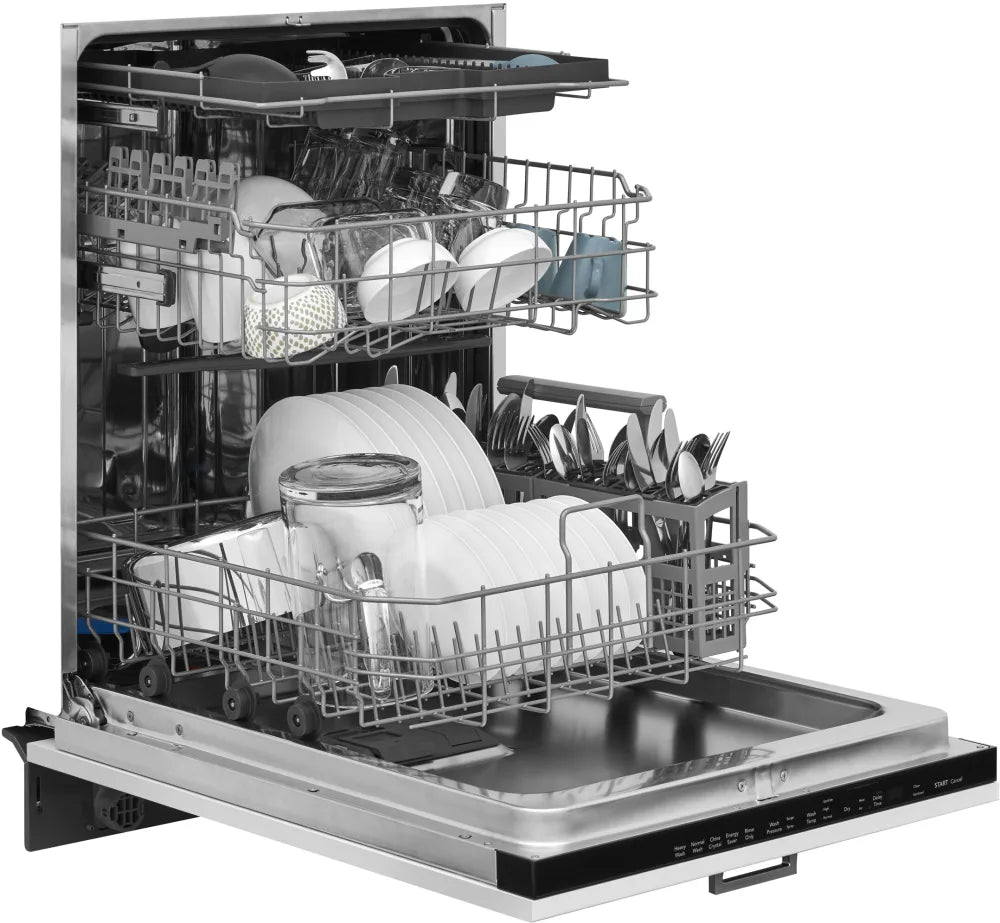

Third Rack- Save time loading and unloading and fit more with a third level rack that easily fits silverware, cooking utensils and tools.
Adjustable Upper Rack- Clean even your largest dishes and bakeware with an adjustable upper level rack that lets you fit more in the bottom rack.
DishSense™ Technology- Skip pre-rinsing with DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
EvenDry™ System- With the fan assisted EvenDry™, air flow is evenly circulated and moisture is removed for clean, spot-free dishes.

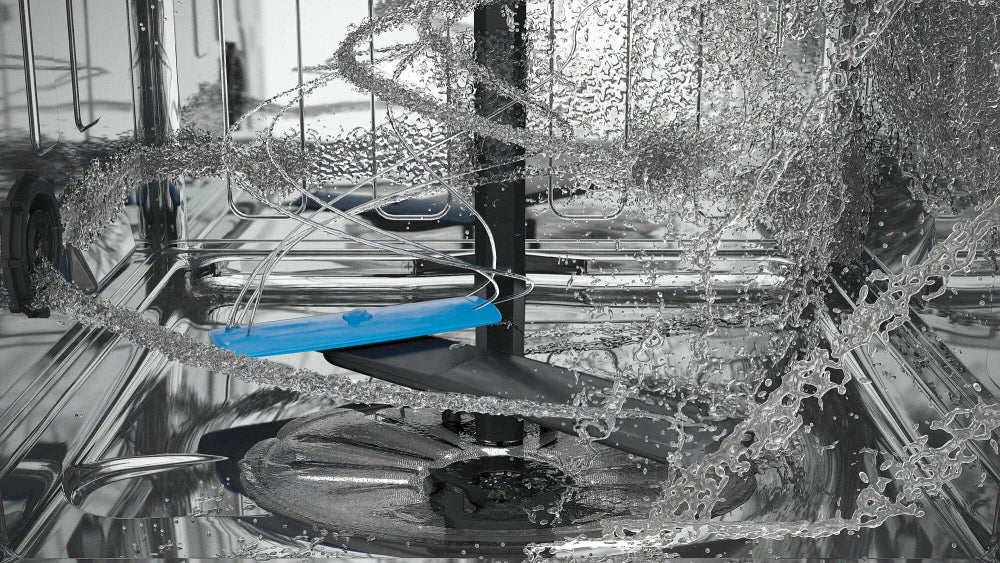

BladeSpray® Arm- Unlike traditional spray arms, BladeSpray® arm rotates in two directions, so you get better water coverage that reaches every corner.
NSF® Certified Sanitize Option- Sanitize option removes 99.9% of common household bacteria.¹

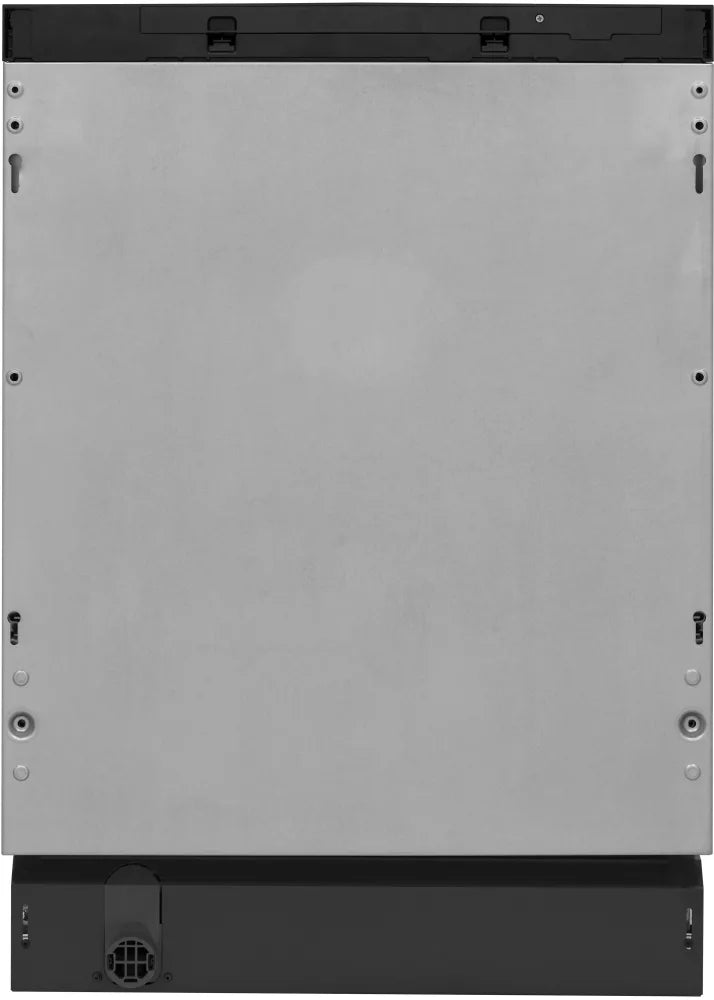

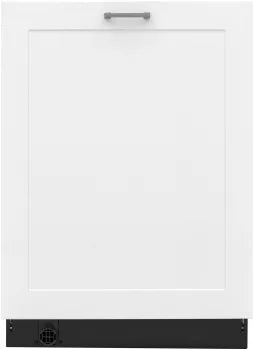

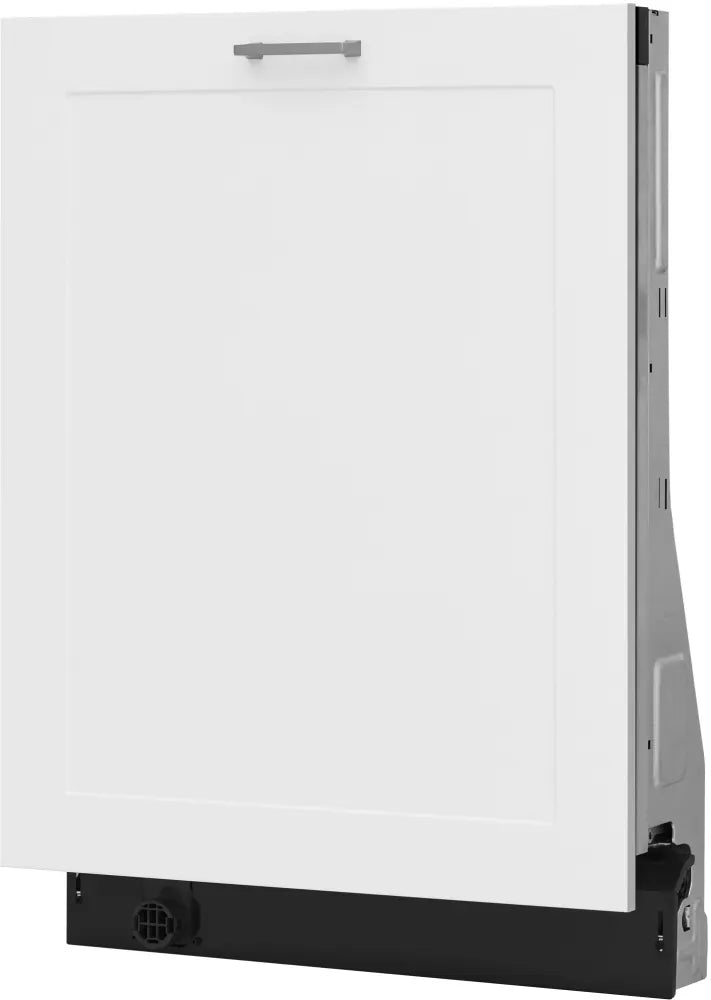

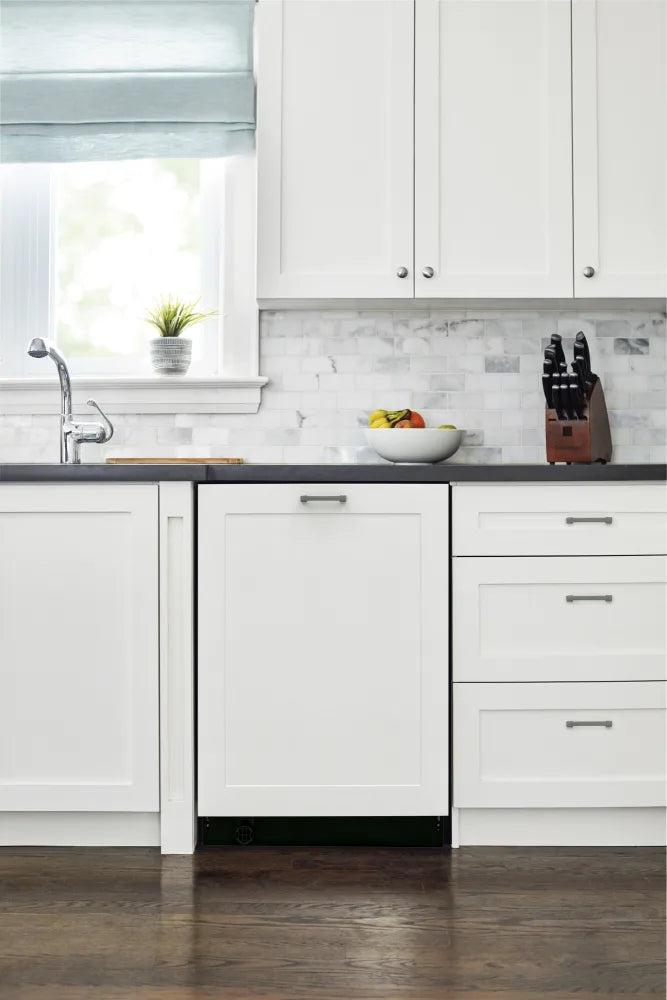

Panel Ready- Install a custom front panel and handle (not included) over the dishwasher door to effortlessly create a built-in look that blends into your kitchen cabinetry.
Additional Features- Nylon Racks
- ENERGY STAR® Certified
Note- ¹Frigidaire's products meet the NSF® testing standards.
-
Additional Features
Automatic Temperature Control: Yes
Detergent Dispenser: Yes
Filter Material: Stainless Steel
Filter Trap: Removable
Filtered Water: 100 %
Hard Food Disposer or Filtration: Yes
Motor Speeds: Multi-Speed
Place Setting Capacity: 14
Rinse Aid Dispenser: Yes
Smart Soil Sensor: Yes
Lower Spray Arm: Blade
Middle Spray Arm: Bi-Beam
Upper Spray Arm: Spray Arm
Tub Color: Stainless Steel
Tub Design: Tall Tub
Tub Material: Stainless Steel
Wash Levels: 5
Wash System: Direct Feed
Water Pressure: 120 psi
Dishwasher Options
Dry - Air: Yes
Dry - Heat: Yes
Dry - Max: No
Drying System: Even Dry
High Temperature: No
Start/Cancel: Yes
Washing Temperature - High: Yes
Washing Temperature - Normal: Yes
Washing Temperature - Sanitize: Yes
Upper Rack
Cup Shelf: Yes
Rack Coating: Nylon
Rack Type: Deluxe
Stemware Holder: Yes
Targeted Wash Zone: No
Controls
Control Location: Top
Delay Start Hours: 1-24 Hours
Digital Display: No
Dishwasher Cycles
China Crystal: Yes
Energy Saver: Yes
Heavy: Yes
Normal: Yes
Number of Cycles: 5
Rinse Only: Yes
Lower Rack
Number of Silverware Basket: 1
Number of Silverware Basket Lids: 2
Rack Coating: Nylon
Rack Type: Deluxe
Third Level Rack: Yes
Exterior
Panel Ready: Yes
Electrical Specifications
Amps @ 120 Volts: 15 Amps
Voltage Rating: 120 V
General Specifications
Sound Level: 49 dBA
Annual Energy: 240 kWh
Prop 65 Label: No
Warranty: Labor 1 Year
Warranty: Parts 1 Year
Performance Certifications and Approvals
CEE Tier: Tier 1
ENERGY STAR Certified: Yes
Dimensions and Volume
Minimum Height: 33 3/4"
Maximum Height: 35 3/4"
Width: 24"
Depth: 24 1/4"
Depth With Door Open: 50 1/4"
Installation
Number of Leveling Legs: 3
Certifications and Approvals
ADA Compliant: No
Safety Certifications and Approvals
UL Listed: Yes
ETL Listed: Yes
NSF Certified: Yes
