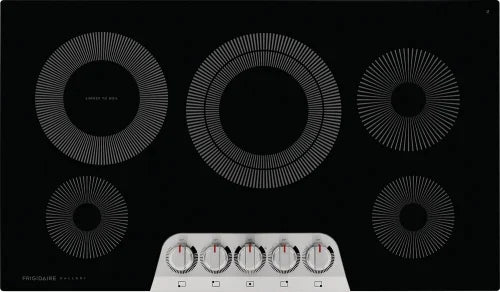

Frigidaire Gallery GCCE3670AS 36" Electric Cooktop in Stainless Steel

• With five elements, this cooktop is designed to handle all of your cooking needs, including a powerful 3,200 Watt EvenTemp™ Element, a Dual Expandable Element, and convenient Keep Warm Zone.

• With EvenTemp™ Cooktop Technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

• The convenient 2-in-1 element expands from 9" for smaller pots to 12" for larger cookware, providing more cooktop flexibility.

• Keep food warm until everything - and everyone - is ready.

• Wipe away spills more easily with the smooth ceramic glass cooktop.

• Backlit LED knobs light up when your element is in use.

• Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.

• Cooktops are approved for installation above any of Frigidaire's electric wall ovens.

• Hot-Surface Indicator Light

• Frigidaire® Fit Promise

General Specifications

Product Line:  Electric Cooktop

Installed Over A Wall Oven:  Yes

Cooking Surface Type:  Smooth

Hot-Surface Indicator Light:  Yes

Power Supply Connection Location:  Right Center

Frigidaire Fit Promise:  Yes

Control Location:  Front

Display Type:  Mechanical

Sabbath Mode:  No

Cooktop Performance

Center Rear Element Burner Size (Large):  12"

Right Front Element Burner Size:  6"

Right Rear Element Burner Size:  7"

Left Front Element Burner Size:  6"

Left Rear Element Burner Size:  9"

Center Rear Element Burner Size (Small):  9"

Right Front Element Burner:  1,200 Watts

Right Rear Element Burner:  1,800 Watts

Left Front Element Burner:  1,200 Watts

Left Rear Element Burner:  3,200 Watts

Center Rear Element Burner (Small):  1,800 Watts

Center Rear Element Burner (Large):  3,000 Watts

Dimensions & Weight

Height:  2 5/8"

Width:  36 3/4"

Depth:  21 3/8"

Minimum Cutout Width:  33 7/8"

Minimum Cutout Depth:  19 1/8"

Maximum Cutout Width:  36 1/8"

Maximum Cutout Depth:  20 1/2"

Product Weight:  35 lbs.

Electrical Specifications

Amps @ 240 Volts:  43.3 Amps

Connected Load @ 240V:  10.4 kW

Minimum Circuit Required:  50 Amps

Voltage Rating:  240 V

Safety Certifications and Approvals

CSA Listed:  Yes

UL Listed:  Yes

Certifications and Approvals

ADA Compliant:  Yes

Warranty

Parts and Labor:  1 Year
