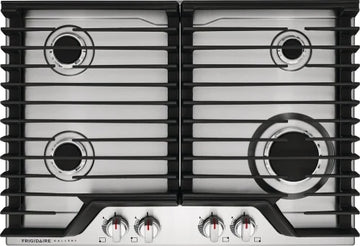

Frigidaire Gallery GCCG3046AS 30" Gas Cooktop in Stainless Steel

• From boil to simmer, get the job done right with the 18,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.

• Move heavy pots and pans without lifting with continuous, corner-to-corner grates.

• Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.

• Backlit LED knobs light up when the cooktop is in use.

• Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

• Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

• Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.

• Cooktops are approved for installation above any of Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.

• Frigidaire® Fit Promise

• LP Conversion Kit Included

• CSA Listed

• UL Listed

• ADA Compliant

Cooktop Specifications

Grate Material:  Cast-Iron

Grate Quantity:  2

Grate Style:  Continuous

Backlit Knobs:  Yes

Frigidaire Fit Promise:  Yes

Right Front Element Burner:  18,000 BTU

Right Rear Element Burner:  5,000 BTU

Left Front Element Burner:  9,500 BTU

Left Rear Element Burner:  9,500 BTU

Dimensions

Height:  2 7/16"

Width:  30"

Depth:  21"

Cutout Height:  7 1/2"

Minimum Cutout Width:  27 1/4"

Minimum Cutout Depth:  19"

Maximum Cutout Width:  29 5/16"

Maximum Cutout Depth:  20"

Electrical Specifications

Minimum Circuit Required:  5 Amps

Voltage Rating:  120 V

Installation

Power Cord Included:  Yes

Gas Supply Connection Location:  Top Right

Installed Over a Wall Oven:  Yes

LP Conversion Kit Included:  Yes

Power Supply Connection Location:  Top Right

Safety Certifications and Approvals

CSA Listed:  Yes

UL Listed:  Yes

Certifications and Approvals

ADA Compliant:  Yes

Warranty

Warranty - Parts:  1 Year

Warranty - Labor:  1 Year
