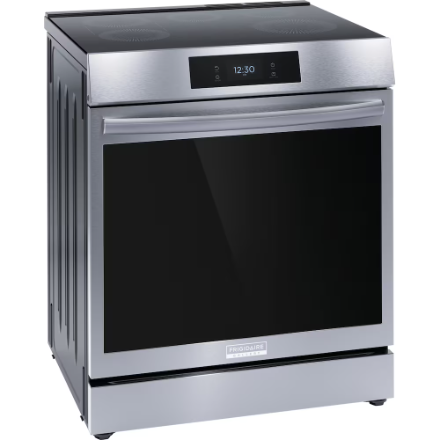

Product Line - Induction Range
Power Type - Electric 240v
Size - 30"
Installation Type - Free-Standing
Factory - Springfield
Color - Stainless Steel
Cooktop
Auto Pan Detect - Yes
Cooking Surface Type - Smooth
Element On Indicator Light - Yes
Hot-Surface Indicator Light - Yes
Cooktop Performance
Right Front Element Burner Size - 8 3/10"
Right Rear Element Burner Size - 5 1/2"
Left Front Element Burner Size - 7"
Left Rear Element Burner Size - 7"
Center Rear Element Burner Size - 5 1/2"
Right Front Element Burner - 2,300 / 3,600 Watts (Boost)
Right Rear Element Burner - 1,400 / 2,500 Watts (Boost)
Left Front Element Burner - 1,800 / 2,800 Watts (Boost)
Left Rear Element Burner - 1,800 / 2,800 Watts (Boost)
Center Element Burner - 1,400 / 2,500 Watts (Boost)
Cooking Controls
Air Fry - Yes
Air Sous Vide - Yes
Bake - Yes
Bake Time - Yes
Bread Proof - Yes
Broil - Yes
Child Lock - Yes
Clock - Yes
Convection Bake - Yes
Convection Roast - Yes
Cook Time - Yes
Cooktop Lockout - Yes
Dehydrate - Yes
Delay Clean - Yes
Delay Start - Yes
Door Lock - Yes
Hot Surface - Yes
Keep Warm - Yes
Kitchen Timer - Yes
Light - Yes
Lockout - Yes
No Preheat - Yes
Oven Light - Yes
Oven Lock - Yes
Perfect Turkey - Yes
Preheat - Yes
Probe - Yes
Self Clean - Yes
Set Clock - Yes
Slow Cook - Yes
Start - Yes
Steam Bake - Yes
Steam Clean - Yes
Steam Roast - Yes
Temperature Display - Yes
Timed Bake - Yes
Timer On / Off - Yes
User Preferences - Yes
Cooking Controls Function
Delayed Bake - Yes
Program Fahrenheit or Celsius - Yes
Silent Control Panel - Yes
Timed Cooking - Yes
Oven
Bake Element - 2500 Watts
Bake Element Pass - 8
Bake Element Type - Hidden
Broil Element - 4000 Watts
Broil Element Pass - 6
Cleaning System - Yes
Convection - Yes
Convection Element - 3800 Watts
Convection Type - Total
Number of Convection Fans - 1
Number of Rack Positions - 8
Oven Interior Color - Midnight Black
Oven Light Quantity - 2
Oven Light Type - Halogen
Oven Light Watts - 40 Watts
Rack Position Type - Embossed
Rack Type 1 - Flat
Rack Type 1 Quantity - 2
Drawer
Drawer Handle Style - Integrated
Drawer Type - Storage
Controls
Control Lock - Yes
Sabbath Mode - Yes
Display
Control Location - Front
Cooktop Control Location - Top
Display Light Color - White
Cooktop Light Color - Red
Display Type - Capacitive Touch
Exterior
Exterior Finish - Smudge-Proof® Stainless Steel
Dimensions and Volume
Minimum Height - 35 3/8"
Maximum Height - 36 3/8"
Width - 30"
Depth - 26"
Depth With Door 90° Open - 47 5/16"
Depth With Handle - 28 1/2"
Oven Interior Height - 21 1/4"
Oven Interior Width - 25 3/16"
Oven Interior Depth - 19 7/8"
Oven Capacity - 6.2 Cu. Ft.
Electrical Specifications
Connected Load @ 240V - 15 kW
Minimum Circuit Required - 40 Amps
Voltage Rating - 240 V
Installation
Adjustable Leveling Legs - Yes
Power Cord Included - Yes
General Specifications
Product Weight - 178 lbs
Prop 65 Label - Yes
Warranty – Labor - 1 Year
Warranty – Parts - 1 Year
Certifications and Approvals
ADA Compliant - Yes
Star-K Certification - Yes
UL Listed - Yes
RoHS - Yes
