ACCESSORIES
Air Fry Basket - Optional- JXAFTRAY1VSS
Optional Kits - CXFCHHKPMBT Brushed Black
CXFCHHKPMBZ Brushed Bronze
CXFCHHKPMCU Brushed Copper
CXFCHHKPMSS Brushed Stainless
CXFCHHKPMCG Brushed Brass
CXFCHHKPMFB Flat Black
Probe Accessory - Sous Vide JXPROBE1 - optional
Trim Kit - Optional
JXFILLR1SS
APPEARANCE
Color Appearance - Stainless Steel
Control Knobs - Weighted Stainless Steel Appearance
Handle Color - Brushed Stainless
Handle - Customizable
Consumer Removable
Café Pro Style
Installation - Flush Appearance
Free-standing cut-out
Oven Door Features - Big View Oven Window
Full-Wrapped Metal Frame
Full-Wrapped Stainless
Textured Steel Side Panels - Yes
CAPACITY
Total Capacity (cubic feet) - 5.70 cu ft
FEATURES
Configuration - Range with Warming Drawer
Connected Capabilities - Amazon Alexa
The Google Assistant
Hestan Cue
IFTTT
Fresco
Innit
DiGiorno
Sonos
In-Oven Camera

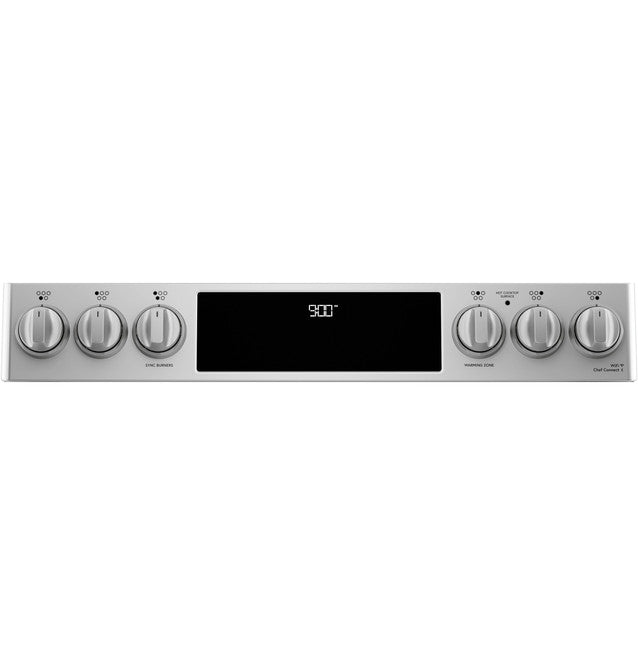

Control Location - Front controls
Control Type - Digital Temperature Display
Electronic
Touchpads
Cooking Syste - True Convection with Precise Air
Cooking Technology - Convection

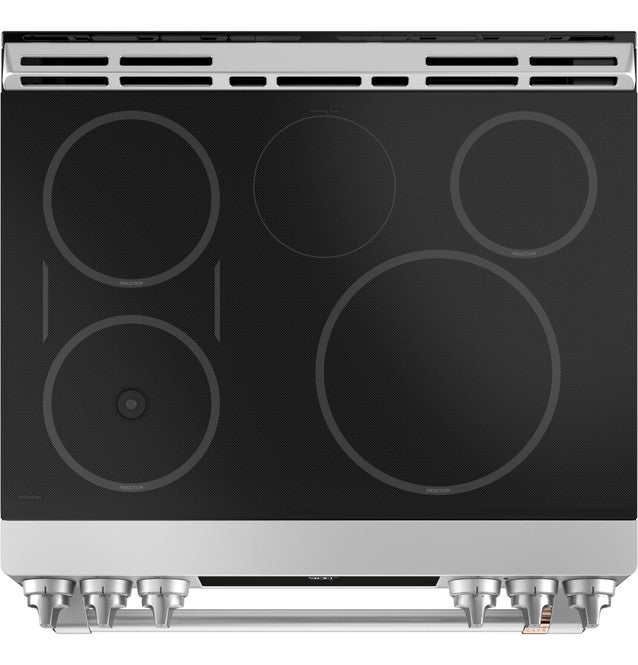

Cooktop Burner Type - Induction
Cooktop Surface - Edge-to-Edge
Gray Patterned Ceramic Glass
Cooktop Type - Induction
Drawer Type - Warming Drawer
Element – Center - 6" 100W Warming Zone
Element - Left Front - 8" 2500W Sync Element with Temp Sensor
Element - Left Rear - 8" 2500W Sync Element
Element - Right Front - 11" 3700W Power Boil
Element - Right Rear - 6" 1800W
Fuel Type - Electric
Heating Element "ON" Indicator Light - 5
Hot Surface Indicator Lights - 1
Melt Setting - Yes
OU Certified - No
Oven Cleaning Type - Steam Clean
Self-clean *Requires download via WIFI connection
Oven Control Features - Audible Preheat Signal
Fast Preheat
Hi / Low Broil
Oven Camera
Oven "ON" Light
Pan Temperature Sensor
Precision Cooktop Sensor
Steam Clean
Temperature Probe
Auto Oven Shut-Off with Override
Auto Recipe Conversion
C° or F° Programmable
Certified Sabbath Mode
Chef Connect
Control Lock Capability
Delay Bake Option (Time Bake)
Electronic Clock & Kitchen Timer
Oven Cooking Modes - Baked Goods
Turkey Mode
No Preheat Air Fry
*Some features require connection to SmartHQ app
Convection Bake Multi-Rack
Convection Roast
Frozen Snacks Multi Rack
Frozen Snacks Single Rack (No Preheat)
Frozen Pizza Multi Rack
Frozen Pizza Single Rack (No Preheat)
Proof
Warming
Oven Features - 8-Pass Broil Element
Hidden Bake
Oven Interior - Black
1 Incandescent Light
In Oven Camera
Oven Rack Features - 1 Self-Clean Heavy-Duty Roller Rack
2 Self-Clean Heavy-Duty Oven Racks
Oven Rack Positions (Single or Upper/Lower) - 6
Product Type - Slide-In Single Oven
Sabbath Mode - Yes
Warming Drawer Features - (3) levels
WiFi Connect - Built-In
POWER / RATINGS
Amp Rating at 208V - 40
Amp Rating at 240V - 40
Bake Wattage - 2850W
Broiler Wattage - 4000W
Convection Wattage - 2500W
KW Rating at 208V - 11.3
KW Rating at 240V - 13.6
WARRANTY
Labor Warranty Limited - 1-year entire appliance
Parts Warranty Limited - 1-year entire appliance
WEIGHTS & DIMENSIONS
Approximate Shipping Weight - 256 lb
Cabinet Width - 30 in
Depth with Door Open - 47 1/2 in
Depth Without Handle - 26 7/8 in
Height to Cooking Surface (in.) - 36 1/4 +/- 1/4
Height to Top of Rear Vent Trim - 37 3/8 in
Net Weight - 236 lb
Oven Interior Dimensions (W x H x D) (in.) - 24 x 19-7/8 x 20-5/8
Overall Depth - 29 1/2 in
Overall Height - 37 3/8 in
Overall Width - 29 7/8 in
