GE JEP5030STSS 30" Built-In knob Control Electric Cooktop in Stainless Steel
Model: JEP5030STSS- Description
- Features
- Specifications
-
GE's JEP5030ST cooktop is designed to look great in any kitchen space. This cooktop has Five Elements and Knob (Infinite Switch) Controls, which allow you to set and adjust burners for maximum control. The Power Boil Dual Ring Element accommodates a variety of pots and pans while providing the necessary high heat to speed up the boiling process. This cooktop also has a control lock, a timer, warm and melt settings for low heat, and hot surface indicator lights.
-
Easy Clean Surface
- A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

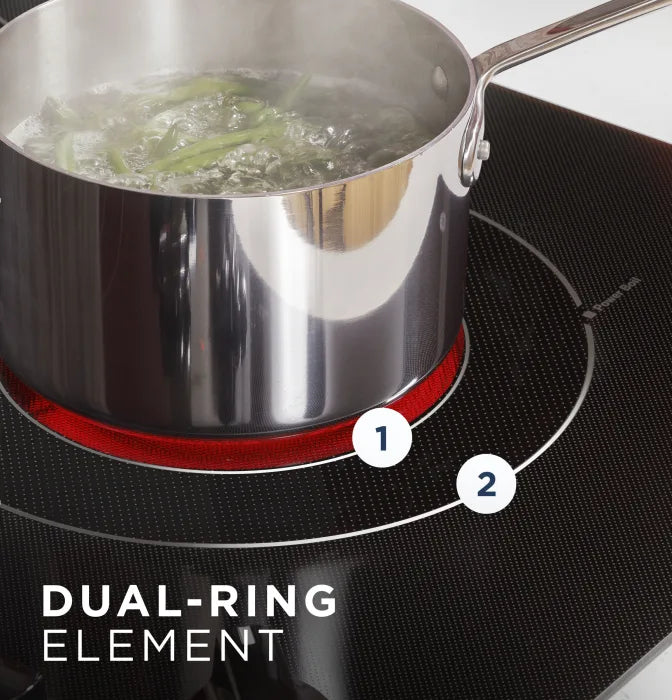

Power Boil on Dual-Ring Element (3,100W)- Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element
Additional Power Boil Dual-Ring Element (2,200W)- Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes
Keep Warm Setting- This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

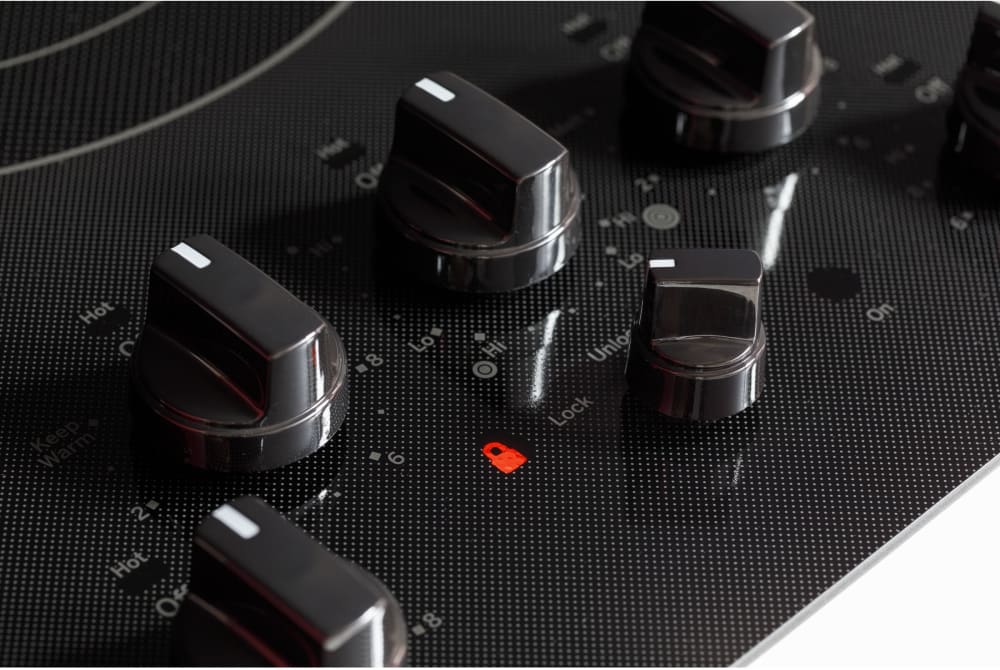

Control Lock- Protect against unintentionally turning your cooktop on with a safety control lock setting
Hot Surface Indicator Lights- A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
Fit Guarantee- This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100
Flexible Cooktop- 5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
Melt Setting- Gently melt delicate foods without scorching thanks to this optimal melt option cooktop
-
Features
Product Type: Cooktop
Fuel Type: Electric
Cooktop Type: Radiant Smoothtop
Control Location: Front Center
Cooktop Burner Type: 5 Ribbon, Smoothtop

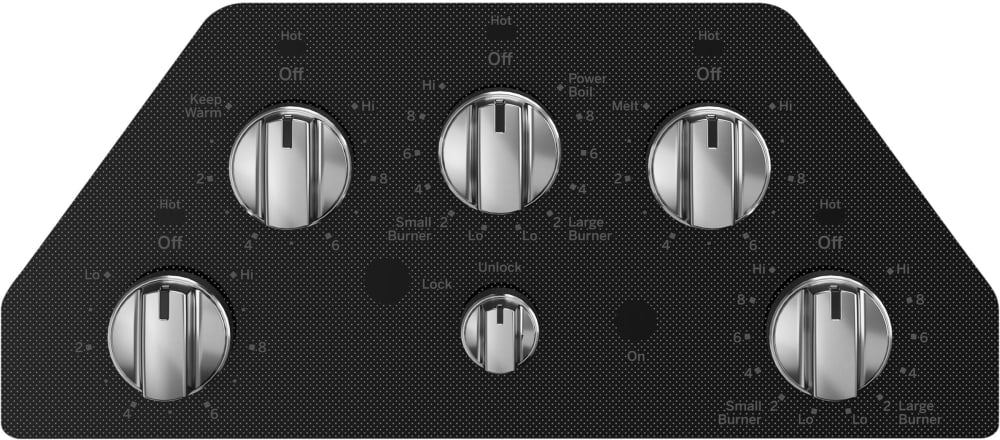

Control Type: Knob (Infinite Switch)
Timer: Yes
Keep-Warm Setting: Yes
Melt Setting: Yes
Indicator Lights: 5 Hot Surface, Red, Surface Element "ON"
Power/Ratings
Recommended Circuit Breaker (Amps) at 240V: 40
Max. Connected Load (kW) at 240V: 9.6
Max. Current Draw (Amps) at 240V: 40
Max. Connected Load (kW) at 208V: 7.2
Recommended Circuit Breaker (Amps) at 208V: 40
Max. Current Draw (Amps) at 208V: 34.6
Weights and Dimensions
Approximate Shipping Weight: 40 lb.
Net Weight: 35 lb.
Cooktop Size: 30"
Overall Height: 3 1/4"
Cabinet Width: 30"
Cutout Dimensions (Width x Depth): 28"
Overall Width: 29 3/4"
Overall Depth: 21 3/8"
Certifications
Claims & Certifications: ADA Compliant, UL, CUL
Warranty
Parts Warranty: Limited 1-year Entire Appliance
Labor Warranty: Limited 1-year Entire Appliance
