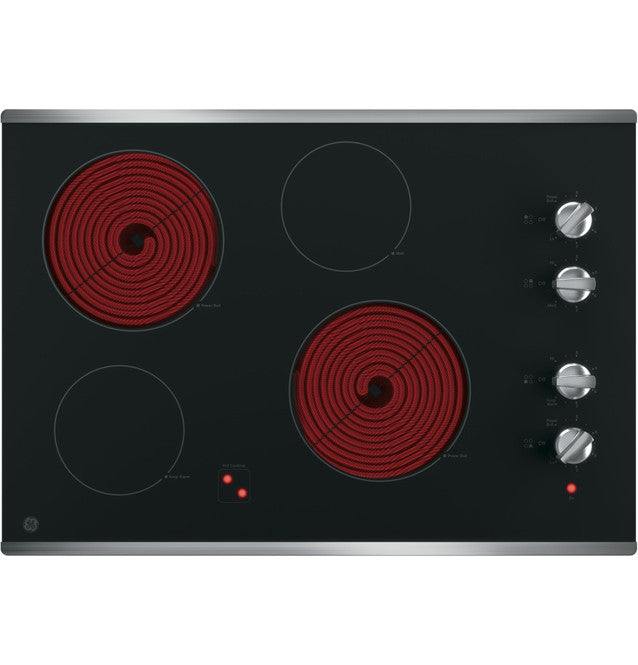

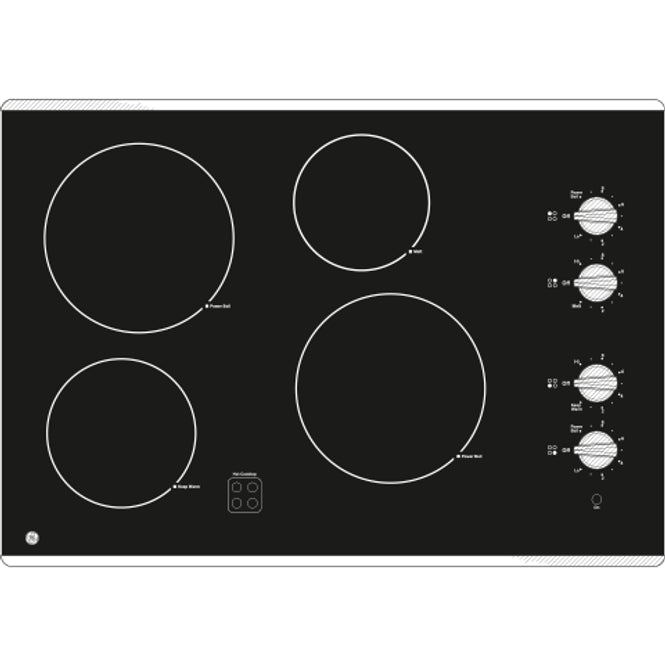

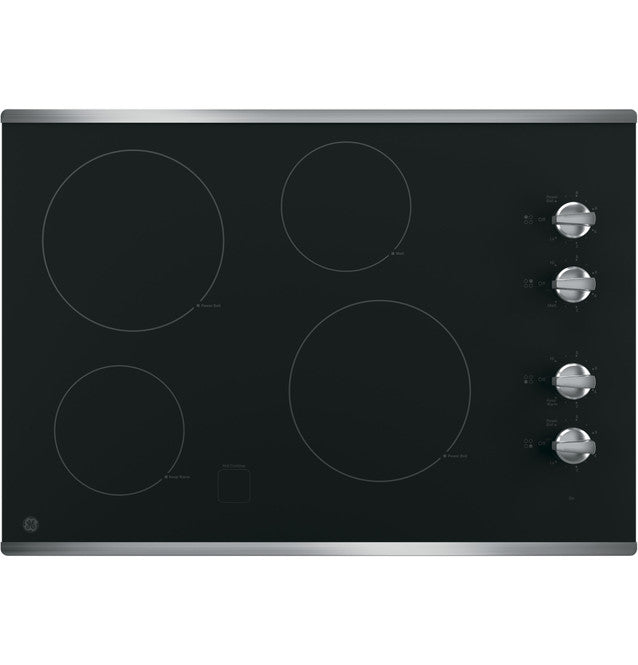

GE JP3030SJSS 30" Built-In Knob Control Electric Cooktop in Stainless Steel

• Cook foods quickly and evenly on this sleek, glass surface.

• Get rapid heat from these 2 powerful 8" 2,500-watt elements.

• A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting.

• Gently melt delicate foods without scorching thanks to a convenient melt setting.

• Know when elements are too hot to touch with a quick glance.

• A light lets you know when an element is active.

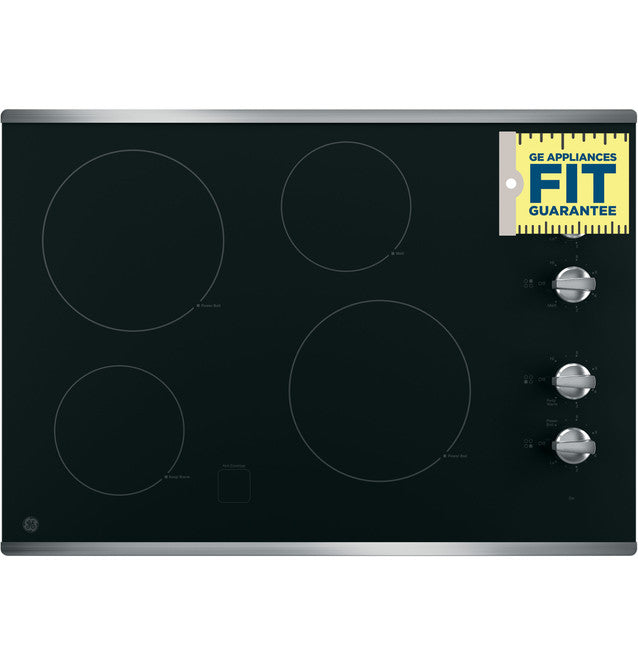

• Replacing a similar cooktop from GE Appliances or another brand GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications.

APPEARANCE

Color Appearance - Stainless Steel on Black

Control Knobs - Stainless Steel Appearance

Frame Color / Material - Stainless Steel

FEATURES

Control Location - Right Side

Control Type - Knob (Infinite switch)

Cooktop Burner Type - 4 Ribbon

Smoothtop

Cooktop Control Features - Keep-Warm Setting

Melt Setting

Cooktop Surface - Black Ceramic Glass with Stainless Steel Trim

Cooktop Type - Radiant Smoothtop

Dishwasher Safe Knobs - Yes

Element - Left Front - 6" 1200W

Element - Left Rear - 8" 2500W Power Boil

Element - Right Front - 8" 2500W Power Boil

Element - Right Rear - 6" 1200W

Filler trim kit - JXTR32B

Fuel Type - Electric

Indicator Lights - 4 Hot Surface

Surface Element - "ON"

Red

Melt Setting - Yes

POWER / RATINGS

Max. Connected Load (kW) at 208V - 5.6

Max. Connected Load (kW) at 240V - 7.4

Max. Current Draw (Amps) at 208V - 26.7

Max. Current Draw (Amps) at 240V - 30.8

Recommended Circuit Breaker (Amps) at 208V - 30

Recommended Circuit Breaker (Amps) at 240V - 40

WARRANTY

Labor Warranty Limited - 1-year entire appliance

Parts Warranty   Limited - 1-year entire appliance

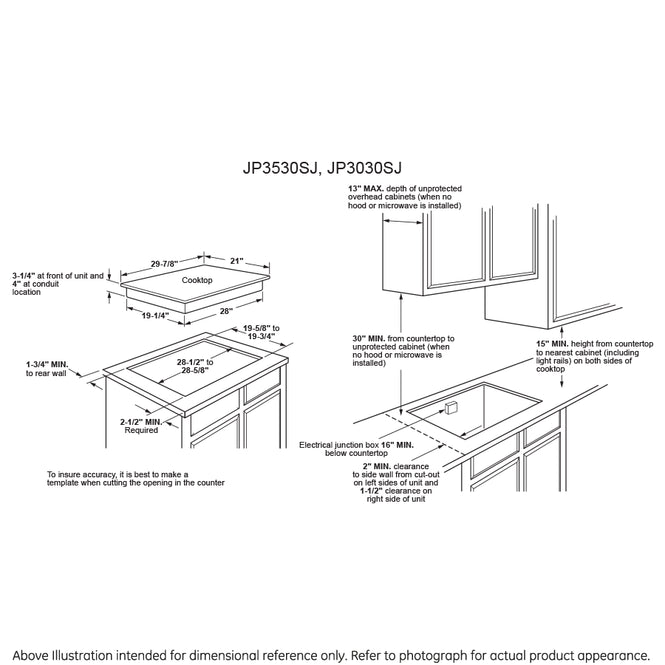

WEIGHTS & DIMENSIONS

Approximate Shipping Weight - 43 lb

Cabinet Width - 30 in

Cooktop Size - 30 in

Cutout Depth (in) - 19-5/8

Cutout Width (in) - 28-1/2

Net Weight - 37 lb

Overall Depth - 21 in

Overall Height - 4 in

Overall Width - 29 7/8 in
