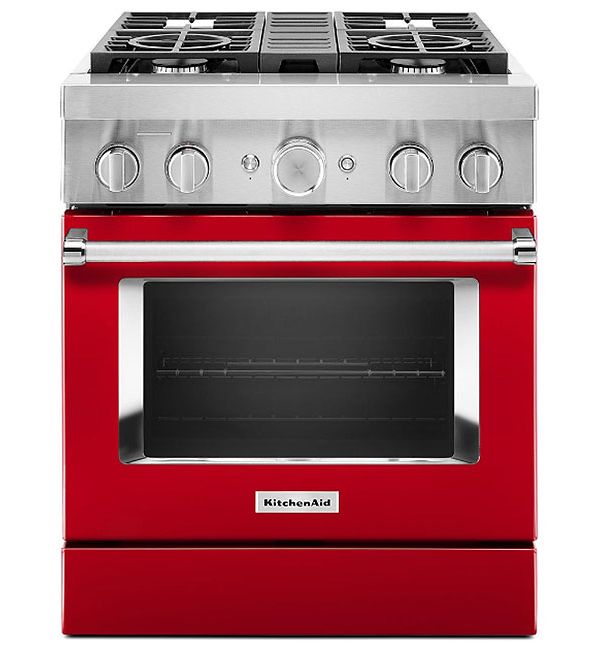

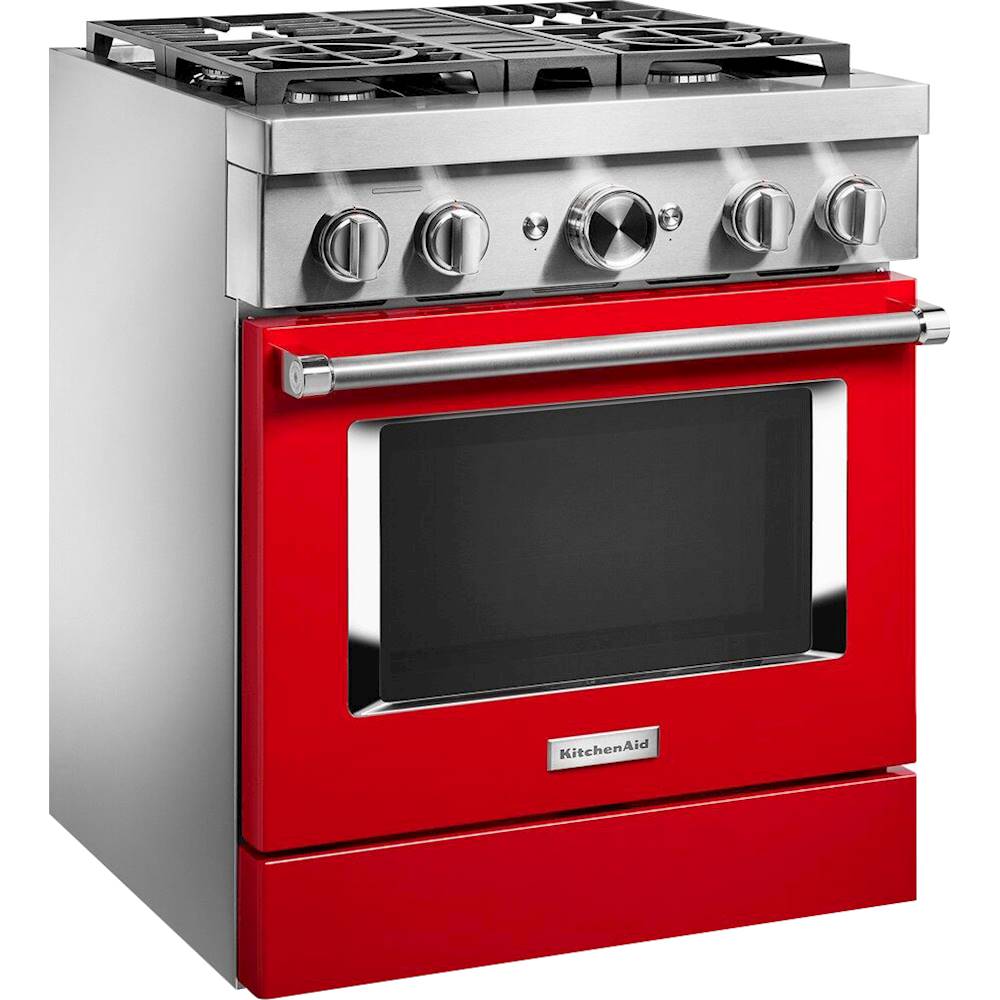

KitchenAid KFDC500JPA 30'' Smart Commercial-Style Dual Fuel Range with 4 Burners in Passion Red

Model: KFDC500JPA
  • Description
  • Features
  • Specifications
  • Empower your creativity with a 30-inch KitchenAid® Commercial Style Range with 4 burners. This dual fuel range combines a gas cooktop with the even baking of an electric oven. Two versatile 20,000 BTU Ultra Power™ Dual-Flame Burners offer the power and precision to sear, simmer, stir-fry and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting.
  • Dual Fuel Range
    satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

    Even-Heat™ True Convection
    features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

    Smart Appliance
    Lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off (Coming soon). Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

    Two 20,000 BTU Ultra Power™ Dual-Flame Burners
    give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

    5,000 BTU Simmer & Melt Burner
    with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

    Three-Level Convertible Grates
    with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

    Dual-Concentric Oven Knob
    provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

    SatinGlide™ Roll-Out Extension Rack
    makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

    4.1 Cu. Ft. Capacity
    provides ample room to cook large dishes, such as a whole turkey or roast.

    EasyConvect™ Conversion System
    Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
  • General


    Appliance Color- Red

    Type- Single

    Weight- 408


    Width- 29.88"

    Depth- 30.25"

    Depth Without Handles- 27.75

    Depth With Door at 90 Degrees- 46.5

    Height- 36"

    Interior Width- 24

    Interior Depth- 16.3

    Interior Height -14.3

    Cutout Width- 30

    Cutout Depth- 24

    Cutout Height- 36

    Tech Specs

    Fuel Type- Dual Fuel

    Capacity- 4.1 cu.ft.

    Voltage- 240

    Amps- 40 Amps

    Burner Set 1 QTY- 1

    Burner Set 1 Output- 20000 BTU

    Burner Set 2 QTY- 1

    Burner Set 2 Output- 5000 BTU

    Burner Set 3 QTY- 1

    Burner Set 3 Output- 20000 BTU

    Burner Set 4 QTY- 1

    Burner Set 4 Output- 5000 BTU


    Installation Type- Freestanding

    Burner Type- Sealed Burner

    Number of Burners- 4 Burners

    Cooktop Control Type- Knobs

    Broiler Element Location- Top

    Continuous Grates- Yes

    Number of Slide Racks- 2

    LP Conversion- Optional (Included)

    Use Rating- Residential

    Compatible Home Automation Systems- Amazon Alexa, Google Assistant


    Cooking Surface Features- Continuous Grates, Hot Surface Indicator Light, Wifi Connection

    Oven Features- Convection, Freestanding, Interior Oven Light, Removable Door, Sabbath Mode, Self Cleaning, Viewing Window, Wifi Connection
