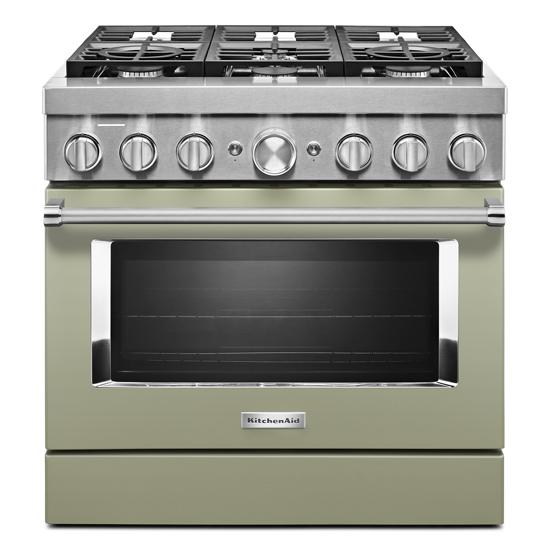

KitchenAid KFDC506JAV 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners in Matte Avocado Cream

Model: KFDC506JAV
  • Description
  • Features
  • Specifications
  • Expand your skills with a 36 in. KitchenAid Commercial Style Range with 6 burners. This dual fuel range combines a gas cooktop with the even baking of an electric oven. Two 20,000 BTU Ultra Power Dual-Flame Burners offer the power and precision to successfully sear, simmer, stir-fry and saute. Even-Heat True Convection helps you achieve more consistent baking and roasting.
  • Dual Fuel Range
    satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

    Even-Heat™ True Convection
    features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

    Smart Appliance
    Lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off (Coming soon). Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

    Two 20,000 BTU Ultra Power™ Dual-Flame Burners
    give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

    5,000 BTU Simmer & Melt Burner
    with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

    Three-Level Convertible Grates
    with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

    Dual-Concentric Oven Knob
    provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

    SatinGlide™ Roll-Out Extension Rack
    makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

    5.1 Cu. Ft. Capacity
    provides extra room for multiple dishes, so you can cook a whole turkey or roast and sides all at once.

    EasyConvect™ Conversion System
    Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.

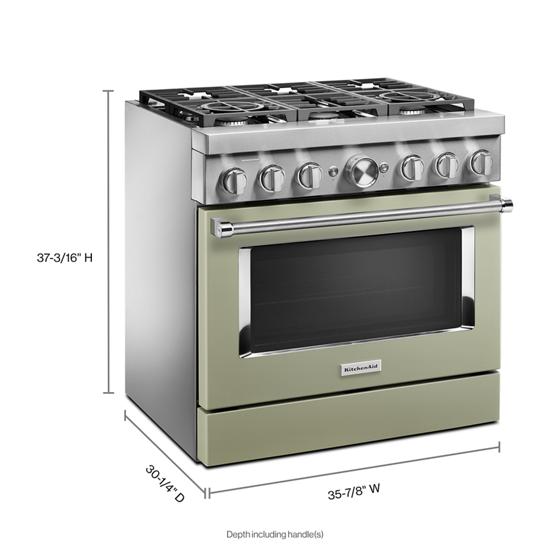

  • Dimensions

    Depth With Door(s) Open 90 Degrees (In.)-46.5

    Oven Interior Depth (in)-16.3

    Oven Interior Height (in)-14.3

    Oven Interior Width (in)-29.9

    Product Depth (in.)-30.25

    Product Height (in.)-36

    Product Width (in.)-35.88

    Range Size-36 in.


    Amperage (amps)-40

    Appliance Category-Range

    Appliance Type-Dual Fuel Range

    Broiler Location-Oven

    Burner Grate Material-Enameled Cast Iron

    Burner No.1 BTU-20000

    Burner No.2 BTU-15000

    Burner No.3 BTU-5000

    Burner No.4 BTU-15000

    Burner No.5 BTU-20000

    Burner No.6 BTU-15000

    Burner Type-Sealed

    Capacity of Oven (cu. ft.)-5.1

    Cleaning Type-Self Cleaning

    Color of Cooktop-Black

    Color/Finish-Avocado Cream

    Color/Finish Family-Green


    Control Type-Manual

    Controls Location-Front Control

    Cooking Process-True Convection

    Cooktop Features-Dishwasher Safe Grates,Indicator Light- Heating Element On,LP Convertible,Sealed Burners

    Cooktop Surface Type-Recessed

    Drawer Type-No Drawer

    Fuel Type-Dual Fuel

    Ignition Type-Continuous Spark

    Included-Propane (LP) Conversion Kit

    Number of Burners-6 burner

    Number of Oven Racks-3

    Number of Rack Positions-6

    Oven Cleaning Options-Self-Cleaning

    Oven Features-Automatic Convection Conversion,Broiler in Oven,Gliding/Roll Out Racks,Hidden Bake Element,Temperature Control

    Oven Settings-Keep Warm,Proofing Mode,Sabbath Mode

    Power Options-Hardwired,Plug-in

    Product Weight (lb.)-389lb

    Range Type-Freestanding

    Remote Access-Remote Access

    Requires Hub?-No Hub Required


    Smart Home-Smart Home Enabled

    Smart Home Protocol-Wi-Fi

    Voice Control Hub Required-No Hub Required for Voice Control

    Voltage (volts)-240/208

    Works With-Alexa, Google, Proprietary App, Siri
