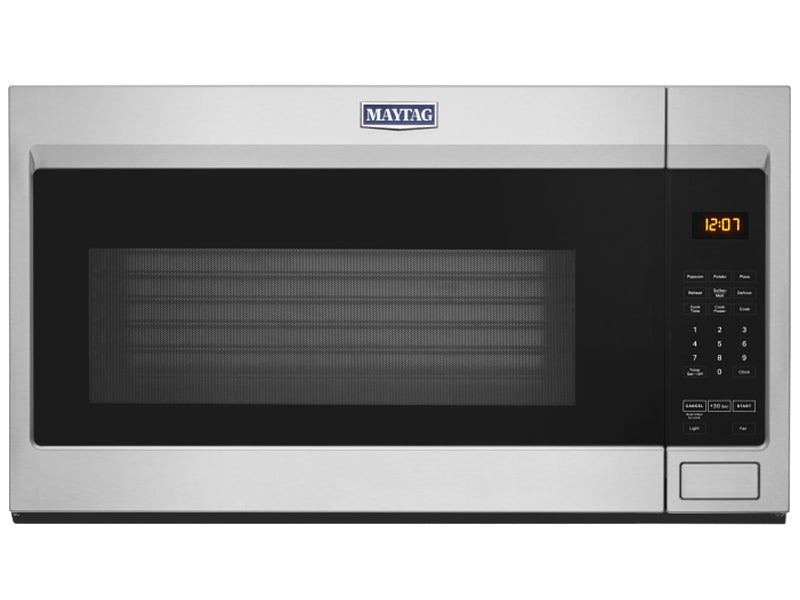

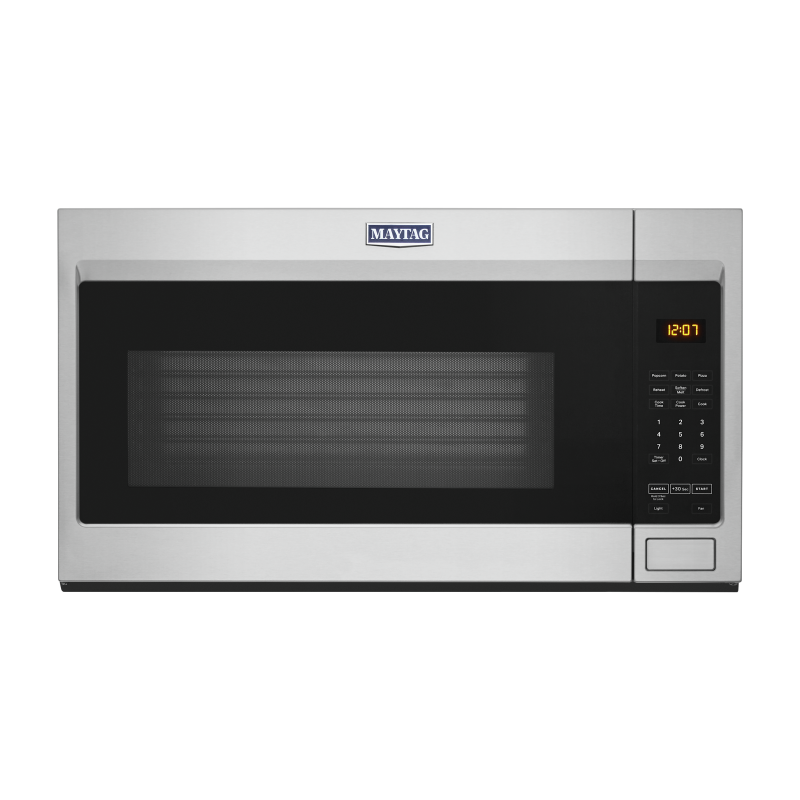

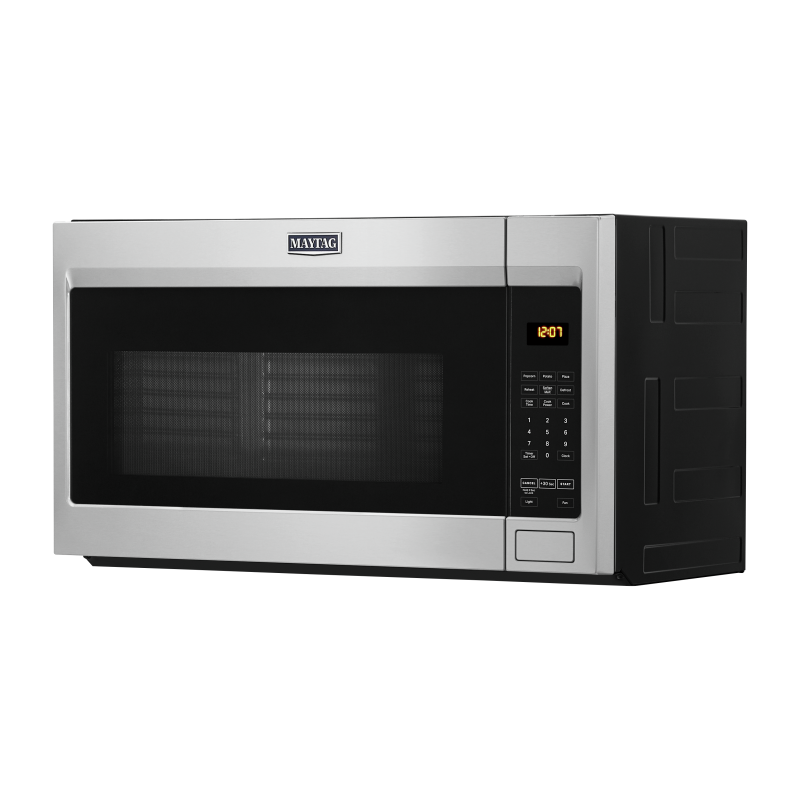

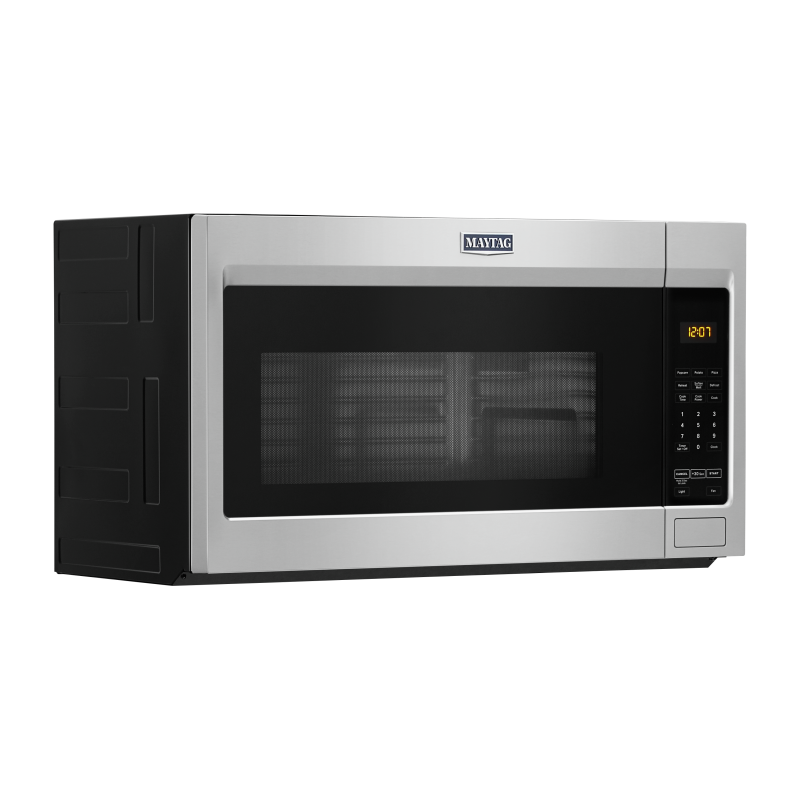

Microwave Hood Combination

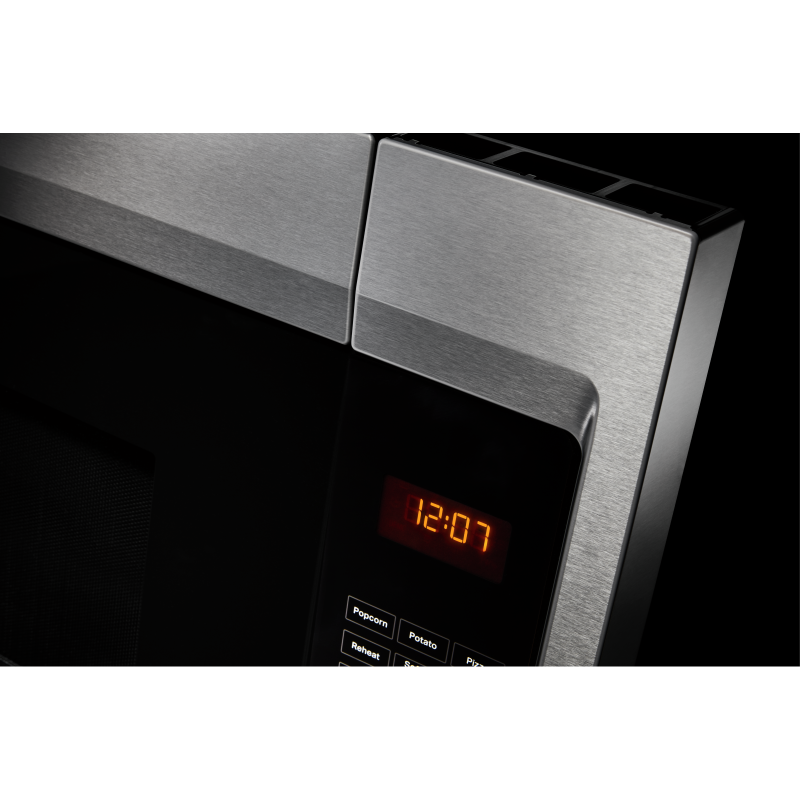

FINGERPRINT RESISTANT STAINLESS STEEL
Easy-to-clean, fingerprint resistant stainless steel keeps your microwave looking as good on the outside as it works on the inside.

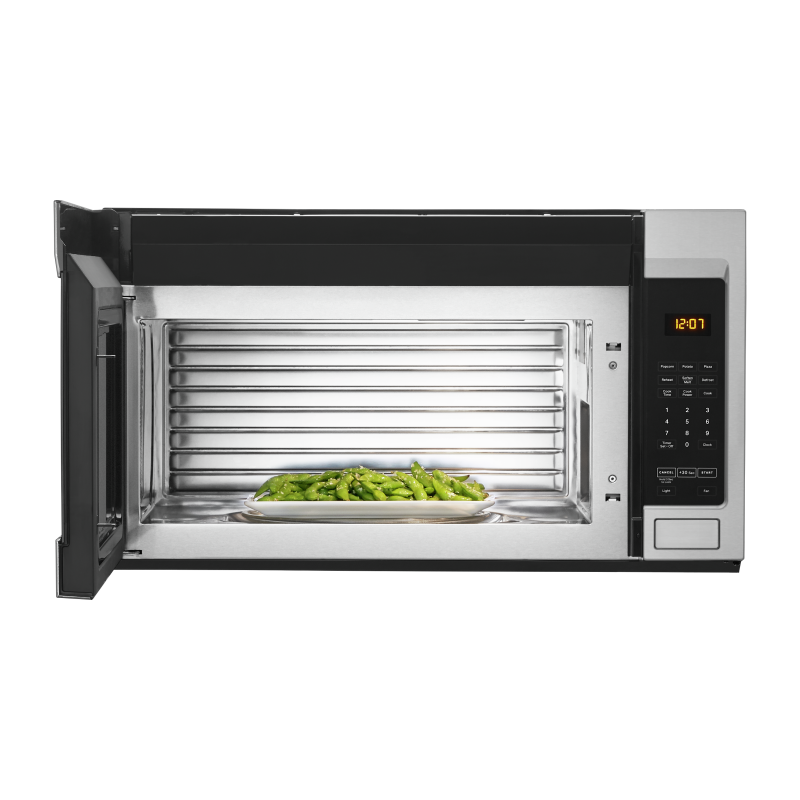

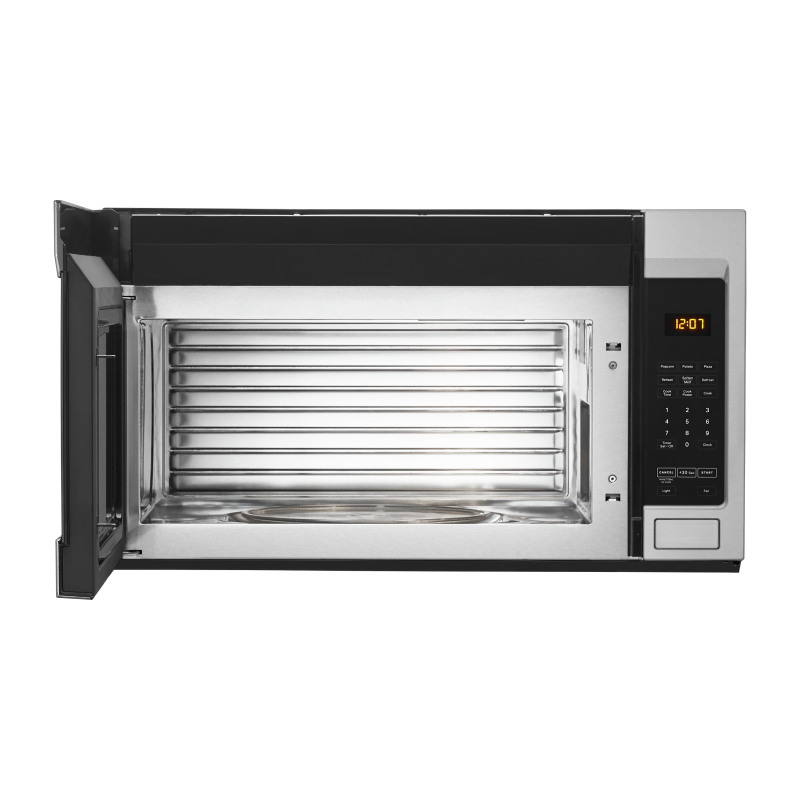

STAINLESS STEEL CAVITY
Finished with a stainless steel cavity, Maytag® microwaves are engineered to bring the heat, handle heavy use and clean up easily so messy meals are no match.

PUSH BUTTON
With a seamless design, the push button delivers a clean look and easy access to the inside of the microwave—with the push of a button.

10-YEAR LIMITED PARTS WARRANTY
With a 10-year limited parts warranty* on the cavity and magnetron, Maytag® microwaves are built tough enough to keep cooking for years.

CHARCOAL ODOR FILTER
The charcoal odor filter helps prevent cooking smells from overwhelming the meal by removing high airflow odors and steam.

MULTIPLE SPEED EXHAUST FAN
No matter the meal, the multiple speed exhaust fan helps remove smoke and odor.

FLUSH HIDDEN VENT
The flush hidden vent cleans up like clockwork while staying out of the way.

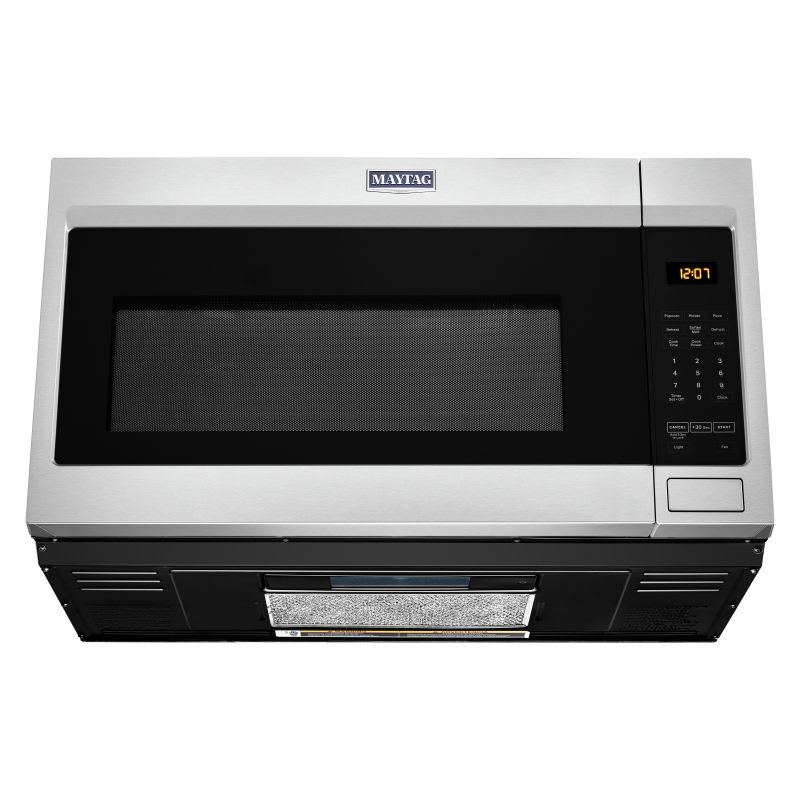

MESH GREASE FILTER
Oily, greasy meals are no match for a mesh grease filter that helps prevent the mess.

CONTROL LOCKOUT OPTION
The control lockout option disables the control panel to help prevent accidental use while cleaning.

1.9 CU. FT. CAPACITY
With 1.9 cu. ft. of cooking space, throw in meals and Maytag will handle them with ease.

Dimensions
Depth	15 9/16
Width	29 15/16
Height	17 1/8
Carton Depth	18 15/16
Carton Height	20 5/16
Carton Width	31 1/2
Depth With Door Open 90 Degree	39 1/4
Gross Weight	60
Net Weight	51.8
Capacity (cubic feet)	1.90
Certifications
Prop 65	Standard
ADA Compliant	No
Kosher Consumer Friendly	No
CUL	No
UL	Yes
Microwave Details
Interior Depth	14
Interior Height	9 1/2
Interior Width	21 1/16
Scrolling Electronic Display	No
Cooking Power(W,watts)	1000
Sensor Cooking	No
Work Surface Light	Incandescent
Cavity Finish	Stainless
Turntable Diameter Size(IN,inches)	12
Convection	No
Grill	No
Interior Light	Incandescent
Configuration and Overview
Microwave Type	Over-the-Range
Exterior
Door Release	Push Button
Cabinet Color	Stainless Steel Fingerprint Resistant
Handle Color	Print Resist Stainless Steel
Door Opening	Left
VENTILATION SYSTEM
Blower Type	Centrifugal
Number of Speeds	2
Filters	Charcoal Odor Removing Filter
Duct Direction	Vertical or Horizontal
Duct Outlet Size (in.)	3 1/4 x 10
Duct Type	Rectangular
Vent Fan Location	Back
Ventilation Type	Updraft
Venting	Exterior or Recirculating
CFM Motor Class	300

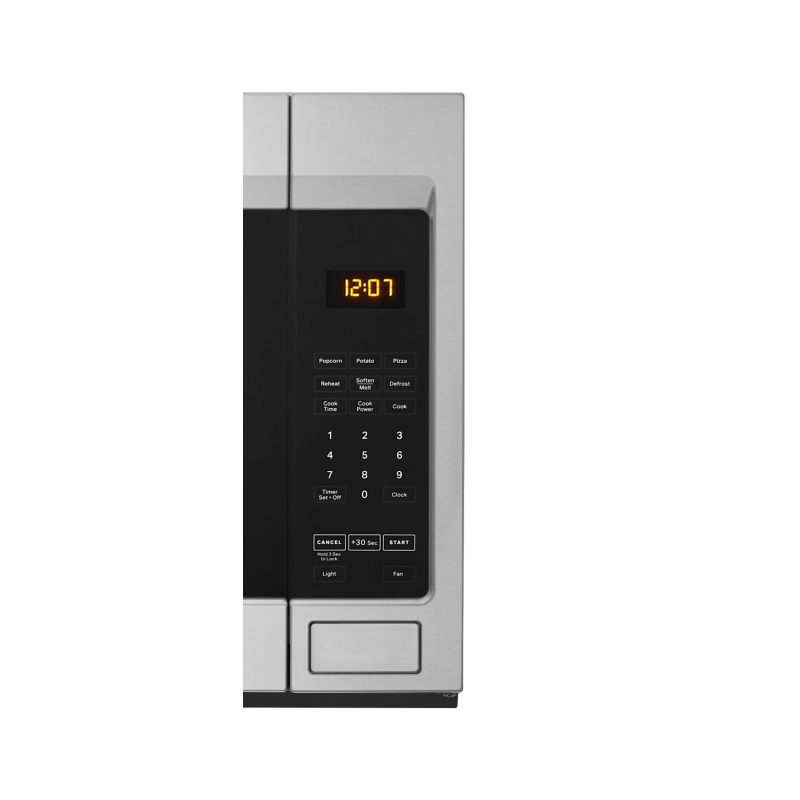

CONTROLS
Control Location	Right
Number of Quick Touch/One-Touch Selections	6
Display Color	Amber
Electronic Display Type	LED
Number of Keypads	26
Control Type	Electronic Touch
DETAILS
Number of Power Levels	10
Clock	Yes
Night Light	Yes
Features
Fan Speed Indicator	Yes
Electrical
Watts	1000
Amps	15
Hz	60
Volts	120
Microwave
Microwave Selections	Add 30 Seconds,Sound On/Off,End of Cycle Signal,Off/Cancel,Beverage,Control Lock,Cook,Auto Cook,Cook Time,Frozen Entree,Defrost,Popcorn,Potato,Pizza,Cook Power,Dinner Plate,Reheat,Soup,Soften/Melt,Timer,Frozen Vegetable,Fresh Vegetable
Configuration
Microwave Configuration	Microwave Hood Combination
Refinement
Style	Microwaves
