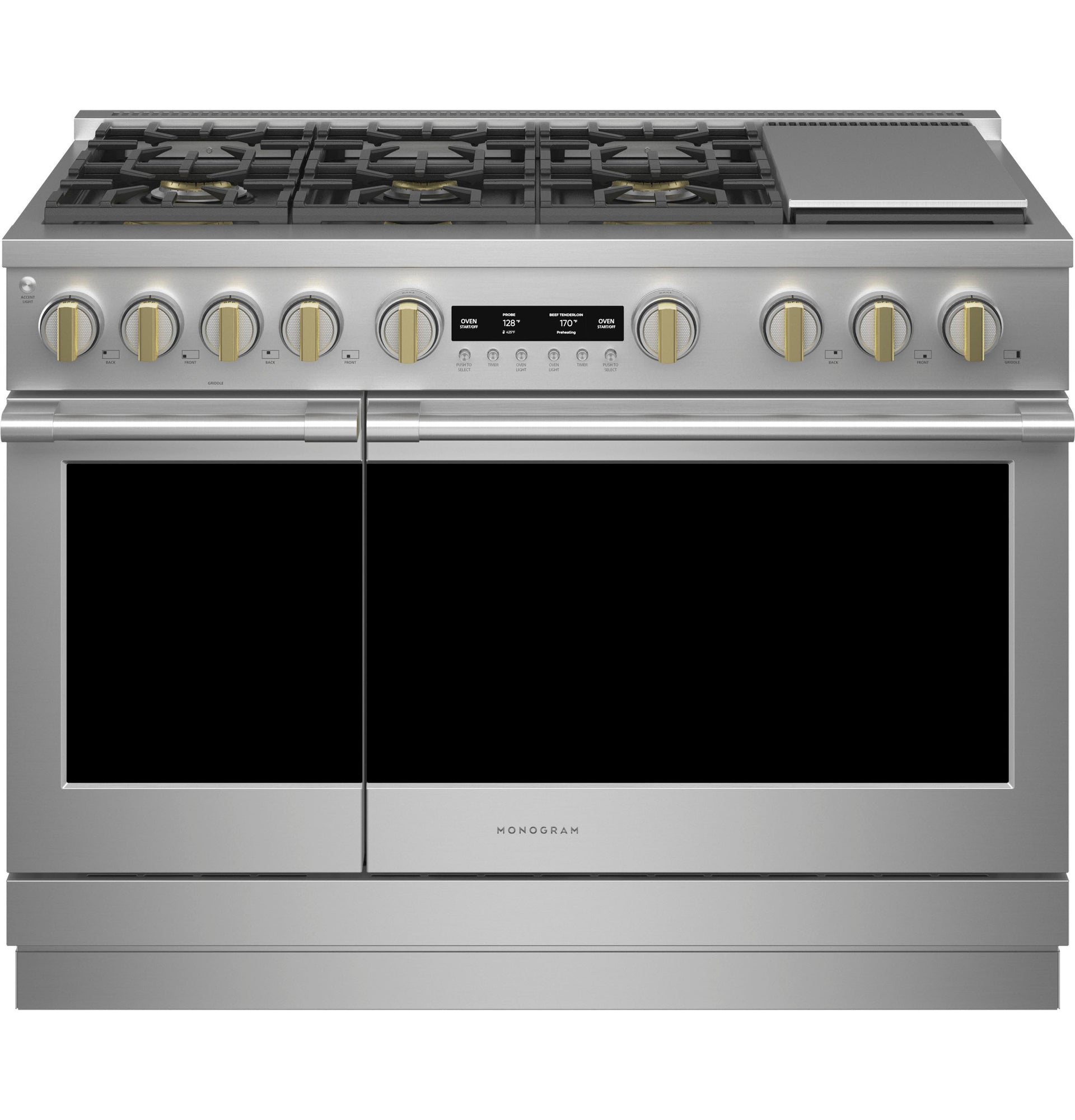

48 Inch Freestanding Professional Gas Smart Range with 6 Sealed Burners
Produce gourmet meals for the whole family with this versatile Monogram professional range.
-
Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

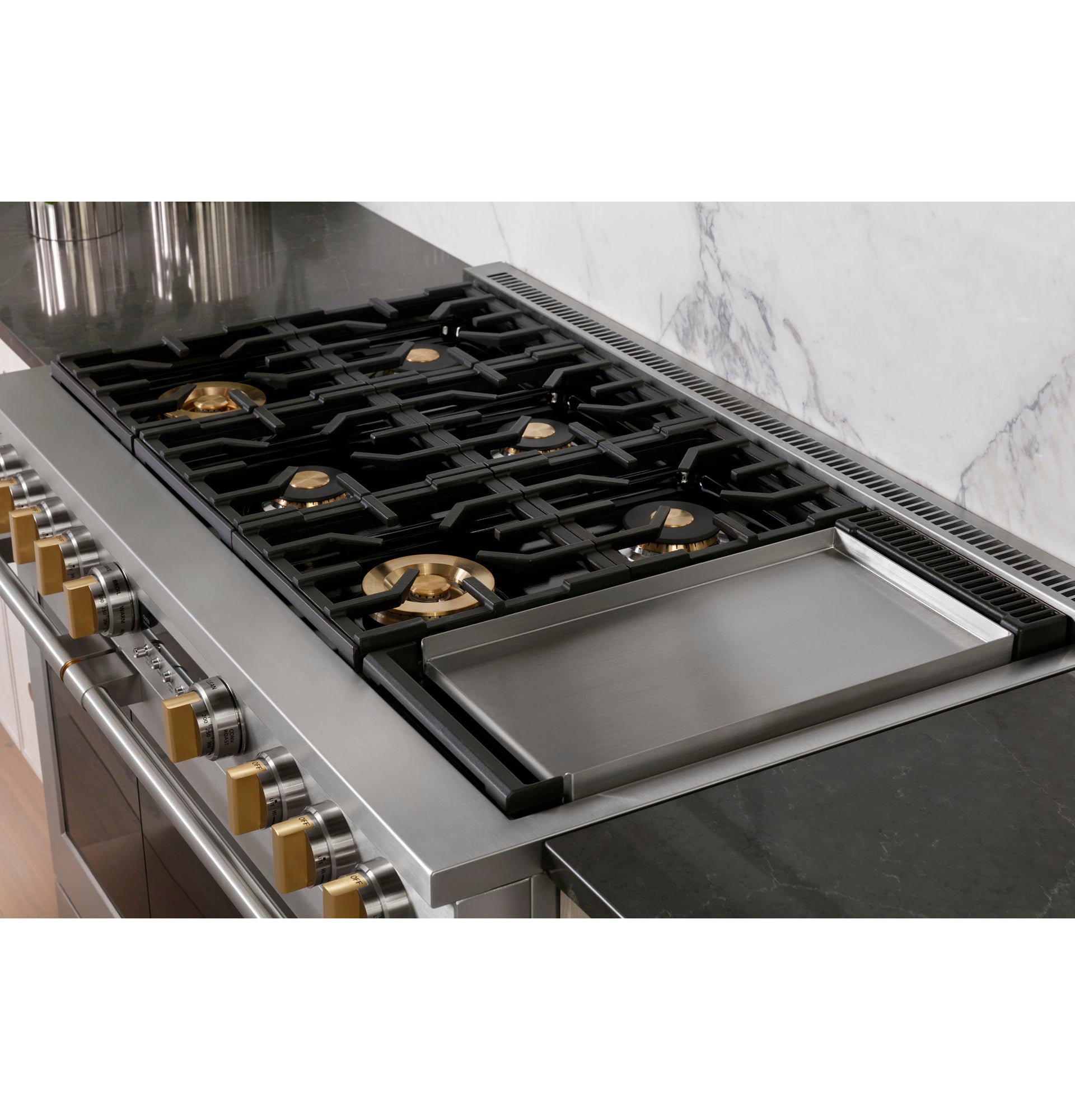

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

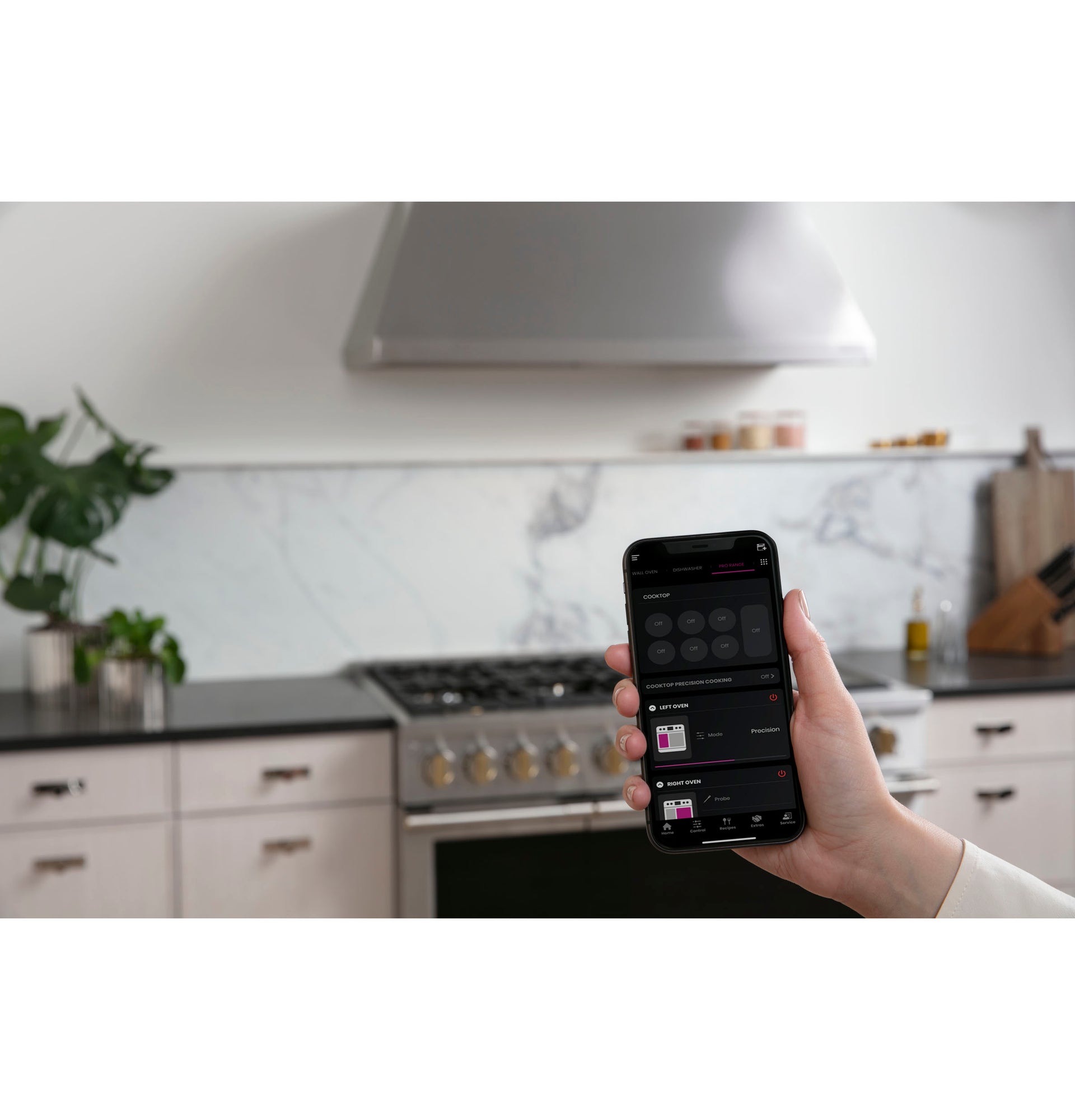

WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

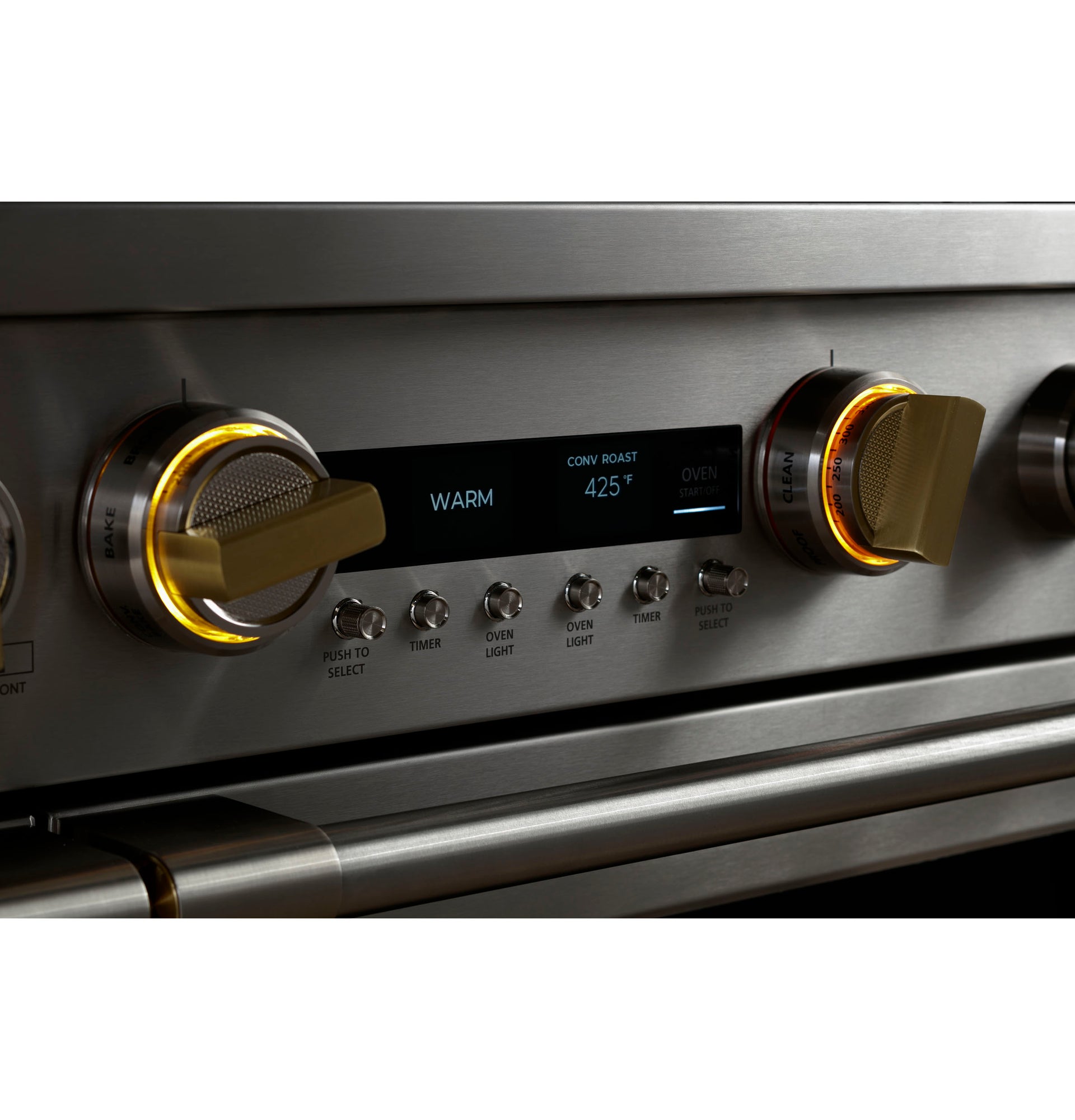

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive—Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance

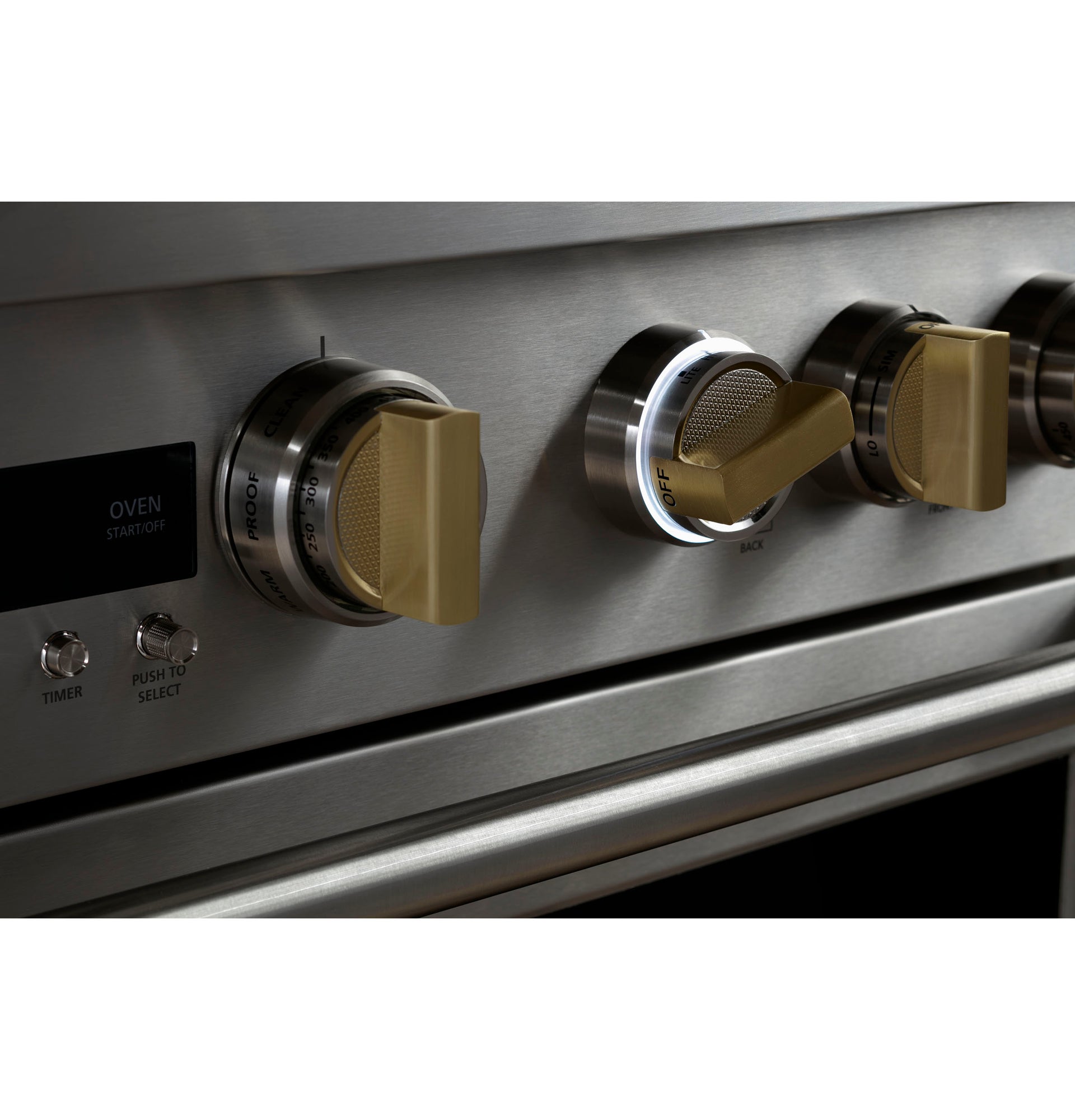

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

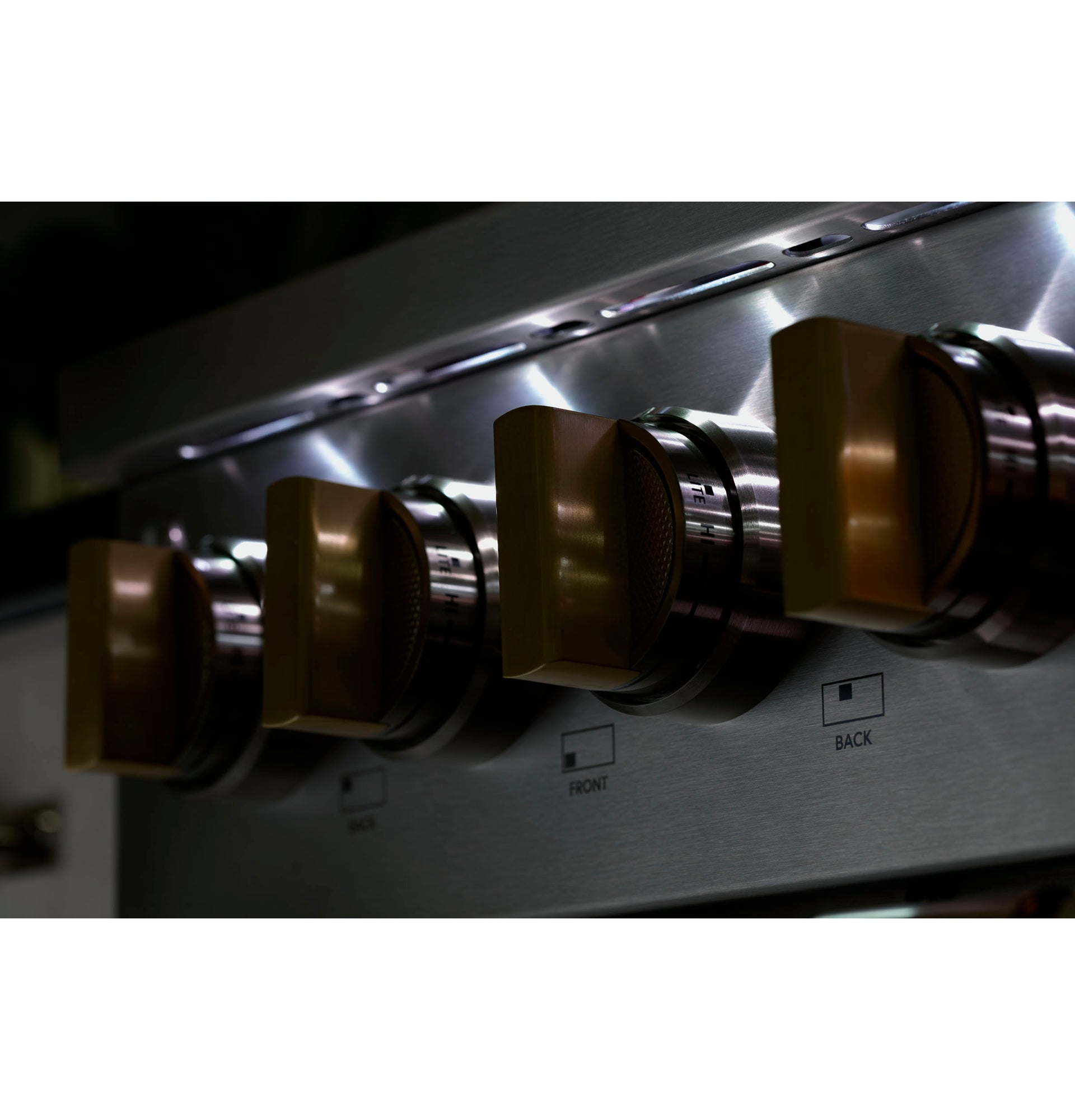

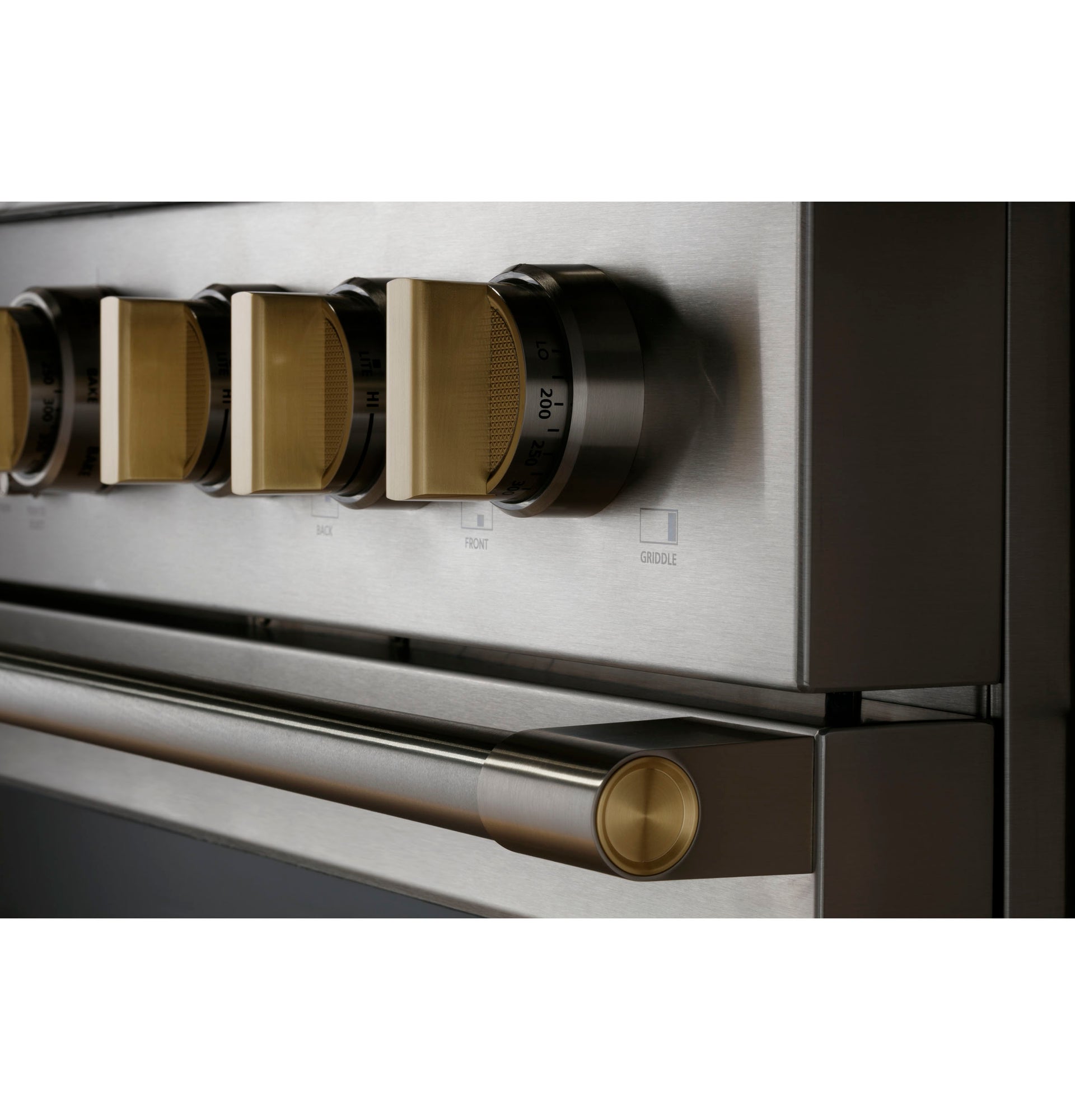

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

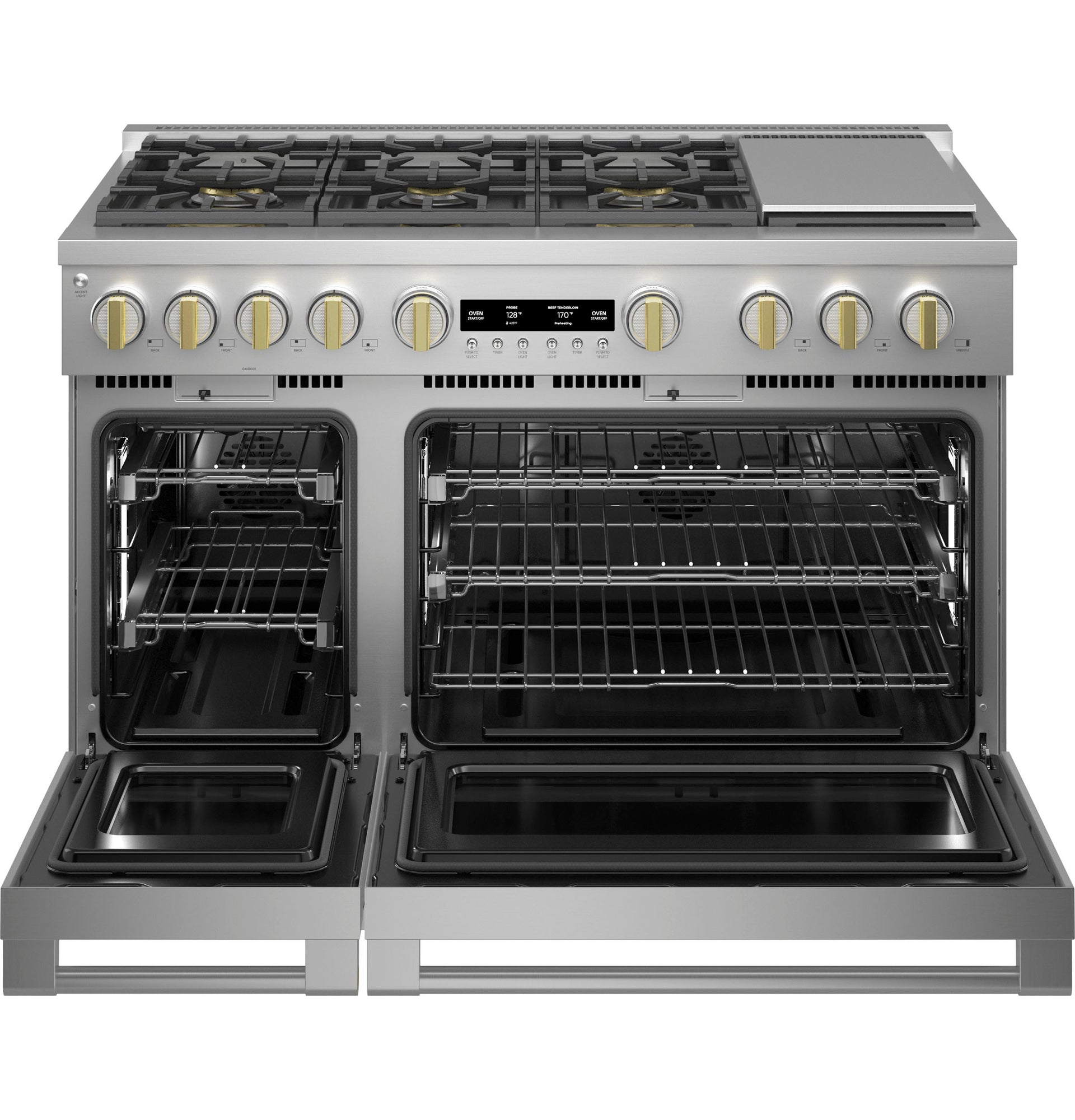

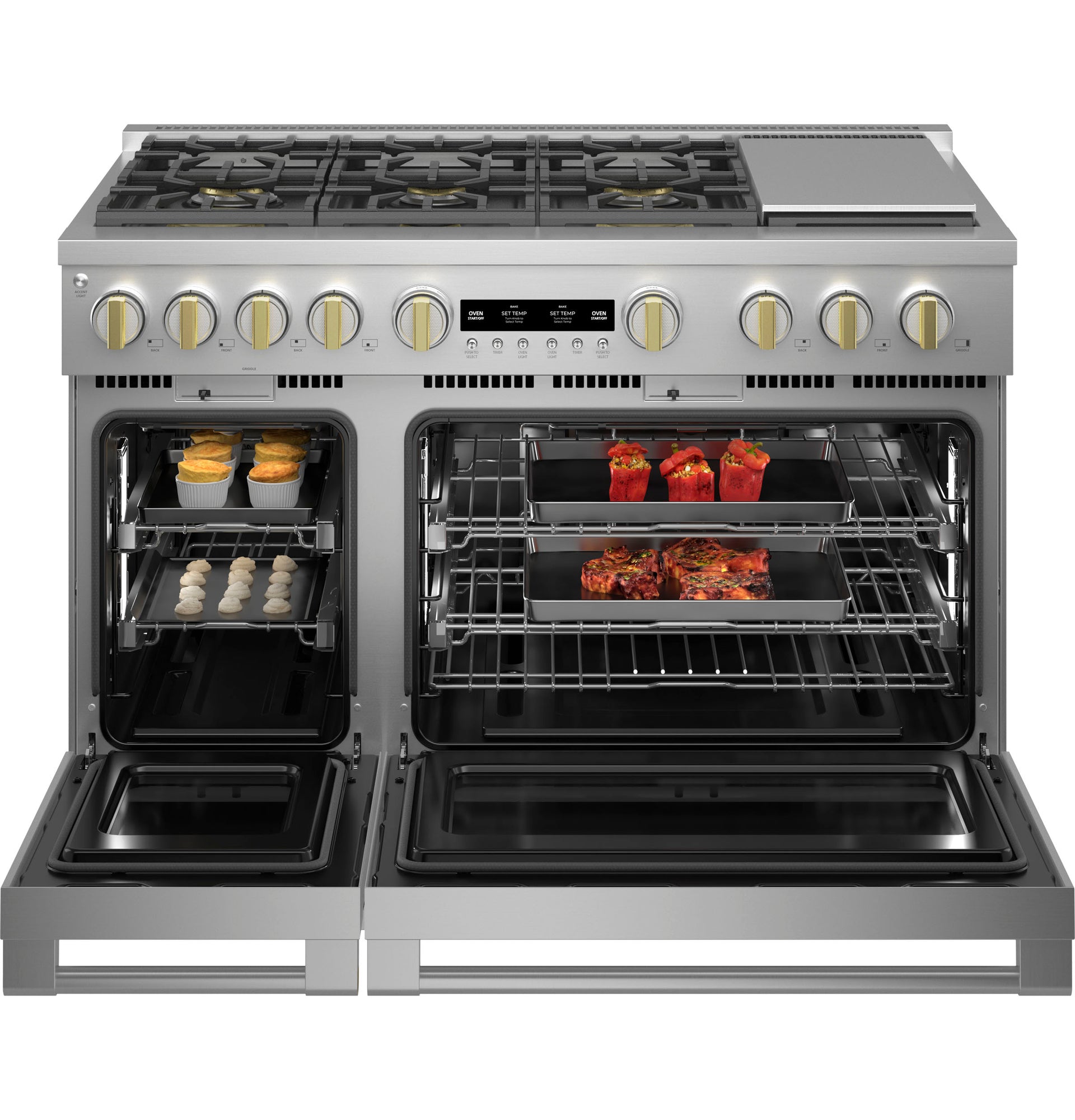

4 Oven Racks (Full-Extension), 1 Low Profile
Oven racks glide smoothly in and out on stainless steel ball bearings for easy access
Precision Oven Modes with SmartHQ™ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
-
FEATURES
Configuration : 6 Burners; Griddle
Cooking System : Reverse Air Convection
Ignition System : Electronic w/Auto Reignition
Oven Cleaning Type : Steam Clean (Both Ovens)
Cleaning Time : Variable (Both Ovens)
Cooktop Burner Type : 2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked (Removable Brass Accents)
Cooktop Surface : Porcelain-Enamel
Cooktop Burner Grate Features : Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Extra Low Simmer : All Burners - Adjustable
Control Type : Digital Temperature LCD Display (Both Ovens) with Timer Display
Oven Control Features : 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode Chef Connect Cook Time C° or F° Programmable Delay Clean Option (Both Ovens) Probe Mode Proof Mode (Both Ovens) Remote Enabled Steam Clean Timer WiFi Connect
Cooking Technology : Convection
Indicator Lights : Burner "On"

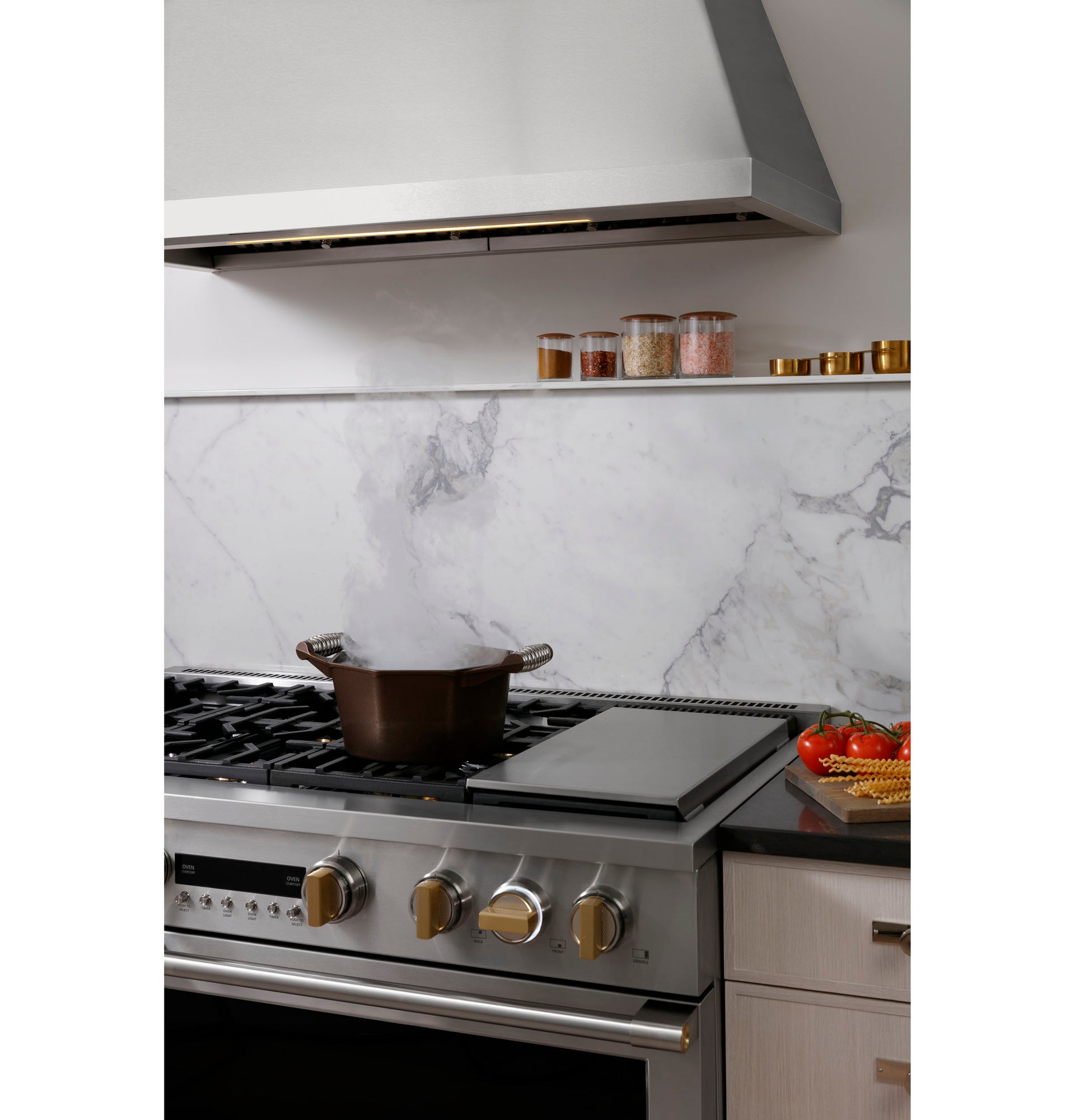

Griddle : 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled
Removable Drip Tray Liners : (1) Beneath Griddle
Stainless Steel Grill / Griddle Covers : 1
WiFi Connect : Built-In
Connected Capabilities : Amazon Alexa Bluetooth Drop IFTTT Innit Sonos The Google Assistant
Self-Clean Oven Door Lock : Automatic
Convection Roasting Rack : Yes
Broiler Pan and Grid : 2
Fuel Type : All-Gas (Natural gas)
Interior Oven Light : 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven)
Lighting : Customizable LED Bullnose and Knob Accent Lighting
Oven Cooking Modes : Convection Bake Multi/Single Rack (Both Ovens) Convection Roast (Both Ovens) Precision Cooking Modes Proof (Both Ovens) Scan-to-Cook Warming (Both Ovens)
Oven Rack Features : 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Full Extension Racks 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven)
Cooktop Type : Continuous Grates
Removable Grease Trough : (1) Front of Griddle
CAPACITY
Capacity (Cu. Ft.) : 6.2 Caterer Oven/2.7 Everyday Oven
Total Capacity (cubic feet) : 8.9 cu ft
APPEARANCE
Color Appearance : Stainless Steel
Control Knobs : Diecast Metallic (Included) Stainless Steel with Brass Accents
Design Style : Statement Collection
Installation : Flush Installation Capable
Oven Door Features : Soft Close Door
Toe kick : Included
WEIGHTS & DIMENSIONS
Approximate Shipping Weight : 672 lb
Cabinet Width : 48 in
Net Weight : 576 lb
Overall Depth : 28 1/4 in
Overall Height : 35 1/4 in
Height to Cooking Surface (in.) : 35 1/4 to 36 3/4
Overall Width : 47 7/8 in
Height w/Legs Extended - Maximum Height : 36 3/4 in
Height With Legs Retracted : 35 1/4 in
Interior Dimensions - Companion Oven (WxHxD) (in.) : 12-1/8 x 16-3/8 x 19
Interior Dimensions - Main Oven (WxHxD) (in.) : 28-1/4 x 16-3/8 x 19
POWER / RATINGS
Bake/Broiler BTU Rating - LP (000's BTU's) : 21.5 Bake / 18.0 Broil Main Oven; 10.0 Bake/11.0 Companion Oven
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 23.0 Bake / 18.0 Broil Main Oven; 10.5 Bake / 11.0 Companion Oven
Broiler Wattage : 1050W (Main Oven): 650W (Companion Oven)
Electrical Requirements : 120VAC;15A
Griddle BTU Rating (000's/BTU) - LP Gas : 16.0
Griddle BTU Rating (000's/BTU) - Natural Gas : 18.0
Top Burner BTU Rating - LP (000's BTU's) : (2) 21.0; (2) 15.0; (2) 10.0
Top Burner BTU Rating - Nat. Gas (000's BTU's) : (2) 23.0; (2) 18.0; (2) 15.0
ACCESSORIES
Bamboo Cuttingboard : UXPRCB
Factory-installed island backguard : yes
Grill Accessory (Cast Iron) : UXGRILL
Multi Ring Burner Caps (Brass) : Included
Multi Ringe Burner Caps (Black) : Included
Optional Backguard : 12" stainless steel backsplash (ZX12B48PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (ZXADJB48PSS)
LP Conversion Kit : Included
WARRANTY
Parts Warranty : Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks
Labor Warranty : Limited 2-year entire appliance
Warranty Notes : See written warranty for full details
