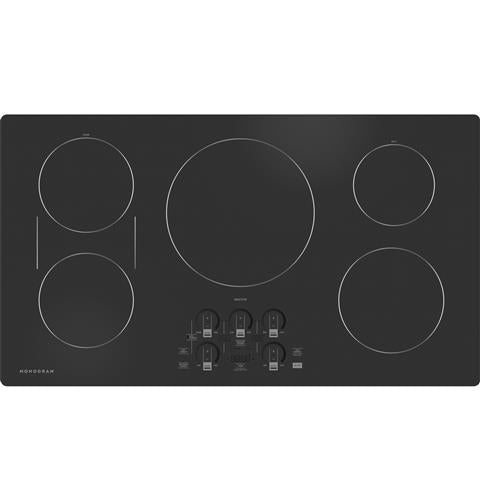

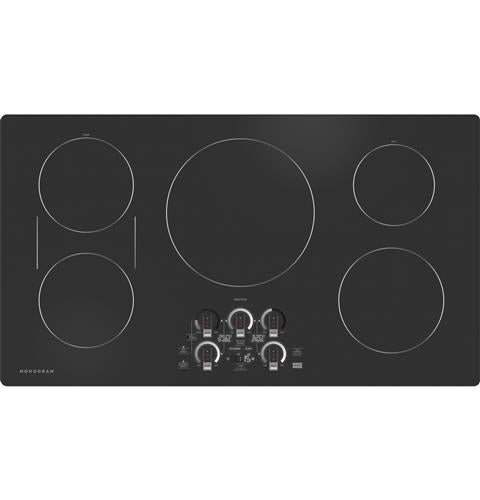

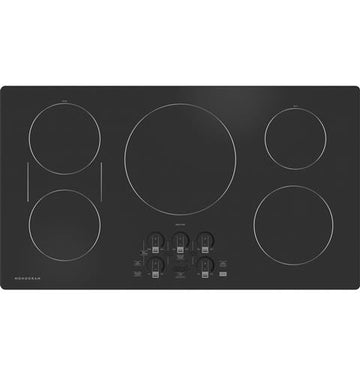

Monogram ZHU36RDTBB 36" Induction Cooktop

5 Induction Cooking Elements

This 5-burner induction cooktop provides rapid heat that quickly responds when you change the temperature. Electromagnetic technology heats the pan, not the cooktop surface, allowing the cooktop to stay cool.

Power Boil on Two Tri-Ring Elements

Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with two 3,000-watt flexible elements.

Precision Temperature Control

Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature – from 100 to 500 degrees. Perfect for sauces, candies and frying.

Easy Clean Surface with Beveled Edges

A smooth glass surface with beveled edges and glide touch controls that ensures spills won’t burn makes this an easy clean cooktop.

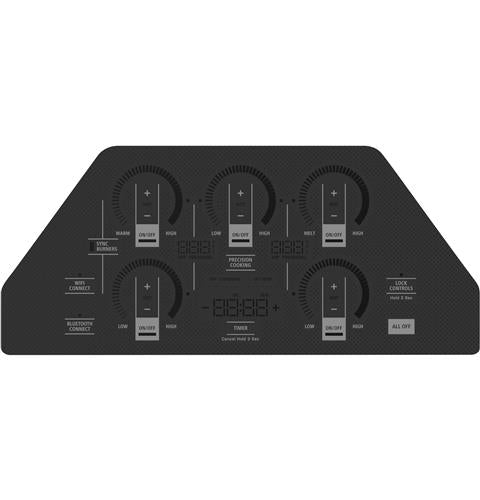

Glide Touch Controls

Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.

Synchronized Elements

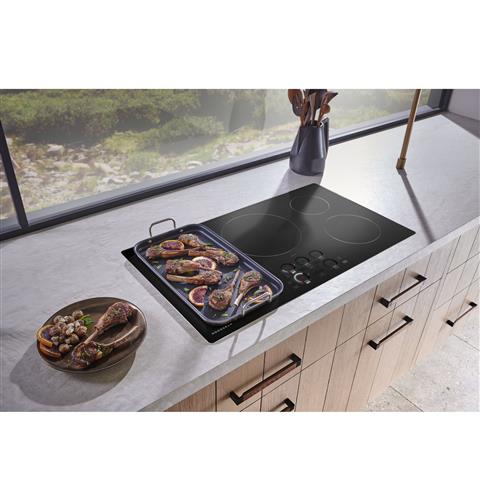

Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.

FEATURES

Cooktop Surface

Cooktop Burner Type- 5 Induction Elements

Style- Smoothtop

Element - Left Front- 7" 2500W

Element - Left Rear-  7" 2500W

Element - Right Front- 8" 3200W

Element - Right  Rear- 6" 1800W

Element - Center- 11" 3700W

Control Location- Front Center

Control Type- Electronic Touch Slider

Cooktop Control Features- Control Lock Capability Electronic Touch Slider Melt Setting Pan Presence Sensor-  Pan Size Sensor Sync-Burners

Indicator Lights- 5 Hot Surface Surface Element "ON"

Power Level Indicator- 19 Levels

Timer-  Kitchen timer

Cooking Technology- Induction

Cooktop Type- Induction

Fuel Type- Electric

WiFi Connect- Built-In

APPEARANCE

Color Appearance- Black Graphite

Frameless- Yes

Installation- Above 120V Advantium Above Wall Ovens (except SDWO) Above Warming Drawer Flush-mount capable With Telescopic Downdraft

WEIGHTS & DIMENSIONS

Approximate Shipping Weight- 57 lb

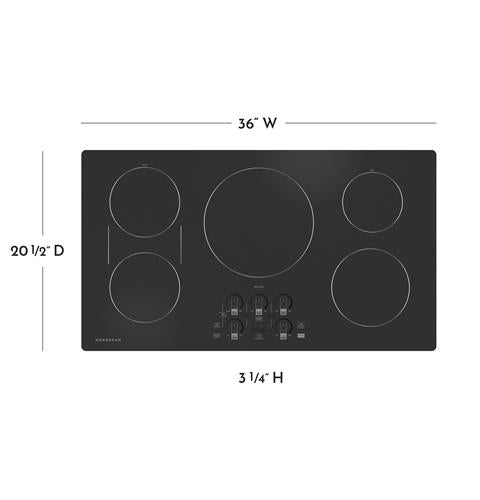

Cabinet Width- 36 in

Cooktop Size- 36 in

Cutout Dimensions (Width x Depth) (In.)- 33-7/8 x 19-1/8

Net Weight- 51 lb

Overall Depth- 21 1/8 in

Overall Height- 3 1/4 in

Overall Width- 36 1/4 in

POWER / RATINGS

Max. Connected Load (kW) at 208V- 10.1

Max. Connected Load (kW) at 240V- 11.6

Max. Current Draw (Amps) at 208V -          48.6

Max. Current Draw (Amps) at 240V -          48.3

Recommended Circuit Breaker (Amps) at 208V-   50

Recommended Circuit Breaker (Amps) at 240V-   50

ACCESSORIES

Cooktop Cleaning- Included

Griddle Accessory- JXGRIDL1 (optional)

Optional Flush Mount Kit- JXFLUSH1

Optional Accessories -  JXPROBE1 - Precision cooking probe

WARRANTY

Parts Warranty- Limited 2-year entire appliance

Labor Warranty- Limited 2-year entire appliance
