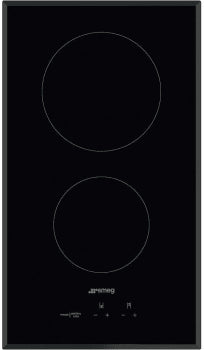

Smeg SEU122B 12" Black Electric Cooktop

• 2 high-light radiant zones:

• Front: Ø 7'' (180mm) Booster 1,000W

• Back: Ø 5 5/11'' (140mm) Booster 1,400W

• Soft-touch controls

• 2 high-light radiant elements

• 9 power levels for each zone

• Residual heat indicator for each zone

• "Keep warm" automatic function

• Automatic safety cut-out

• Child safety lock

• Limited power consumption mode

• Voltage rating: 120V 60Hz

• Quick start option

• Connected load (nominal power): 2.4 kW

• 22 Amps

• Electrical - single phase 3 wire cable required,

• 60Hz, fused on both sides of line with ground

Overview

Built-In Type:  Ultra-Low Profile

Fuel Type:  Electric

Glass Type:  Ceramic

Glass Edge:  Beveled

Control Panel:  Touch Controls

Control Lock:  Yes

Total Cook Zones:  2

Power Levels:  9

Front Center Zone:  1000W; 5 83/100"

Rear Center Zone:  1400W; 7 6/25"

Accessories Included

Scraper:  1

Electrical Specifications

Electrical Connection Rating:  2400W

Amps:  22A

Volts:  120V

Frequency:  60 Hz

Cord Type:  Single Phase

Length of Supply Cord:  47 1/4"

Warranty

Parts & Labor:  1 Year

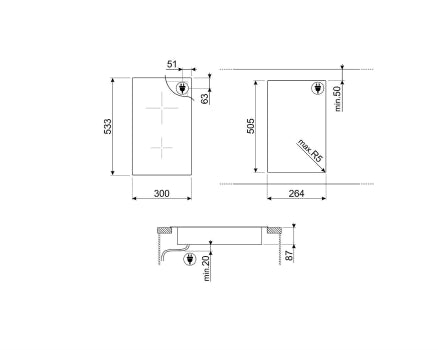

Dimensions & Weights

Width:  11 13/16"

Depth:  20 15/16"

Height:  3 1/4"

Weight:  15 Lbs.

Shipping Weight:  18 Lbs.
