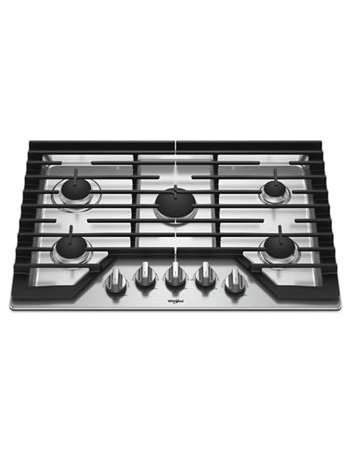

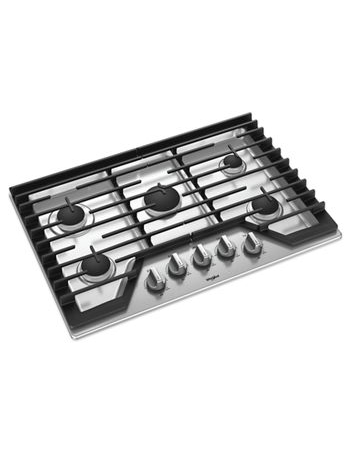

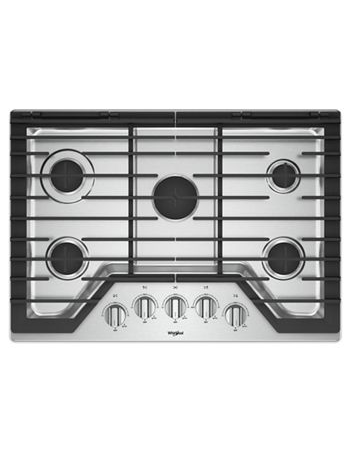

Whirlpool WCG77US0HS 30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates - Stainless Steel

EZ-2-Lift™ Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher-safe.

Upswept SpillGuard™ Cooktop

Clean up faster with a cooktop that has raised edges to help contain spills.

SpeedHeat™ Burner

Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.

AccuSimmer® Burner

Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer® burner, which reduces power for better control at lower temperatures.

Fifth Burner

Make sure everyone gets their favorite with an extra, fifth burner that gives you more room to choose the right one for the dish.

Sealed Burners

Cut down on cleanup with burners that are sealed to prevent food from falling into them.

Full Width Grates

Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.

Dishwasher-Safe Knobs

Make cleanup easy by washing knobs right in the dishwasher.

Wall Oven Compatible

Install this cooktop to work with a wall oven or on its own for added flexibility.

Dimensions

Cutout Depth Max - 20.0 in

Depth - 21.0 in

Height - 4-1/8 in

Maximum Height - 4-1/8 in

Minimum Height - 3-3/8 in

Width - 30.0 in

Configuration and Overview

ADA Compliant - ADA Height and Side Reach Compliant

Cooktop Type - Standard

Fuel Type - Gas

Installs Over Built-In Oven - Yes

LP Convertible - Yes - Kit Included

Power Boost - No

Size - 30 in

UL - UL

Controls

Infinite Heat Controls - Yes

Appearance

Digital Display - No

Cooktop Details

Automatic Pan Detection - No

Center Front Element-Burner Type - SpeedHeat

Cooktop Element Style - Sealed Burner

Cooktop Surface Material - Stainless/Porcelain Coated Steel

Downdraft Vent - No

Grate Details - Dishwasher Safe, Matte Finish, Continuous with Hinge, Cast Iron Grates

Heating Element On Indicator Light - No

Hot Surface Indicator Light - No

Ignition Type - Direct Spark Ignition

Left Front Element-Burner Type - Simmer

Left Rear Element-Burner Type - Sealed Burner

Number of Cooking Element-Burners - 5

Number of Grates - 2

Power Outage Compatible - Yes

Electrical

Amps - 15

Hz - 60

Power Cord Included - Yes
