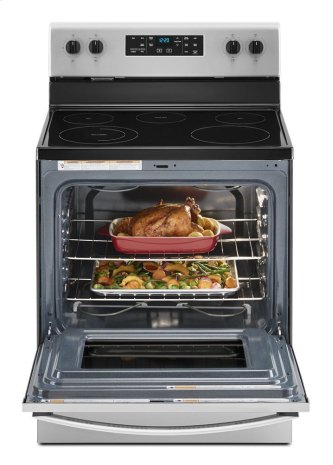

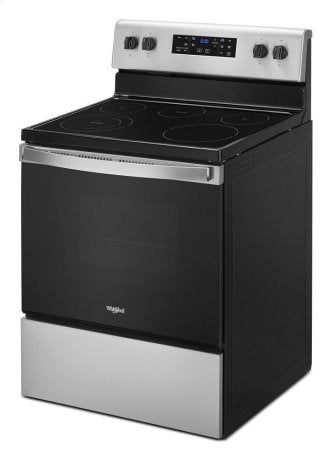

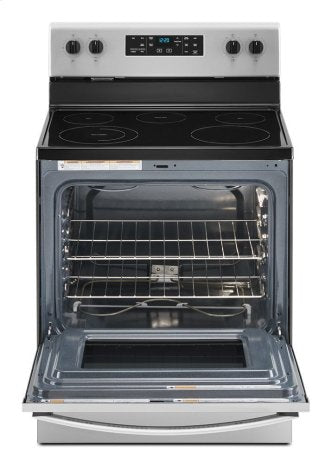

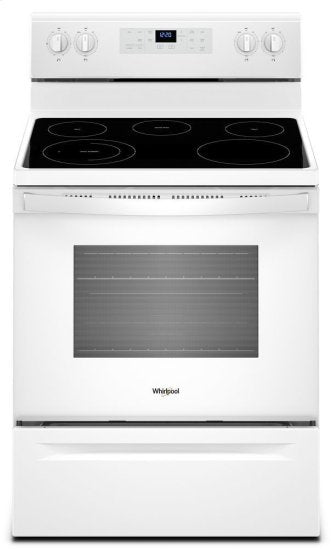

Whirlpool YWFE505W0JW 30" 5.3 cu. ft. Electric Range with Frozen Bake Technology in White

Model: YWFE505W0JW
  • Description
  • Features
  • Specifications
  • This Whirlpool® electric range with a dual element stove top resists fingerprints and helps you get dinner to the table. Skip preheating for favorites like pizza with Frozen Bake technology. This steam cleaning oven also prevents cooked food from getting cold with a Warm Zone on the cooktop and the Keep Warm setting in the oven.

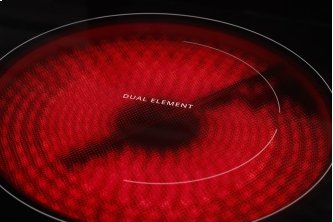

  • FlexHeat Dual Radiant Element
    Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.

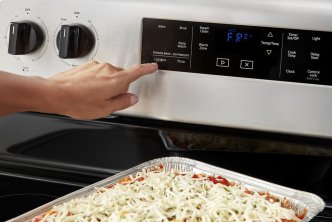

    Frozen Bake technology
    Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
    Warm Zone Element
    Keep food warm while you're finishing the rest of the meal using this low-powered center element.
    Additional Features
    Keep Warm setting
    Keep dishes from getting cold with this setting that delivers low heat to the oven.
    Closed Door Broiling
    Maintain the optimal cooking temperature for food while still keeping the kitchen comfortable and cool using this broiling temperature management system that helps prevent overheating.
    Control Lock Mode
    Disable the control panel to avoid unintended use.
    5.3 cu. ft. Capacity
    Cook large meals with 5.3 cu. ft. capacity.
    Fingerprint Resistant
    Resists fingerprints and smudges with steel that's easy to clean
    Steam Clean option
    Use the Steam Clean option periodically to clean up after everyday light spills on the bottom of the oven using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed.
    Large Oven Window
    Keep an eye on your meal through the large oven window.
    Ceramic glass cooktop
    Wiping up spills is simple with the ceramic glass cooktop
    Upswept SpillGuard Cooktop
    Clean up faster with a cooktop that has raised edges to help contain spills.

  • Dimensions
    Carton Width -  32
    Carton Height -  49
    Carton Depth -  30
    Height -  36
    Width -  29 7/8
    Depth -  27 3/4
    Handle Material -  Metal
    Selection -  Keep Warm Setting,Audible Signal,Control Lock,Cancel/Off,Automatic Door Latch,Start Time,Stop Time,Bake,Broil,Frozen Bake,Cook Time Indicator,Delay Start,Warm Hold,Sabbath Mode,Clock,Timer
    Power Outage Compatible -  No
    Griddle -  NA
    Electronic Display Type -  LED
    Display Color -  Blue
    Handle Type -  Reach-Through Handle
    Handle Color -  Stainless Steel
    Oven Window -  Size Extra Large
    Oven Door -  Glass Window

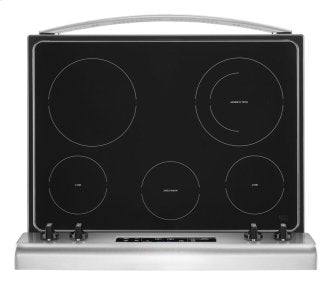

    Cooktop Details
    Left Front Element-Burner Type -  Dual
    Right Front Element-Burner Size -  9"
    Left Front Element-Burner Size -  9"/6"
    Center Front Element-Burner Type -  Simmer
    Cooktop Configuration -  All Burners
    Center Front Element-Burner Size -  6"
    Center Front Element-Burner Power -  100W
    Cooktop Control Type -  Knobs
    Cooktop Control Location -  Backguard
    Left Front Element-Burner Power -  3000W
    Cooktop Control Knob Type -  Plastic
    Right Front Element-Burner Type -  Standard
    Right Rear Element-Burner Type -  Standard
    Right Rear Element-Burner Power -  1200W
    Left Rear Element-Burner Type Standard
    Left Rear Element-Burner Power 1200W
    Left Rear Element-Burner Size - 6"
    Right Front Element-Burner Power -  2500W
    Right Rear Element-Burner Size -  6"
    Cooktop Control Knob Color -  Black
    Cooktop Surface Material -  Glass
    Number of Cooking Element-Burners -  5
    Cooktop Surface Color -  Black
    Heating Element On Indicator Light -  Yes
    Cooktop Element Style -  Radiant
    Oven Details
    Oven Light Switch Location -  Oven Control
    Cooktop Details
    Hot Surface Indicator Light -  Yes
    Oven Details
    Broiler Location -  Top Center
    Hidden Bake Element -  No
    Oven Cooking System -  Thermal

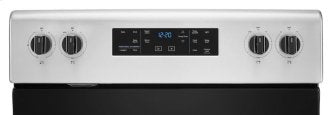

    Oven Control Type -  Electronic Touch
    Oven Control Location -  Backguard
    Interior Color -  Black
    Automatic Shut-Off -  No
    Power On Indicator Light -  Yes
    Automatic Convection Conversion Temperature Adjust -  No
    Drawer Type Storage -  Drawer
    Door Removable -  Yes
    Configuration and Overview
    Size (IN,inches) -  30
    Fuel Type -  Electric
    Range Type -  Freestanding
    Energy Rating (kWH/year) -  520
    UL -  No
    CUL -  Yes
    ADA Compliant -  No
    Kosher Consumer Friendly - No
    Prop 65 - Standard
    Capacity (cubic feet) -  5.30
    Net Weight = 137.0
    Cutout Width -  30
    Gross Weight -  152
    Cutout Height -  36
    Cutout Depth - 24
    Oven Control Knob Color -  Black
    Oven Control Knob Type -  Plastic
    Bake Element Power - 2400W
    Broiler Element Power -  3400W
    Number of Oven Lights - 1
    Oven Light Type -  Incandescent
    Oven Interior Depth(IN,inches) -  18 1/2
    Oven Cleaning Type -  Steam-Clean
    Oven Interior Height(IN,inches) -  18 1/8
    Oven Interior Width(IN,inches) -  24 1/2
    Oven Rack Type -  Standard (Both)
    Number of Oven Racks -  2
    Number of Rack Guides -  5
    Amps -  40
    Watts -  8000
    Power Cord Included -  Yes
    Volts -  120/240
    Oven Configuration - Single Oven
    Range Configuration -  Freestanding
    Style -  Ranges
