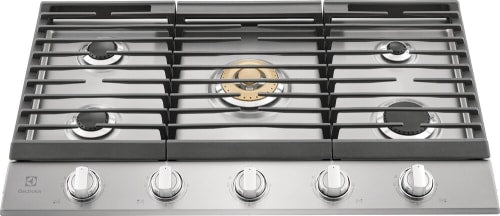

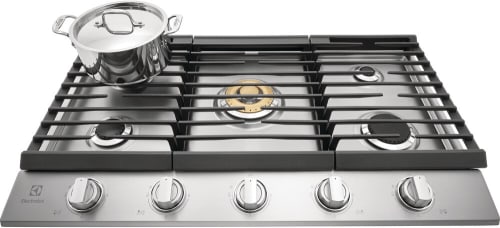

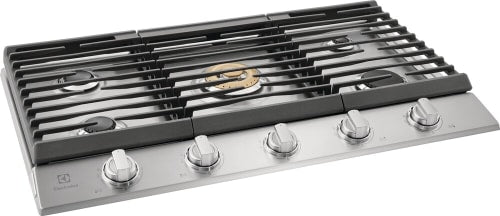

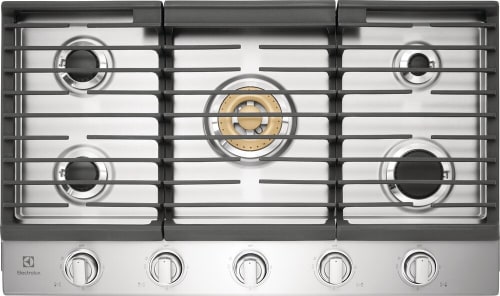

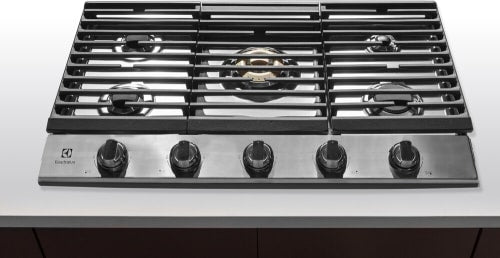

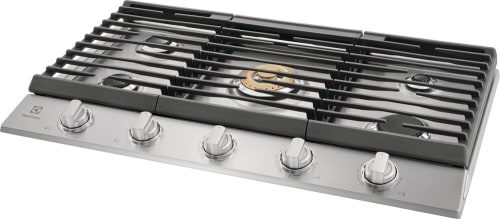

Electrolux ECCG3668AS 36'' Gas Cooktop In Stainless Steel

Flexible Brass Power Burner
Achieve accurate and efficient temperature control - whether you need a light simmer or a powerful boil - with a flexible brass power burner that evenly covers the bottom of the pan

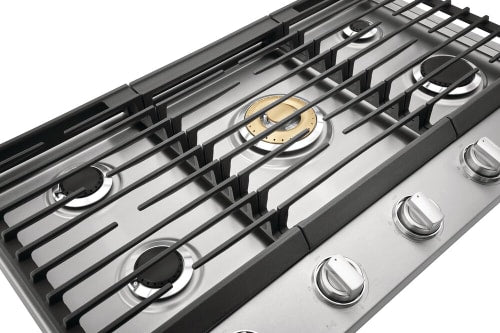

Continuous Grates
Easily slide even your heaviest cookware from burner to burner with our continuous grates that also lend to the sleek look of the cooktop

LED Backlit Knobs
Get a premium look with sturdy, LED backlit knobs that turn on once the burner is lit

Sleek Design
Full-framed linear grates, edge-to-edge front controls with sturdy LED backlit knobs and a premium brass burner accent lend to the sleek design that make this cooktop a focal point of your kitchen

Additional features
Included Griddle
Create specialty foods like crepes and paninis right on your cooktop with an included griddle that allows for multiple cooking techniques

Melt Cap Accessory
Easily melt chocolate and other delicate ingredients with the gentle heat provided by the melt cap accessory

Five Burners
Cook for a crowd with ease with five burners that allow you to cook multiple dishes at once

Perfect Fit Promise
We guarantee that our cooktop will fit your existing space or we'll reimburse the cost of your countertop modifications 1

ADA Compliant
Complies with the ADA requirements as specified in the Americans with Disabilities Act 2

Platinum Star® Limited Warranty
Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts. 3

Dimensions and Volume

Height: 2 219/500"

Width: 36"

Depth: 21"

Cutout Height: 7 1/2"

Minimum Cutout Width: 33 7/8"

Minimum Cutout Depth: 19"

Maximum Cutout Width: 35 5/8"

Maximum Cutout Depth: 20"

General Specifications

Product Weight: 44.65 lbs

Prop 65 Label: Yes

Warranty - Labor: 1 Year

Warranty - Parts: 1 Year

Cooktop Performance

Right Front Element Burner: 12,000 BTU

Right Rear Element Burner: 5,000 BTU

Left Front Element Burner: 9,500 BTU

Left Rear Element Burner: 9,500 BTU

Center Element Burner: 20,000 BTU

Electrical Specifications

Voltage Rating: 120 V

Installation

Gas Supply Connection Location: Right Center

LP Conversion Kit Included: Yes

Cooktop

Cooking Surface Type: Gas

Grate Material: Cast Iron

Grate Quantity: 3

Grate Style: Continuous

Sealed Burners: Yes

Certifications and Approvals

ADA Compliant: Yes

CSA Listed: Yes

RoHS: Yes

Dimensions and Volume

Height: 2 219/500"

Width: 36"

Depth: 21"

Cutout Height: 7 1/2"

Minimum Cutout Width: 33 7/8"

Minimum Cutout Depth: 19"

Maximum Cutout Width: 35 5/8"

Maximum Cutout Depth: 20"

General Specifications

Product Weight: 44.65 lbs

Prop 65 Label: Yes

Warranty - Labor: 1 Year

Warranty - Parts: 1 Year

Cooktop Performance

Right Front Element Burner: 12,000 BTU

Right Rear Element Burner: 5,000 BTU

Left Front Element Burner: 9,500 BTU

Left Rear Element Burner: 9,500 BTU

Center Element Burner: 20,000 BTU

Electrical Specifications

Voltage Rating: 120 V

Installation

Gas Supply Connection Location: Right Center

LP Conversion Kit Included: Yes

Cooktop

Cooking Surface Type: Gas

Grate Material: Cast Iron

Grate Quantity: 3

Grate Style: Continuous

Sealed Burners: Yes

Certifications and Approvals

ADA Compliant: Yes

CSA Listed: Yes

RoHS: Yes
