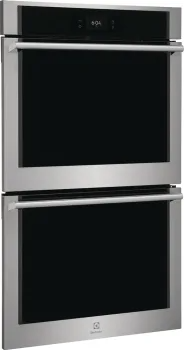

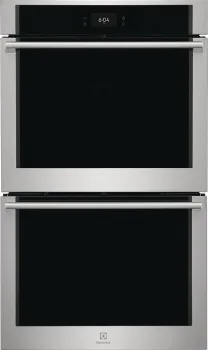

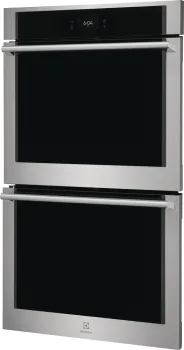

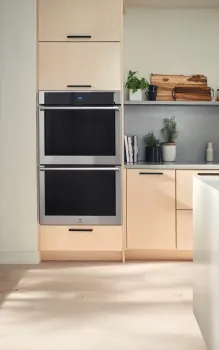

Electrolux ECWD3012AS 30'' Electric Double Wall Oven with Air Sous Vide

Dimensions and Volume

Height: 50 3/4"

Width: 29 7/8"

Depth: 25 3/16"

Depth With Door 90° Open: 48 3/16"

Depth With Handle: 27 3/5"

Lower Oven Interior Height: 18 1/8"

Lower Oven Interior Width: 25 1/5"

Lower Oven Interior Depth: 19 7/8"

Upper Oven Interior Height: 18 1/8"

Upper Oven Interior Width: 25 1/5"

Upper Oven Interior Depth: 19 7/8"

Minimum Cutout Height: 48 7/8"

Minimum Cutout Width: 28 1/2"

Minimum Cutout Depth: 23 1/2"

Maximum Cutout Height: 50 1/4"

Maximum Cutout Width: 29"

Oven Lower Capacity: 5.3 Cu. Ft.

Oven Upper Capacity: 5.3 Cu. Ft.

Total Capacity: 10.6 Cu. Ft.

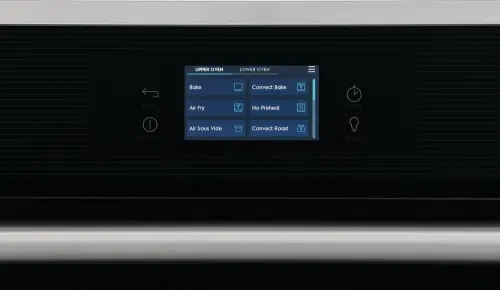

Display

Control Location: Top

Display Interface Color: White

Display Light Color: White

Display Type: Capacitive Touch

General Specifications

Frigidaire Fit Promise: Yes

Product Weight: 300 lbs

Prop 65 Label: Yes

Warranty - Labor: 1 Year

Warranty - Parts: 1 Year

Connectivity

Wi-Fi Enabled: Yes

Controls

Control Lock: Yes

Sabbath Mode: Yes

Cooking Controls

Air Fry: Yes

Air Sous Vide: Yes

Bake: Yes

Bread Proof: Yes

Broil: Yes

Cancel: Yes

Child Lock: Yes

Clear Off: Yes

Clock: Yes

Convection Bake: Yes

Convection Roast: Yes

Cook Time: Yes

Dehydrate: Yes

Delay Clean: Yes

Delay Start: Yes

Fast Preheat: Yes

Keep Warm: Yes

Kitchen Timer: Yes

Light: Yes

My Favorite: Yes

Off: Yes

Oven Light: Yes

Perfect Turkey: Yes

Preheat: Yes

Probe: Yes

Self Clean: Yes

Set Clock: Yes

Slow Cook: Yes

Start: Yes

Start Time: Yes

Steam Bake: Yes

Steam Clean: Yes

Steam Roast: Yes

Stop: Yes

Temperature Display: Yes

Timed Bake: Yes

Timer On / Off: Yes

User Preferences: Yes

Electrical Specifications

Amps @ 240 Volts: 40 Amps

Connected Load @ 240V: 9 kW

Voltage Rating: 240 V

Cooking Controls Function

Change between Continuous Bake Setting or 12-Hour Energy Saving Feature: Yes

Delayed Bake: Yes

Program Fahrenheit or Celsius: Yes

Silent Control Panel: Yes

Timed Cooking: Yes

Oven

Bake Element: 2,500 Watts

Bake Element Pass: 8

Bake Element Type: Hidden

Broil Element: 4,000 Watts

Broil Element Pass: 6

Broil System: Yes

Cleaning System: Yes

Convection: Yes

Convection Element: 3,800 Watts

Convection Type: Total

Number of Convection Fans: 1

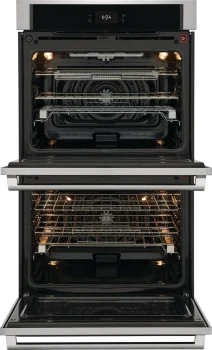

Number of Rack Positions: 6

Oven Interior Color: Midnight Black

Oven Light Quantity: 2

Oven Light Type: Halogen

Oven Light Watts: 40 Watts

Rack Position Type: Embossed

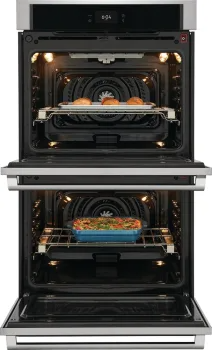

Rack Type 1: Handle Bull Nose

Rack Type 1 Quantity: 3

Rack Type 2: Glide

Rack Type 2 Quantity: 2

Rack Type 3: Air Fry Tray

Rack Type 3 Quantity: 1

Installation

Power Supply Connection Location: Top Left

Certifications and Approvals

ADA Compliant: No

Star-K Certification: Yes

CSA Listed: Yes

UL Listed: Yes

RoHS: Yes
