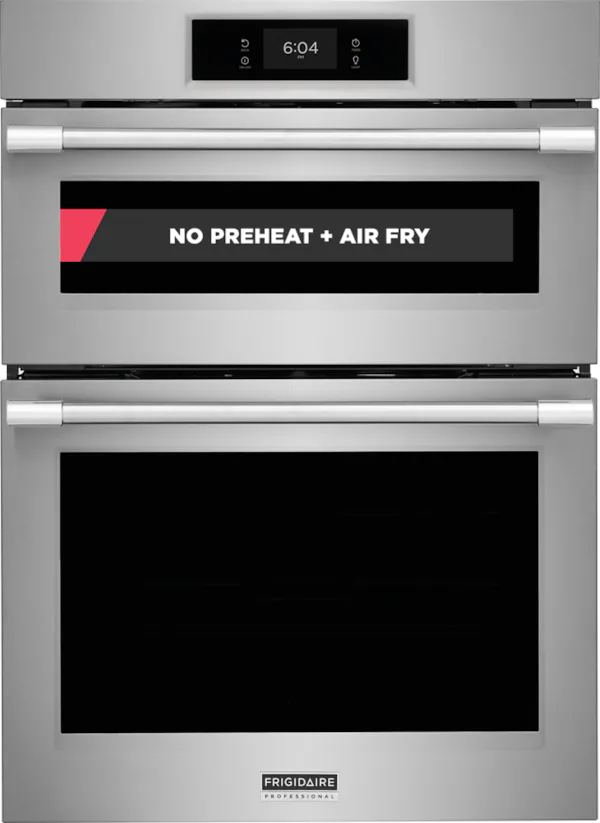

Frigidaire Professional PCWM3080AF 30" Electric Wall Oven and Microwave Combination with No Preheat + Air Fry

Our most advanced and powerful convection system, Total Convection

Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!

Start baking immediately with No Preheat

Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.

Deliver all of the flavor and none of the guilt with Air Fry.

Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.

ReadyCook™ Air Fry Tray is included

For perfectly crispy and delicious Air Fry results.

Experience a hassle-free way to cook with Slow Cook

With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.

Achieve bakery results at home with Steam Bake

With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.

Take the guesswork out of cooking with the Temperature Probe

The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached.

Peace of Mind with our Frigidaire® Fit Promise

We promise that your new 30" Frigidaire® Professional Microwave Combination Oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. 3

Fast convection cooking, right in the microwave

Get the great tasting results of the conventional convection oven, combined with the speed of microwave technology with our convection bake.

Offers two convenient cleaning options

Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.

Premium Touch Screen Control Panel

Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

Extra Large Oven Capacity

Cook more at once with our extra large, 5.3 cu.ft. capacity oven.

Better access to your meals with our Glide Rack

Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.

Smudge-Proof® Stainless Steel

Resists fingerprints and cleans easily.

Controls

Control Lock - Yes

Sabbath Mode - Yes

Cooking Controls

Air Fry - Yes

Air Sous Vide - Yes

Bake - Yes

Bake Time - Yes

Bread Proof - Yes

Broil - Yes

Cancel - Yes

Child Lock - Yes

Clear Off - Yes

Clock - Yes

Convection Bake - Yes

Convection Roast - Yes

Cook Time - Yes

Dehydrate - Yes

Delay Clean - Yes

Delay Start - Yes

Fast Preheat - Yes

Keep Warm - Yes

Kitchen Timer - Yes

Light - Yes

My Favorite - Yes

Off - Yes

Oven Light - Yes

Perfect Turkey - Yes

Preheat - Yes

Probe - Yes

Self Clean - Yes

Set Clock - Yes

Slow Cook - Yes

Start - Yes

Start Time -  Yes

Steam Bake - Yes

Steam Clean - Yes

Steam Roast - Yes

Stop - Yes

Temperature Display - Yes

Timed Bake - Yes

Timer On / Off - Yes

User Preferences - Yes

Cooking Controls Function

Change between Continuous Bake Setting or 12-Hour Energy Saving Feature - Yes

Delayed Bake - Yes

Program Fahrenheit or Celsius - Yes

Silent Control Panel - Yes

Timed Cooking - Yes

Performance Certifications and Approvals

Star-K Certification - Yes

CSA Listed - Yes

UL Listed - Yes

RoHS - Yes

Dimensions and Volume

Height - 41 9/16"

Width - 29 7/8"

Depth - 25 3/16"

Depth With Door 90° Open - 48 3/16"

Depth With Handle - 27 5/8"

Cutout Depth - 23 5/8"

Oven Interior Height - 18 1/8"

Oven Interior Width - 25 3/16"

Oven Interior Depth - 19 7/8"

Microwave Interior Height - 9 5/16"

Microwave Interior Width - 18 7/8"

Minimum Cutout Height -  40 5/8"

Microwave Interior Depth - 16 1/8"

Minimum Cutout Width - 28 1/2"

Maximum Cutout Height - 41 1/2"

Maximum Cutout Width - 29"

Microwave Capacity - 1.7 Cu. Ft.

Oven Capacity - 5.3 Cu. Ft.

Electrical Specifications

Amps @ 240 Volts - 40 Amps

Connected Load @ 240V - 7.6 kW

Minimum Circuit Required - 40 Amps

Voltage Rating - 240 V

Exterior

Smudge-Proof® - Yes

Door Swing

Drop-Down Door

Exterior Finish - Smudge-Proof® Stainless Steel

Microwave Drop Down Door - Yes

General Specifications

Frigidaire Fit Promise - Yes

Product Weight - 285 lbs

AB-1200 - Information available at frigidaire.com/en/ab1200

Prop 65 Label - Yes

Warranty – Labor - 1 Year

Warranty – Parts - 1 Year

Installation

Power Supply Connection Location - Top Left

Internal Specifications

Rack - Yes

Turntable Diameter - 14"

Turntable Material - Glass

Microwave Cooking

Microwave Cooking Power - 1000 Watts

Bacon - Yes

Beverage - Yes

Defrost - Yes

Melt / Soften - Yes

Popcorn - Yes

Reheat - Yes

Rice - Yes

Top Grill Mode - Yes

Veggies - Yes

Oven

Bake Element - 2600 Watts

Bake Element Pass - 4

Bake Element Type - Hidden

Broil Element - 4000 Watts

Broil Element Pass - 6

Broil System - Yes

Cleaning System -  Yes

Convection - Yes

Convection Element - 3800 Watts

Convection Type - Total

Number of Convection Fans - 1

Number of Rack Positions - 6

Oven Interior Color - Midnight Black

Oven Light Quantity - 2

Oven Light Type - Halogen

Oven Light Watts - 40 Watts

Rack Position Type - Embossed

Rack Type 1 - Handle

Rack Type 1 Quantity - 2

Rack Type 2 - Glide

Rack Type 2 Quantity - 1

Microwave Control Features

+ 30 Seconds - Yes - One Touch

Display

Display Interface Color - White

Display Light Color - White

Display Type - Capacitive Touch

Convection Cooking

Convection Cooking – Bake - Yes

Convection Element - 1650 Watts

Product Information

Product Line - Microwave Combination Wall Oven
