FEATURES
Wash System
3-Level
800 Series
Sensor - Clean Sensor

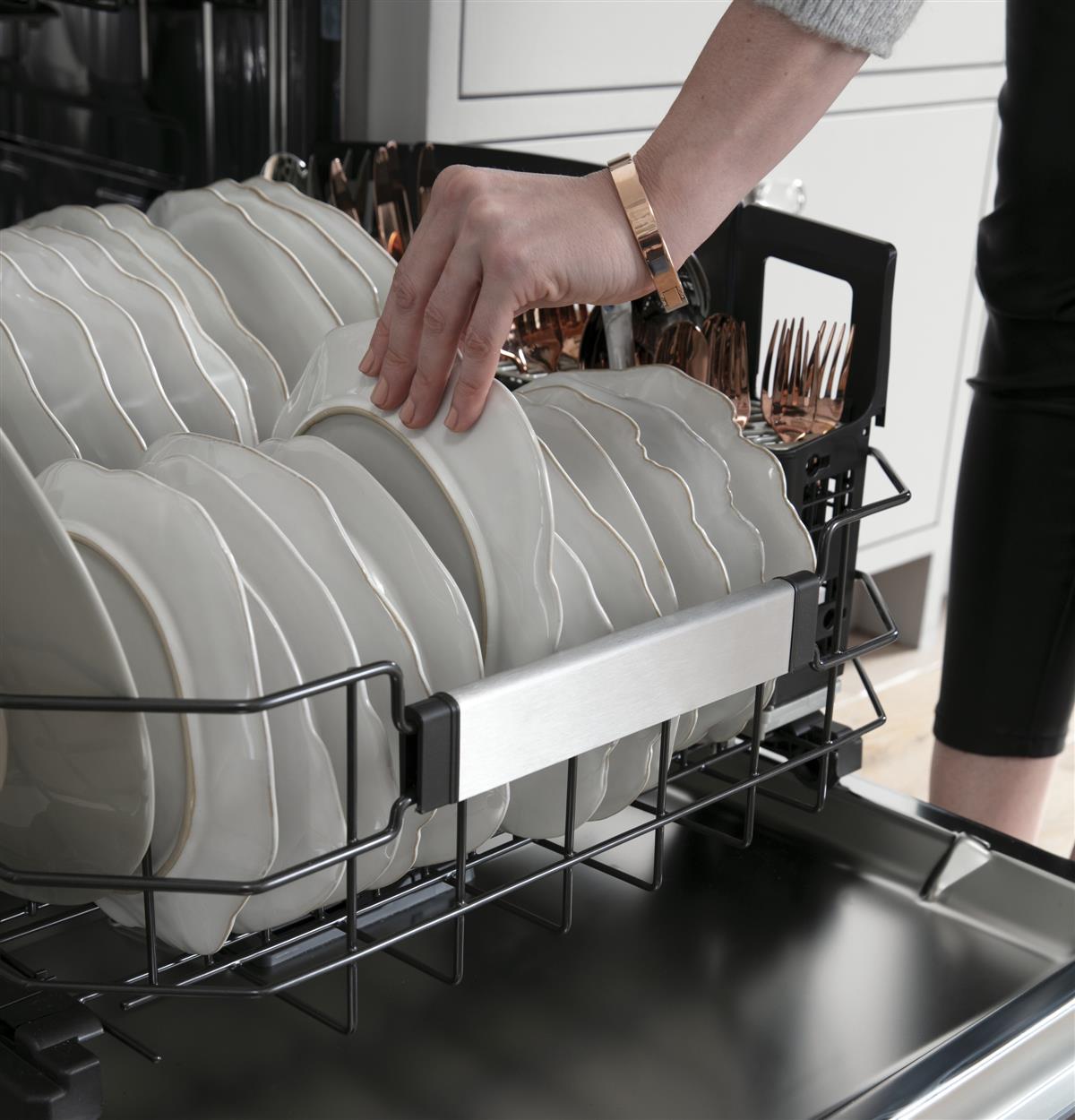

Lower Rack
1/2 fixed tines, 1/2 fold down tines
Ball-Tip Tines
Tub Type - Tall Tub
Leveling System - 3 Point Leveling
Additional Protection
Active Flood Protect
Leak Defense with Active Flood Protect
Number of Place Settings - Up to 16
Dishwasher Options
Bottle Wash
Delay Start 1-12 Hr.
Dual Convection Ultra Dry
Heated Dry Off
Hi-Temp Wash
Lock Controls
Normal Dry
Presoak + Sanitize (Certified to NSF Standard 184)
Start/Reset
Wash Zone Lower Only
Wash Zone Upper Only
Latch - Pull with Handle
Number of Options - 10
Style - Built-In Top Control
Water Filtration System - 100% Filtration with Hard Food Disposer and Removable Filter

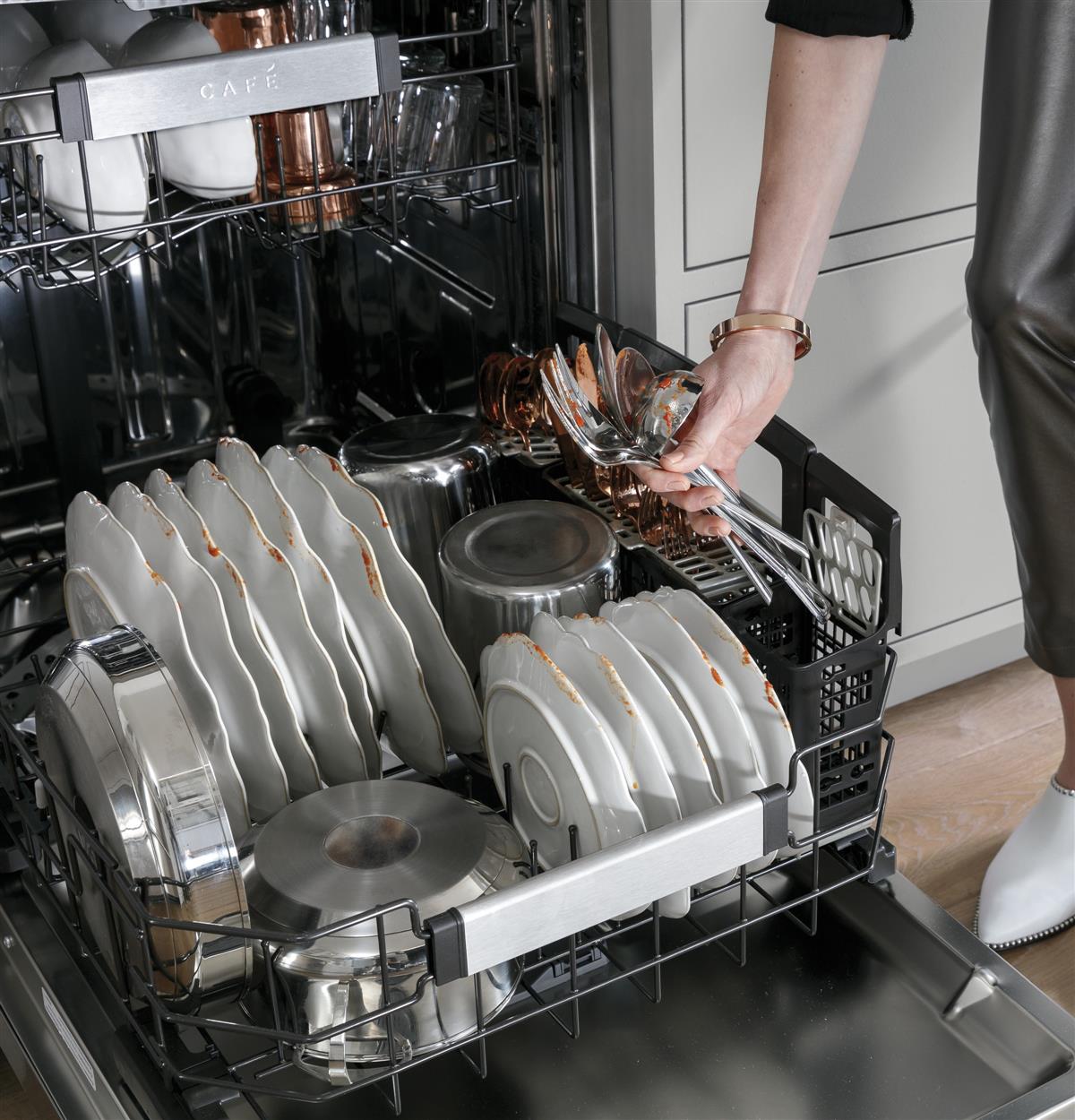

Cutlery Tray - One piece removable 3rd rack
Rack Features
2 Utility Shelves with Stem Safe and Chop-stick slots - Upper
3-Piece Silverware Basket with Cell Covers
Adjustable Upper Rack
Ball-Tipped Tines
Full Extension Slides - Upper
Racking Material - Nylon
Floor Protection - Leak Defense with Active Flood Protect - Leak Pan with Sensor
Dishwasher Cycles
Auto
China
Express
Normal
Pots
Rack Color - Black Pearl
Dispenser
Electronic Low Rinse Aid Sensor
Rinse Aid with Indicator and Adjustment
WiFi Connect - Built-In

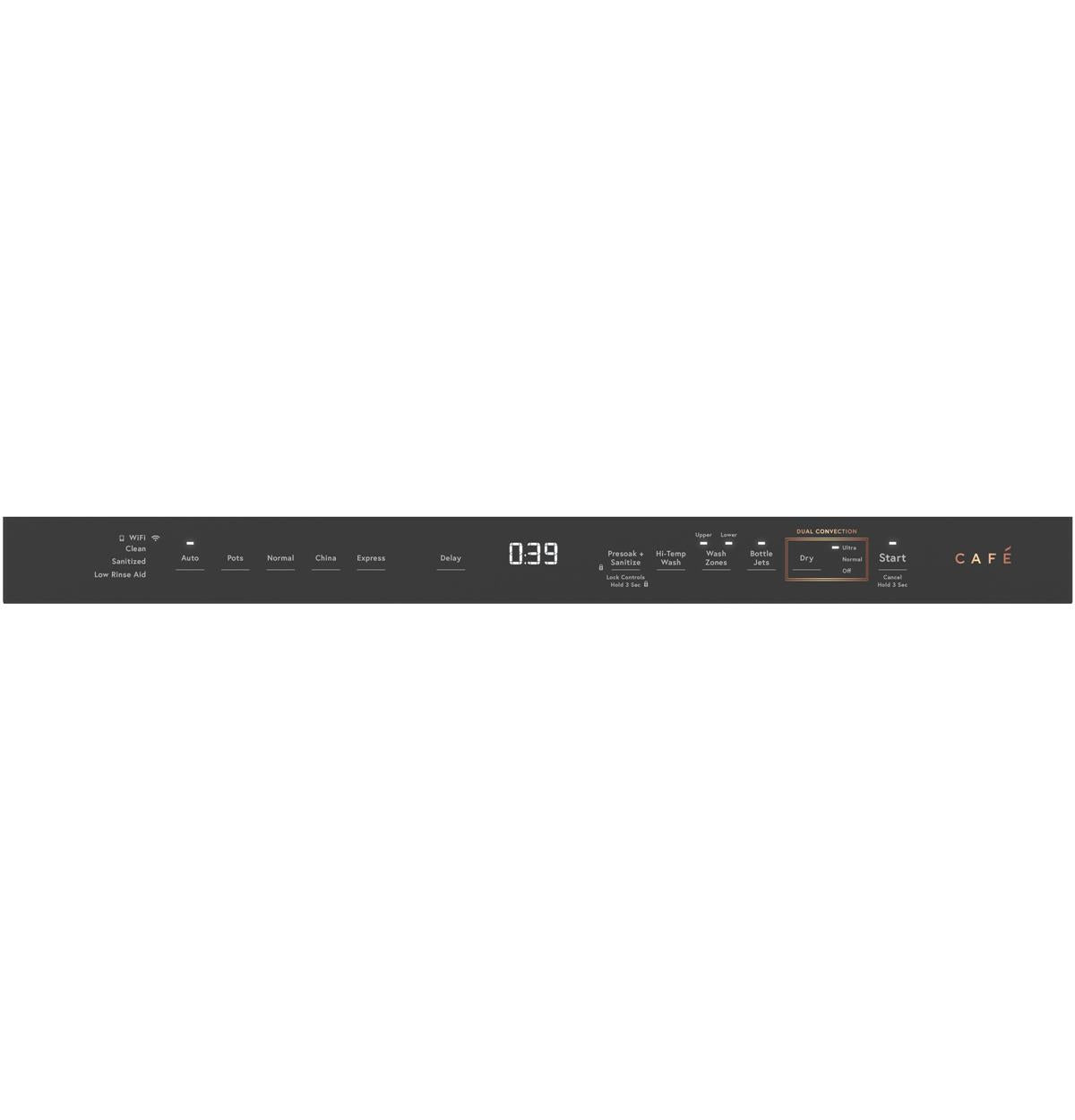

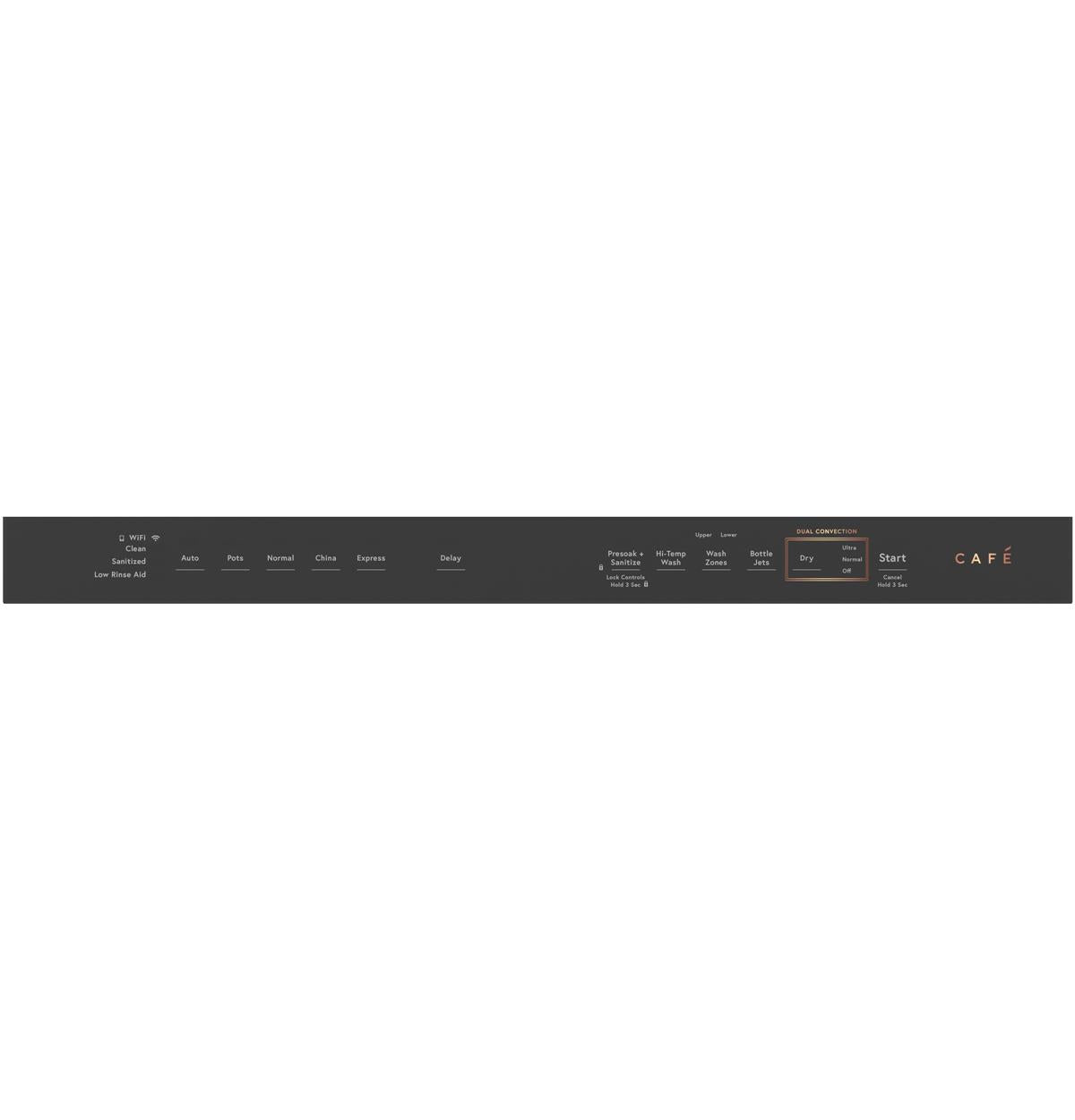

Control Type
12 Touchpads
Cap Touch Controls
Top Controls
Racking System - Full 3rd rack
Dishwasher Drying Features
Dual Convection Ultra Dry
Fan Assist Dry
Ultra/Normal/Off
Wash Arms
3 Wash Levels

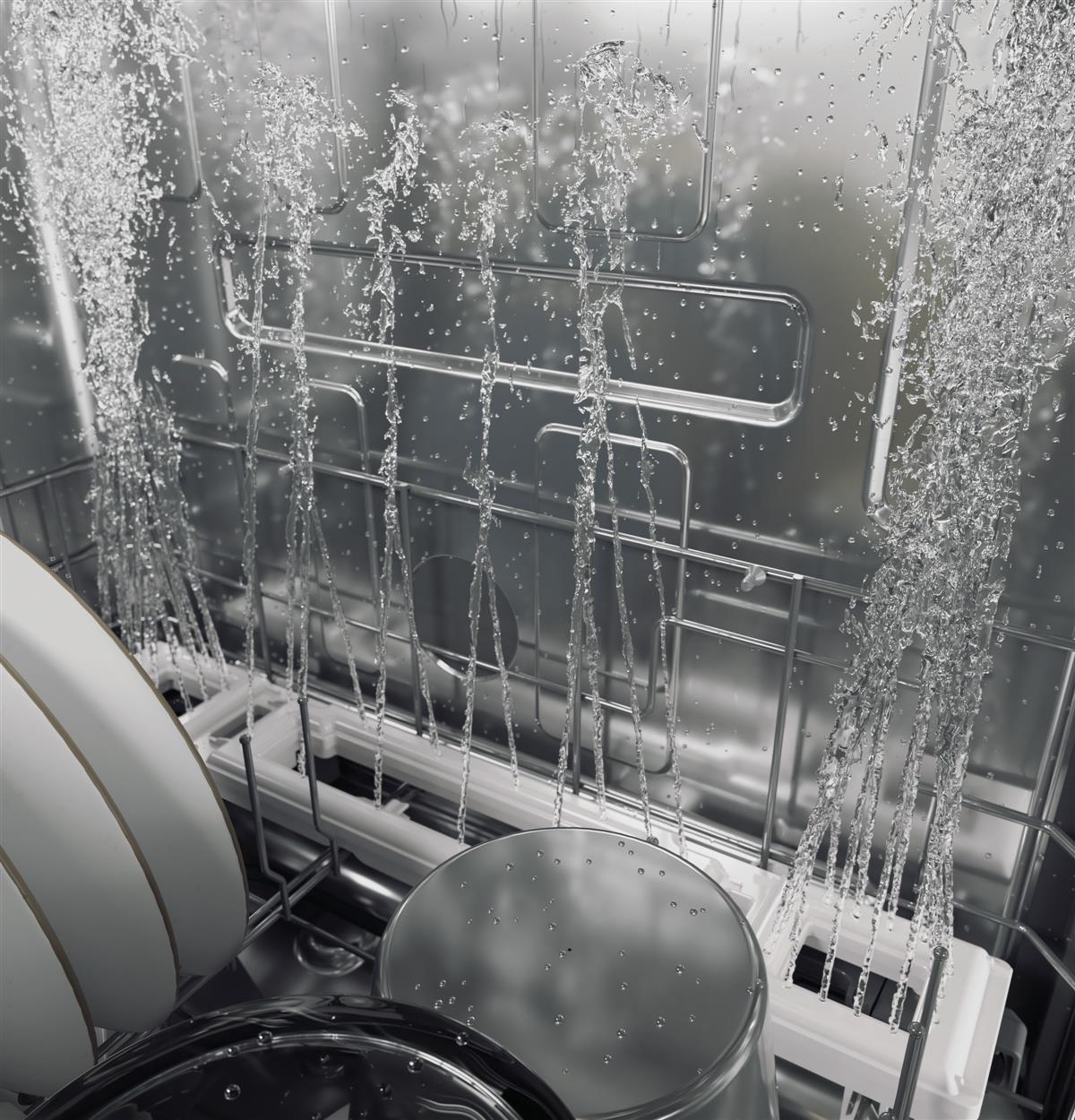

Bottle Jets

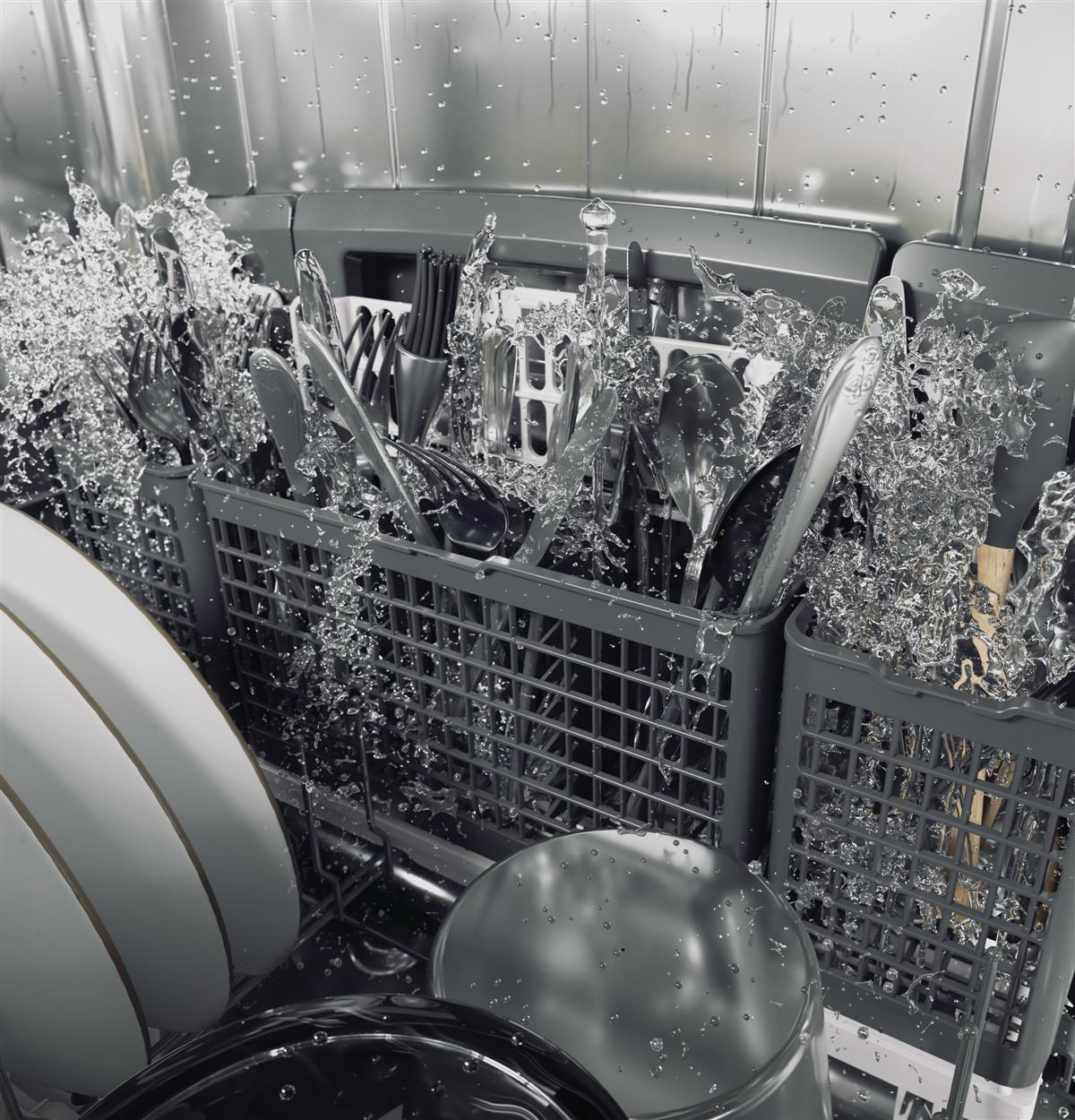

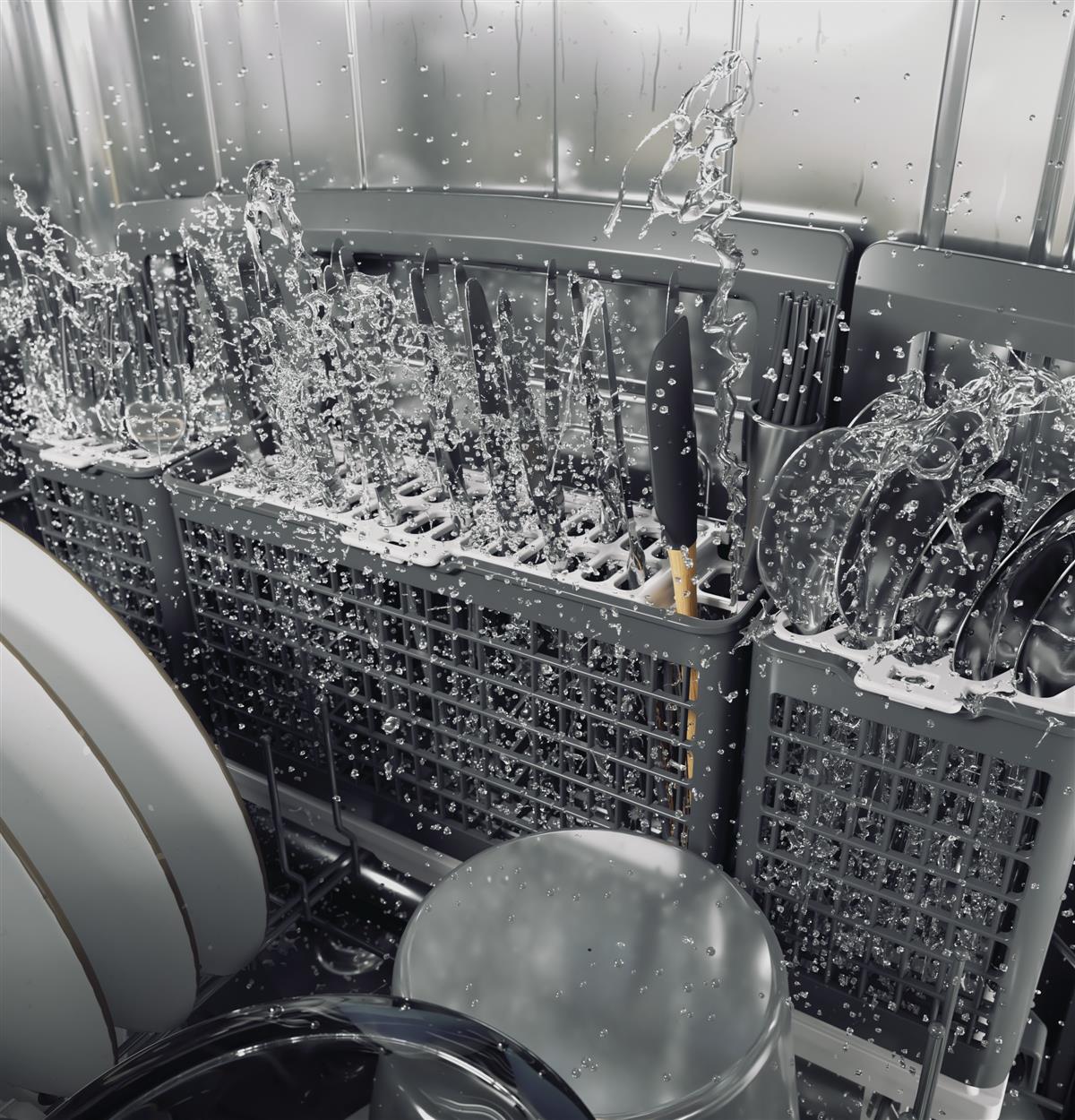

Deep Clean Silverware Jets
Jets - Variable Pressure

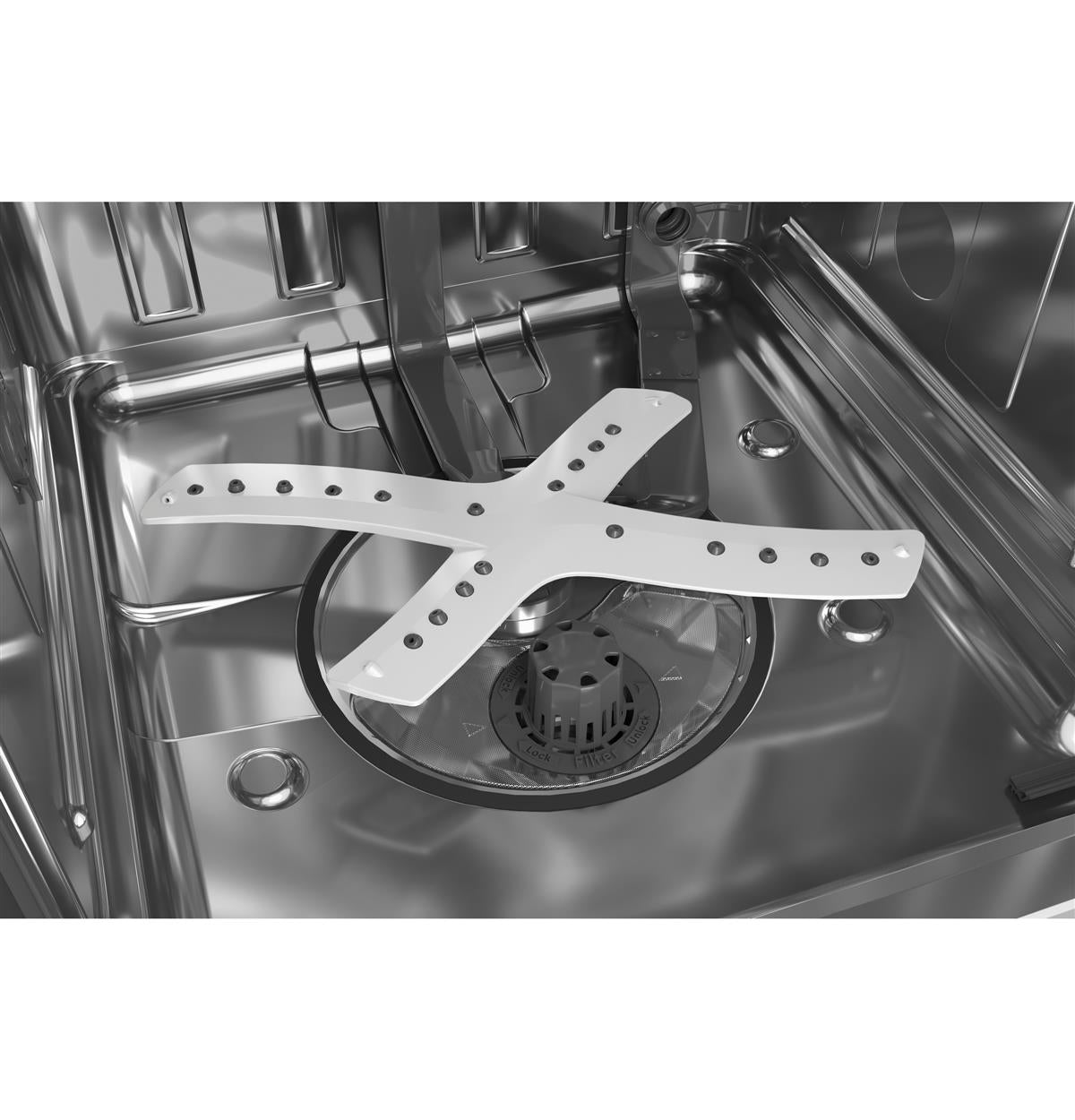

Lower- Reversing Quad Blade
Middle - Quad Blade
Wash System Features
90+ Spray Jet Wash System
Automatic HotStart
Automatic Temperature Control
Bottle Jets (4)
Deep Clean Silverware Jets
Drain Pump
Hard Food Disposer with removable filter
Hidden Heater
Quad Blade Middle Wash Arm
Reversing Quad Blade Lower Wash Arm
Side Jets
Variable Speed Dual Pumps and Motors
Exterior Style - Traditional

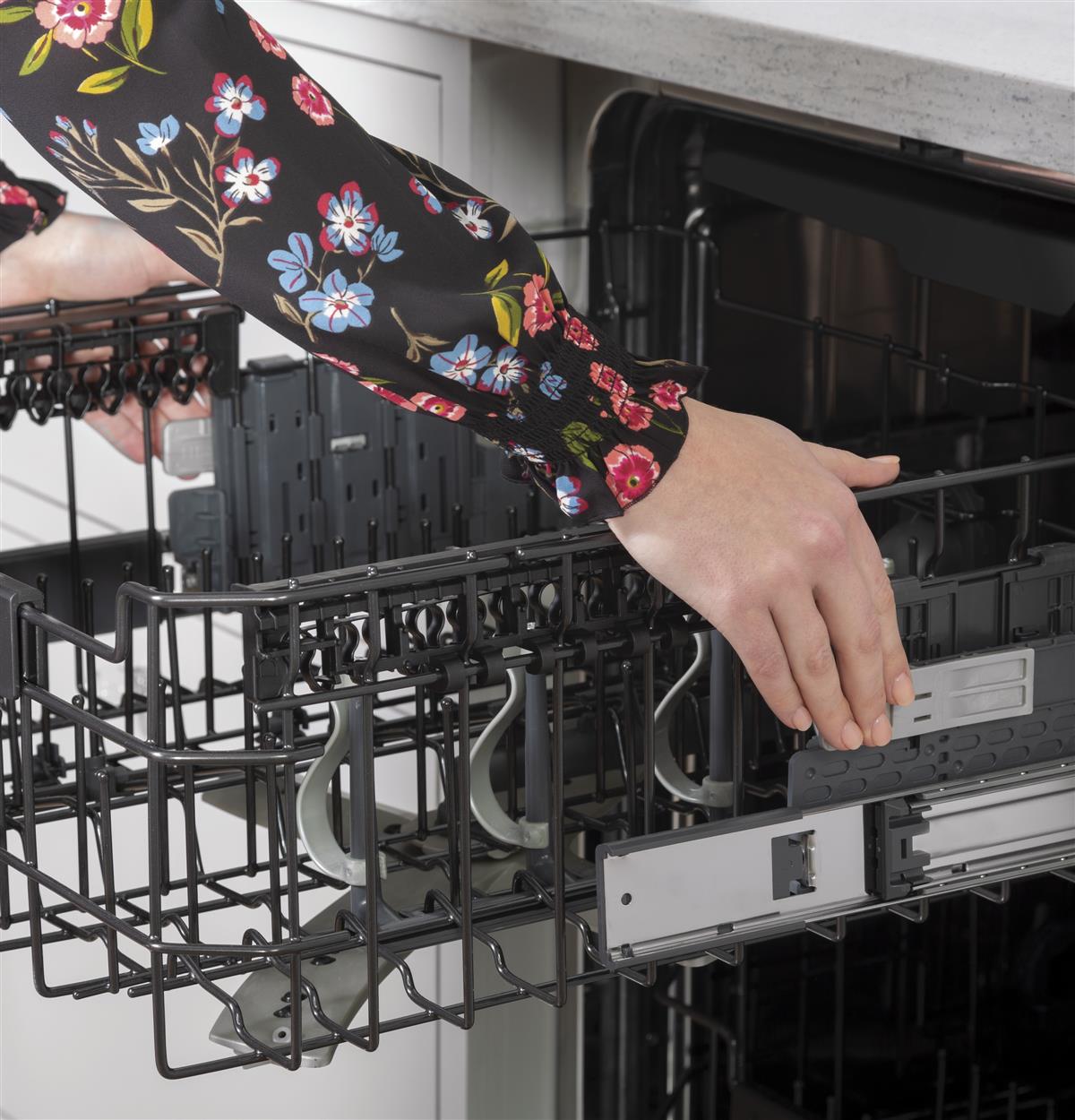

Upper Rack
1 Rack handle
1/2 fixed tines, 1/2 fold down tines
2 Stem Safe Shelves
Ball-Tip Tines
Chop stick slots
Fixed tines with Bottle Jets
Premium Height Adjustable
Dishwasher Control Features
Audible End-of-Cycle Signal
Cycle Countdown with LCD Status Center on door
Last Cycle Memory
Multi function display
Number of Cycles - 5

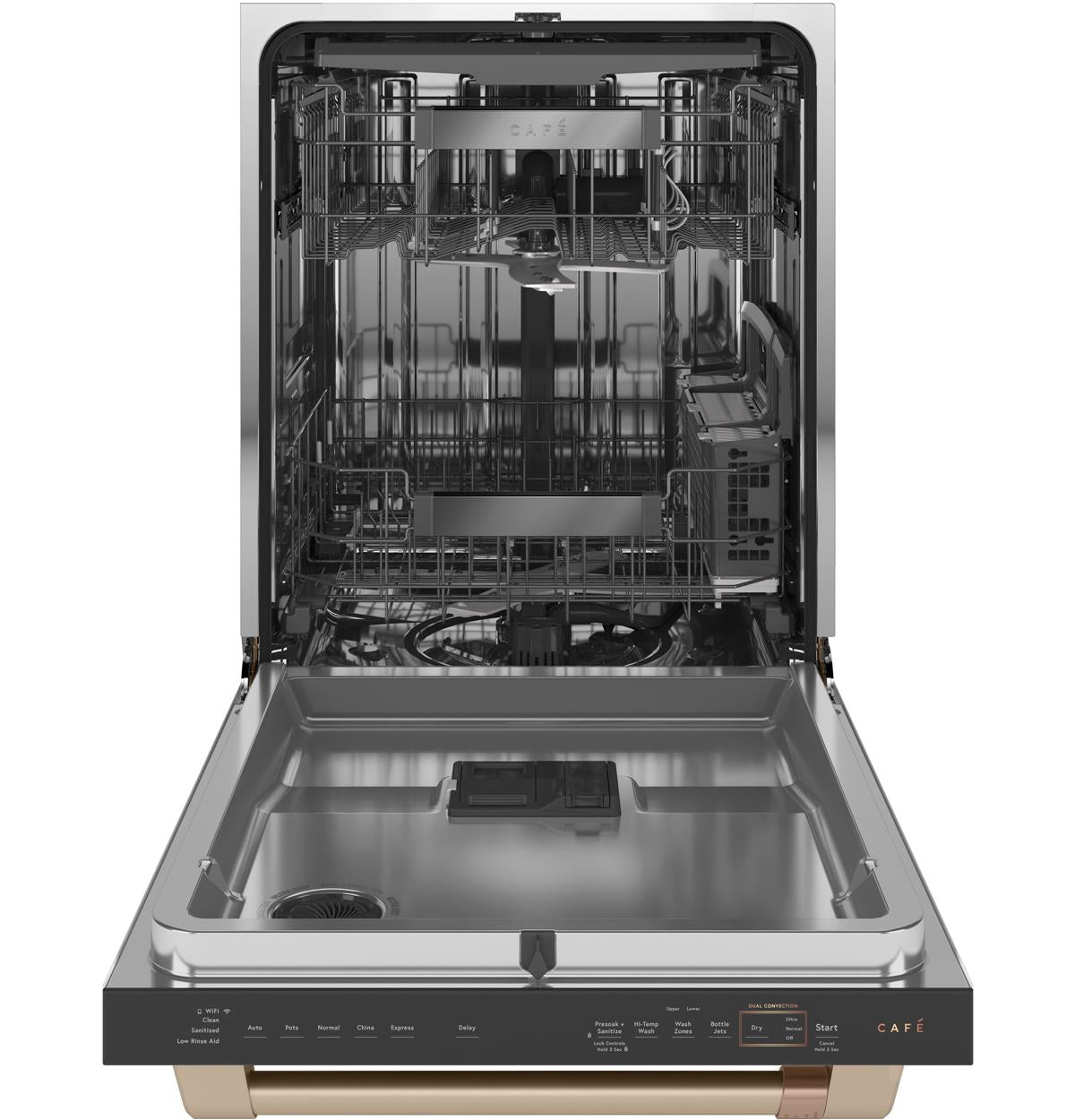

Tub and Door Liner - Stainless Steel
Showroom Power Mode - Yes

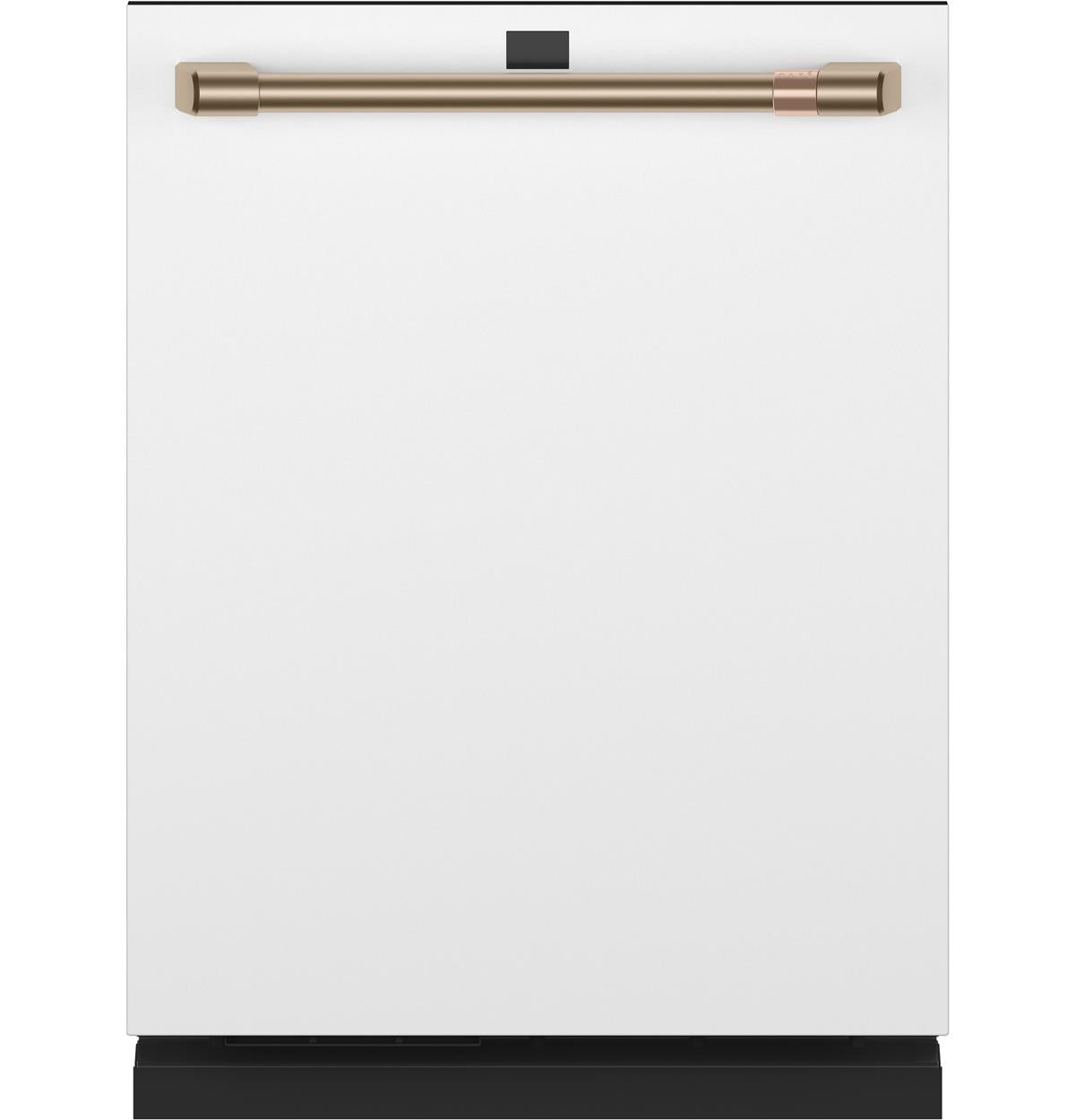

APPEARANCE
Handle - Café™
Installation
Built-Up Floor Capable
Flush Cabinet Installation
Side Installation or Top Installation Included
Handle Color - Brushed Bronze
Door Style - Long Door with Top Controls
Door Appearance - Full-length flat door
Color Appearance - Matte White
Handle Design - Customizable
POWER / RATINGS
Power Connection - Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Calrod Heater Watts - 1200/400
Volts/Hertz/Amps - 120V; 60Hz; 10.2A
ECONOMICAL / QUIET
Door Insulation
Insulation
Mastic
Quiet Package - 39 dBA
Outer Wrap
Bitumen
Full-wrap Blanket
Motor Type - Variable Speed
Quiet Features
Quiet Water Valve
Sealed Toe Kick
Tub Collar Trim
WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height - 33 3/8 in
Overall Depth - 24 in
Cabinet Width - 24 in
Net Weight - 124 lb
Overall Width - 23 3/4 in
Approximate Shipping Weight - 137 lb
Overall Height - 34 in
Overall Depth with Handle - 27 2/5 in
Height w/Legs Extended - Maximum Height - 34 5/8 in
CLAIMS & CERTIFICATIONS
California Prop 65
ENERGY STAR® Qualified
NSF Certified
WARRANTY
Labor Warranty - Limited 1-year entire appliance
Parts Warranty - Limited 1-year entire appliance
ACCESSORIES
Optional Kits
CXADTH1PMBT Brushed Black
CXADTH1PMCU Brushed Copper
CXADTH1PMSS Brushed Stainless
