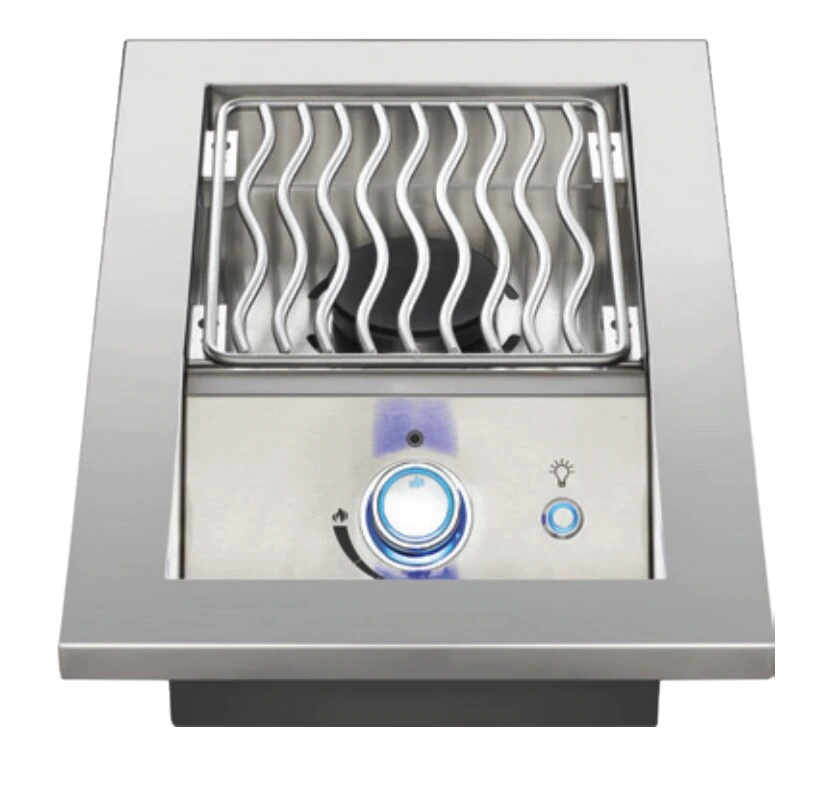

Create sides and sauces while the main grill is in use with this 10-inch, drop-in, Range Burner. Instantly ignite these burners single-handed with the JETFIRE™ Ignition System.
SINGLE RANGE BURNER
WIDE RANGE OF POSSIBILITIES
The side burner is perfect for making sides and sauces while grilling on the main burners.
STAINLESS STEEL ICONIC WAVE™ COOKING GRIDS
ICONIC SEAR MARKS
The 7.5mm thick, iconic wave shape provides even heat transfer and prevents smaller foods from falling.
NIGHT LIGHT™ CONTROL WITH SAFETYGLOW
NEVER BE LEFT IN THE DARK
Never accidentally leave the gas on and know which burners are lit for multi-zone grilling.
INSTANT JETFIRE™ IGNITION
This innovative and easy to use ignition system shoots a jet of flame to light each gas burner individually for quick start-ups.
STAINLESS STEEL PROTECTIVE COVER
Protect the Infrared Burners with a stylish, flush top cover to keep the elements out.
Cut-out height of cavity for appliance (min): 6 inches & 152 mm
Cut-out width of cavity for appliance (min - max): 10-12 inches & 254 - 305 mm
Cut-out depth of cavity for appliance (min - max): 18 3/4 - 20 3/4 inches & 476 - 527 mm
Total cooking area (squared): 93 inches & 605 cm
Primary cooking area (squared): 93 inches & 605 cm
Warming rack area (squared): -
Primary cooking area depth: 10 3/8 inches & 26.4 cm
Primary cooking area width: 9 inches & 22.9 cm
Type of flare adaptor: 1/2" 450 flare
Gas requirements — Propane or Natural Gas: LPG / NAT
Operational pressure (WATER COLUMN): 11"/7"
supply pressure (WATER COLUMN): 11"/7"
Number of main tube burners: 1
Main burner BTU's: 10,000
Total BTU's: 10,000
Knob lighting power supply: GFCI: 110 - 120 VAC 15A 50-60 HZ
Rotisserie power supply GFCI: 110 - 120 VAC 50-60 HZ
