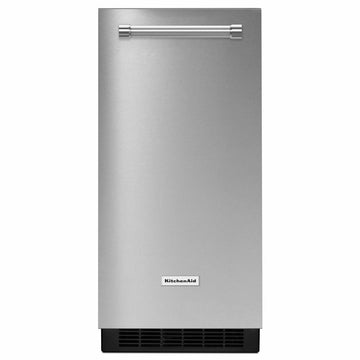

KitchenAid KUIX535HPS 15-Inch Automatic Ice Maker with PrintShield Finish In Stainless Steel

Fully Flush Installation with Articulating Hinge
Allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.

Self-Cleaning Cycle
Makes routine maintenance easy using a "clean cycle" and Affresh® ice maker cleaner.

PrintShield™ Finish
Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

Filter-Ready
Provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

Additional Features
CLEAR ICE TECHNOLOGY
Provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.

HOLDS 25 POUNDS OF ICE
Ensures a generous supply of fresh ice is conveniently at your fingertips.

REVERSIBLE DOOR
Offers flexible installation options by allowing hinge installation on either side of the door.

Dimensions
Cabinet Width	14-7/8 in
Cutout Depth	25.0 in
Cutout Height	34-1/2 in
Cutout Width	15.0 in
Depth Closed Excluding Handles	24.0 in
Depth Closed Including Handles	25-3/8 in
Depth Excluding Doors	22-1/8 in
Depth With Door Open 90 Degree	39-1/2 in
Height To Top Of Cabinet	33-5/8 in
Height To Top Of Door Hinge	34-1/16 in
Appearance
Cabinet Finish	Textured
Handle Location	Horizontal
Handle Material	Metal
Reversible Door	Yes
Controls
Defrost Type	Automatic Defrost
Ice Maker On/Off	Yes
Location of Controls	Interior Up Front
Filter Details
Water Filter Indicator/Reset	Yes
Water Filter Location	Interior
Details
Ambient Temperature Range	55F to 110F
Drain Connection	Rear Access 5/8"" OD
Drain Pump	Pump Included
Ice Capacity Storage	25
Interior Light	LED
Certifications
Energy Star® Qualified	No
Ice Maker Features
Selections	Ice Scoop, Max Ice, Articulating Hinge, Clear Ice Technology, True Flush Installable, Easy Access Filter Install
Filters
Water Filter Part Number	F2WC9I1
