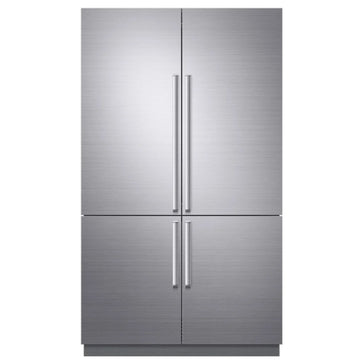

Dacor DRF487500AP 48-Inch Panel-Ready Built-In French Door Refrigerator

The Dacor DRF487500AP is a premium 48-inch built-in French door refrigerator designed to integrate seamlessly with custom kitchen cabinetry. Its panel-ready exterior creates a clean, fully integrated appearance, while the generous 27.7 cu. ft. total capacity provides flexible storage for fresh and frozen foods.

The four-door configuration features two upper refrigerator doors and counter-height vertical freezer doors below. A convertible FreshZone+™ compartment can be switched between refrigerator and freezer operation, allowing the storage layout to adapt to changing household needs.

Inside, SteelCool™ stainless steel-wrapped surfaces and seamless 3D Lighting create a bright, refined interior. The refrigerator also includes an internal filtered-water dispenser, an automatically refilling water pitcher and dual ice makers that produce standard ice and large, slow-melting Whisky Ball Ice.

Key Features

• Panel-ready design: Accepts custom cabinetry panels for a seamless, built-in appearance.
  27.7 cu. ft. total capacity: Offers spacious refrigerator and freezer storage.
• FreshZone+™ convertible compartment: Converts between refrigerator and freezer operation for greater flexibility.
• FreshZone™ drawer: Full-width temperature-controlled drawer for meat, fish, deli items, chilled beverages and controlled defrosting.
• Dual ice makers: Produces standard ice cubes and large Whisky Ball Ice for entertaining.
  AutoFill Water Pitcher: Automatically refills with filtered water and can be used to infuse water with fruit or other flavours.
• Internal water dispenser: Provides filtered water while maintaining the clean panel-ready exterior.
• Precise Cooling Technology: Digital inverter technology helps maintain consistent temperatures with minimal fluctuation.
• SteelCool™ interior: Stainless steel-wrapped interior surfaces help create a premium appearance.
• Seamless 3D Lighting: Brightly illuminates the refrigerator interior.
• Hidden touch controls: The control display remains discreet until activated.
• Power Cool and Power Freeze: Quickly lowers refrigerator or freezer temperatures when needed.
• ENERGY STAR® certified: Designed for efficient everyday operation.
• Door alarm: Alerts users when a door has been left open.

Specifications

Model: DRF487500AP/DA
Product type: Built-in French door refrigerator
Installation style: Built-in, counter-depth
Exterior finish: Panel ready
Door configuration: Four-door French door
Total capacity: 27.7 cu. ft.
Refrigerator capacity: 19.7 cu. ft.
Freezer capacity: 8.0 cu. ft.
Water dispenser: Internal filtered-water dispenser
Water pitcher: Automatic-fill filtered-water pitcher
Ice system: Dual ice maker with standard ice and Whisky Ball Ice
FreshZone™ drawer: Yes
Convertible FreshZone+™ compartment: Yes
Precise Cooling Technology: Yes
Hidden touch control panel: Yes
ENERGY STAR® qualified: Yes
Annual energy consumption: 629 kWh
Electrical requirement: 115V, 60Hz, 6A
Manufacturer’s warranty: Two years parts and labour
Temperature Ranges
Refrigerator: 1°C to 7°C
Power Cool setting: 1°C
FreshZone™ drawer: 3°C, 1°C or -1°C
Freezer: -15°C to -23°C
Power Freeze setting: -23°C
Temperature fluctuation: Approximately ±0.5°C

Dimensions

Overall width: 47 1/4"
Overall height: 83 3/8"
Overall depth: 23 13/16"
Standard required cutout: Approximately 48"W × 84"H × 25"D

Although the refrigerator is marketed as a 48-inch model, its actual appliance width is 47 1/4 inches. Cabinet openings, custom panels, ventilation clearances and utility connections should be confirmed using the official Dacor installation guide before cabinetry is manufactured.

Available Accessories

Graphite Contemporary panel, handle and kickplate kit: RAT48AMAAMS/DA
Silver Contemporary panel, handle and kickplate kit: RAT48AMAASR/DA
Graphite Contemporary handle kit: ADRF48MHAAMS
Silver Contemporary handle kit: DRF48MHAASR
Replacement water filter: RAC00WFAAAA
Replacement air-filter set: AC00DFAAAA/DA

Custom cabinetry panels, Dacor stainless-steel panel kits and handles are sold separately unless specifically included by the retailer.
